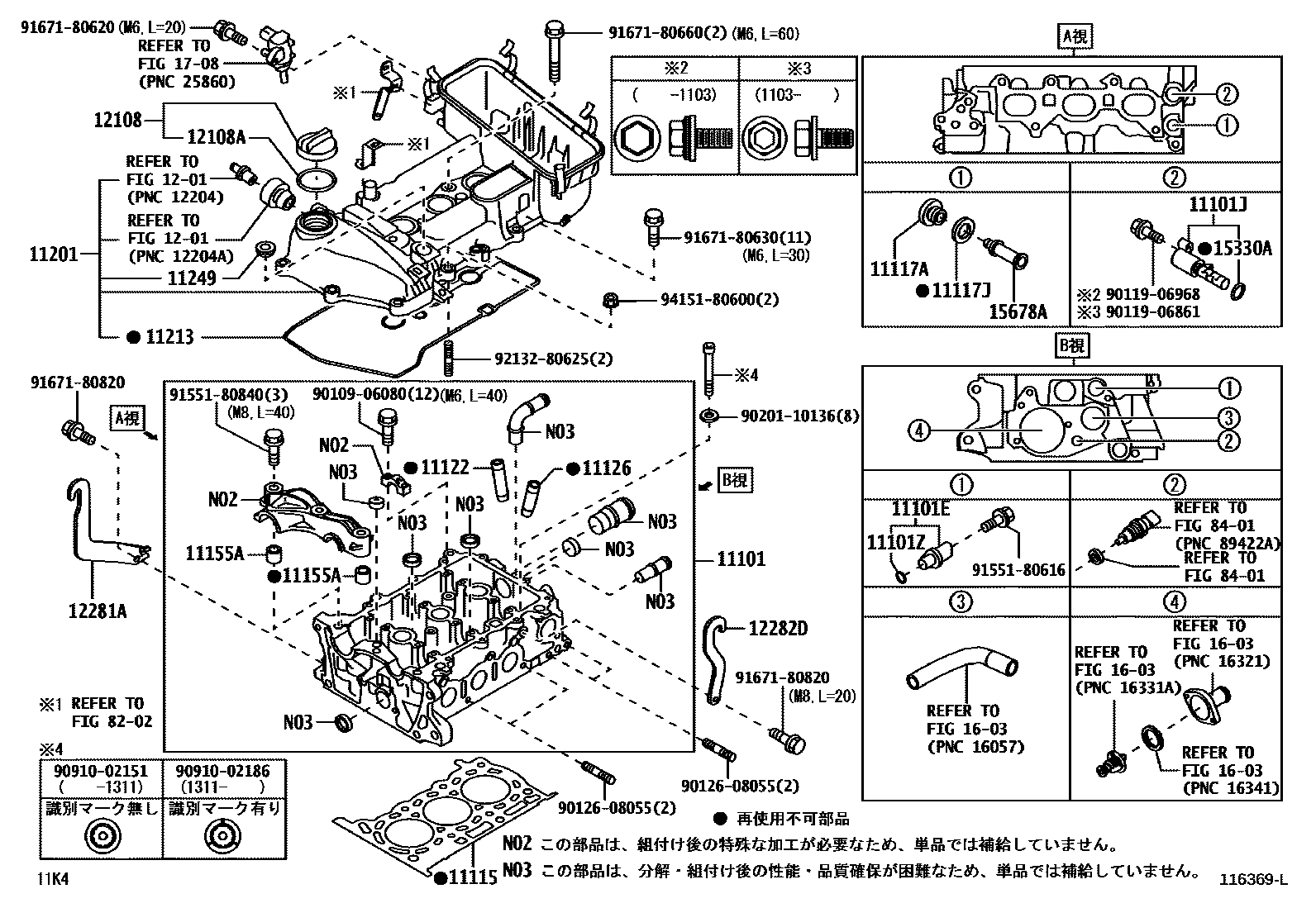

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-40031i1KRFE..KGC3#201002-201404

main11101-40050i1KRFE..KGC3#201404

main11101-49465i1NRFE..NGC30201002-201404

sub11101-49466

11101ESENSOR, CAM POSITION

main19311-B1010i1KRFE..KGC3#201404

sub19311-B1011

main90919-05024i1KRFE..KGC3#201002-201404

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-40020i1KRFE..KGC3#201002-201404

main15330-40030i1KRFE..KGC3#201404-201509

sub15330-40031

main15330-40031i1KRFE..KGC3#201510

main15330-47010i1NRFE..NGC30201002-201404

main15330-47020i1NRFE..NGC30201002-201404

11101ZO RING, CAM POSITION SENSOR

main90301-14016i1KRFE..KGC3#201002-201604

11115GASKET, CYLINDER HEAD

main11115-40060i1KRFE..KGC3#201002-201404

main11115-40080i1KRFE..KGC3#201404

main11115-47050i1NRFE..NGC30201002-201404

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14013i1KRFE..KGC3#201002-201404

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1KRFE..KGC3#201002-201404

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1KRFE..KGC3#201002-201404

main11122-31041i1NRFE..NGC30201002-201404

sub11122-47010

main11123-21010i1KRFE..KGC3#201002-201404

main11123-31041i1NRFE..NGC30201002-201404

sub11123-47010

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1KRFE..KGC3#201002-201404

main11122-31041i1NRFE..NGC30201002-201404

sub11122-47010

main11123-21010i1KRFE..KGC3#201002-201404

main11123-31041i1NRFE..NGC30201002-201404

sub11123-47010

11155APIN, RING W/HEAD

main90253-11004i1NRFE..NGC30201002-201404

main90253-11005i1KRFE..KGC3#201002-201404

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-47070i1NRFE..NGC30201002-201005

sub11201-47071

main11201-47071i1NRFE..NGC30201005-201107

sub11201-47072

main11201-47072i1NRFE..NGC30201108-201407

sub11201-47073

main11201-47073i1NRFE..NGC30201407

main11210-40130i1KRFE..KGC3#201002-201404

main11210-40150i1KRFE..KGC3#201404

sub11210-40151

11213GASKET, CYLINDER HEAD COVER

main11213-40030i1KRFE..KGC3#201002-201404

main11213-40050i1KRFE..KGC3#201404

sub11213-40051

main11213-47020i1NRFE..NGC30201002-201404

11249GROMMET, CYLINDER HEAD COVER

main90044-80530i1KRFE..KGC3#201002-201404

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i1KRFE..KGC3#201002-201404

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1KRFE..KGC3#201002-201404

12281AHANGER, ENGINE, NO.1

main12281-40032i1KRFE..KGC3#201002-201404

main12281-47022i1NRFE..NGC30201002-201311

sub12281-47023

main12281-47023i1NRFE..NGC30201312-201404

12282DHANGER, ENGINE, NO.2

main12282-40010i1KRFE..KGC3#201002-201404

main12282-47010i1NRFE..NGC30201002-201404

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90043-01262i1KRFE..KGC3#201002-201604

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1KRFE..KGC3#201002-201404

main15678-31020i1NRFE..NGC30201401-201404

1603

1708

8202

8401

9010906080

main90109-06080

9011906861

main90119-06861

9011906968

main90119-06968

9012608055

main90126-08055

9020110136

main90201-10136

9091002151

main90910-02151

9091002186

main90910-02186

9155180616

main91551-80616

9155180840

main91551-80840

9167180620

main91671-80620

9167180630

main91671-80630

9167180660

main91671-80660

9167180820

main91671-80820

9213280625

main92132-80625

9415180600

main94151-80600

39 parts on this diagram · 4 diagrams in section
