SHORT BLOCK ASSEMBLY

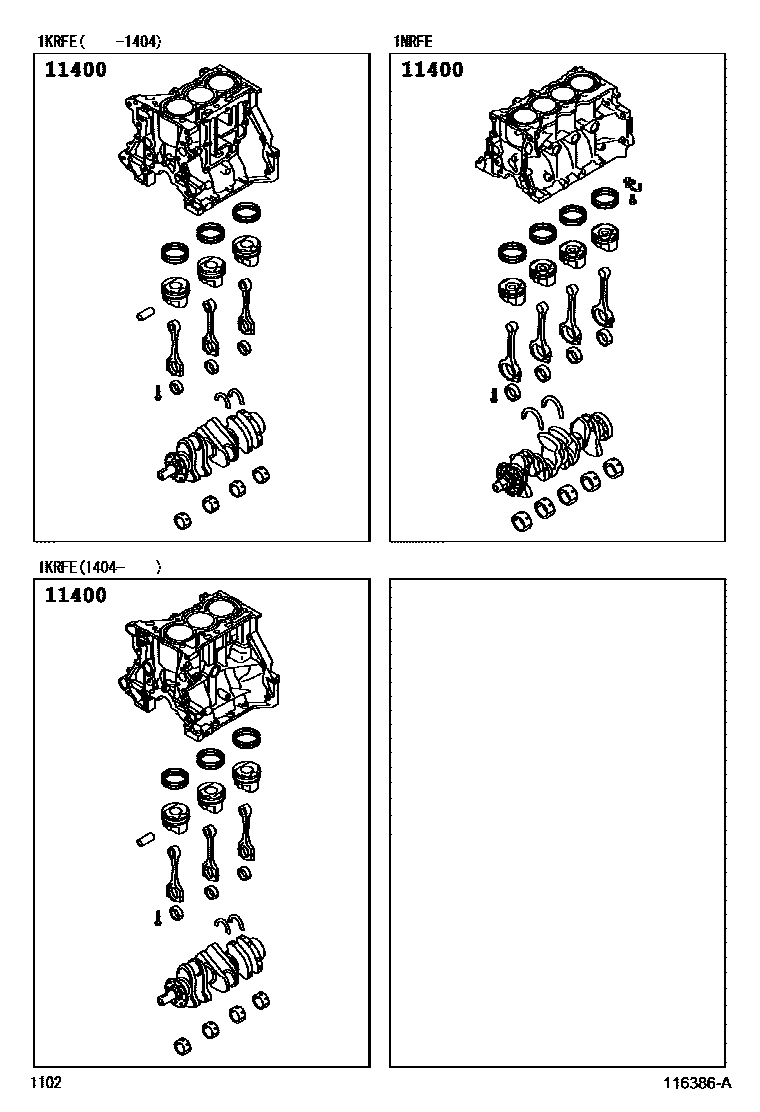

Parts diagram

11400BLOCK ASSY, SHORT

main11400-47030i201206-201301

main11400-47031i201301-201304

main11400-47150i201404

main11400-B1011i201206-201310

main11400-B1016i201311-201312

main11400-B1017i201312-201404

main11400-B1710i201404

1 parts on this diagram · 1 diagram in section
