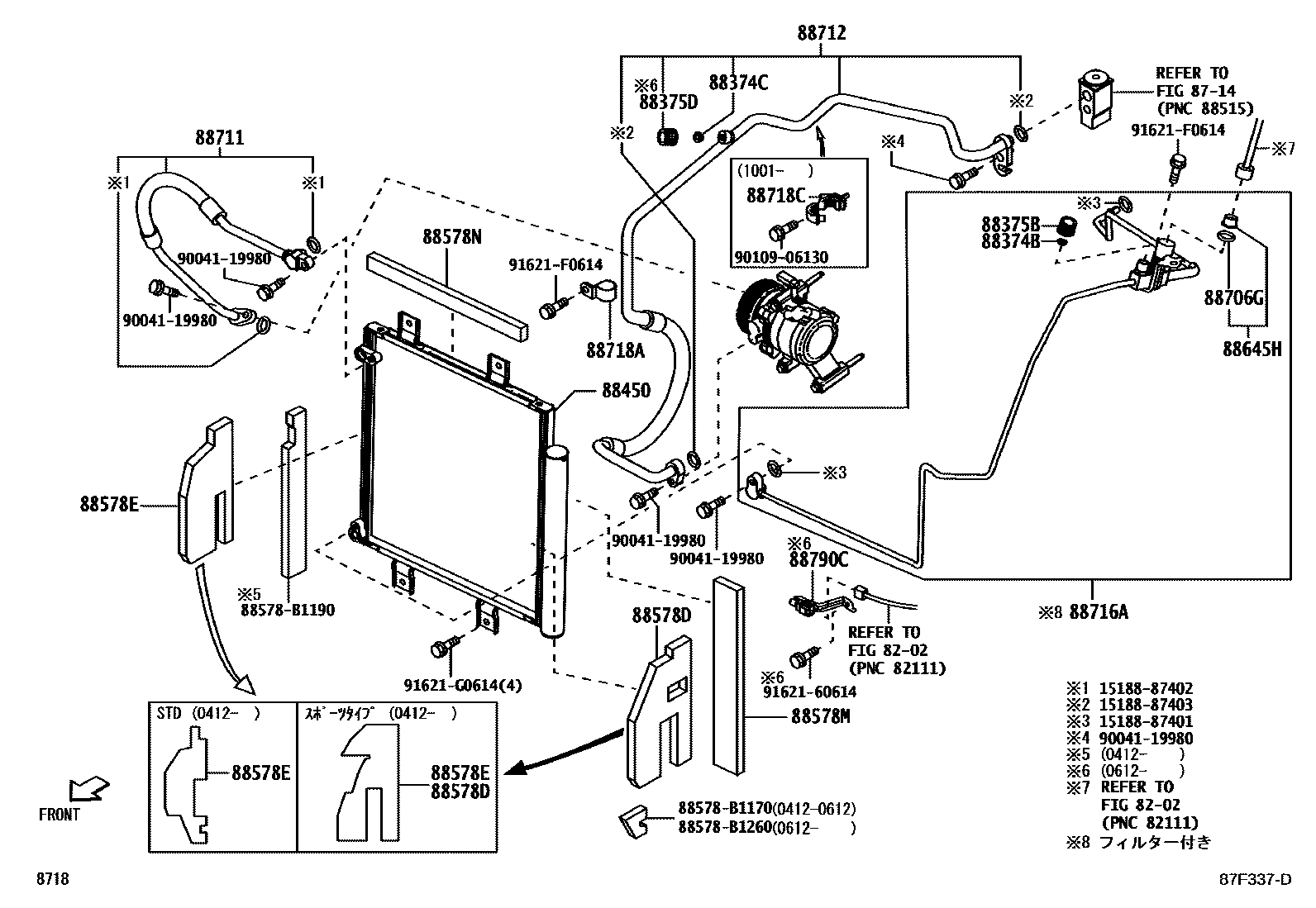

HEATING & AIR CONDITIONING - COOLER PIPING

8202WIRING & CLAMP

→ Go to FIG 82-02

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

88374BVALVE, SERVICE, NO.1

main88374-87601iKGC1#,QNC10200405-201002

88374CVALVE, SERVICE, NO.2

main88374-87601iQNC10200405-201002

88375BCAP, SERVICE VALVE, NO.1

main88375-87603iKGC1#,QNC10200405-201002

88375DCAP, SERVICE VALVE, NO.2

main88375-87601iQNC10200405-201002

88450CONDENSER ASSY, W/RECEIVER

main88450-B1010iKGC1#,QNC10200405-200411

main88450-B1030iKGC1#,QNC10200412-201002

88578DPACKING, COOLER PIPE, NO.1

main88578-B1020iKGC1#,QNC10..G,X200405-200612

main88578-B1080iQNC10..RACY200412-201002

main88578-B1240iKGC15,QNC10..G,X200612-201002

main88578-B1270iKGC10..RACY200612-201002

main88578-B1280iKGC10..X200612-201002

88578EPACKING, COOLER PIPE, NO.2

main88578-B1010iKGC1#,QNC10200405-200412

main88578-B1070iQNC10..RACY200412-201002

main88578-B1150iKGC1#,QNC10..G,X200412-200612

main88578-B1250iKGC1#,QNC10..G,X200612-201002

88578MPACKING, COOLING PIPE, NO.3

main88578-B1030iKGC1#,QNC10200405-201002

88578NPACKING, COOLING PIPE, NO.4

main88578-B1040iKGC1#,QNC10200405-200411

main88578-B1160iKGC1#,QNC10200412-201002

88645HSWITCH, PRESSURE NO.1

main88645-87602iKGC1#,QNC10200405-201002

88706GRING, O(FOR LIQUID TUBE)

main15188-B5090iKGC1#,QNC10200405-201002

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B1010iKGC1#200405-201002

main88711-B1020iQNC10200405-200411

main88711-B1050iQNC10200412-201002

main88711-B1080iKGC1#..RACY200612-201002

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B1010iKGC1#200405-200411

main88712-B1020iQNC10200405-200411

main88712-B1050iKGC1#200412-201002

main88712-B1060iQNC10200412-200612

main88712-B1120iQNC10200612-200706

main88712-B1130iQNC10200706-201001

main88712-B1210iQNC10201001-201002

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-B1030iKGC1#,QNC10200405-200411

main88716-B1050iKGC1#,QNC10200412-201002

main88716-B1130iKGC10200612-201002

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-B1010iQNC10200405-200411

main88718-B1020iKGC1#200405-200412

main88718-B1030iQNC10200412-201002

main88718-B1040iKGC1#200412-201002

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-B1080iQNC10201001-201002

88790CTHERMISTOR ASSY

main88790-B1030iKGC10..X200612-201002

main88790-B1040iKGC10..RACY200612-201002

1518887401GASKET, OIL PUMP

main15188-87401

1518887402GASKET, OIL PUMP

main15188-87402

1518887403GASKET, OIL PUMP

main15188-87403

88578B1170PAKING, COOLER AIR DUCT

main88578-B1170

88578B1190PAKING, COOLER AIR DUCT

main88578-B1190

88578B1260PAKING, COOLER AIR DUCT

main88578-B1260

9004119980

main90041-19980

9010906130

main90109-06130

9162160614

main91621-60614

91621F0614

main91621-F0614

91621G0614

main91621-G0614

30 parts on this diagram · 1 diagram in section
