NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86050BANTENNA ASSY, TELEVISION

main86050-B1010iKGC15,QNC10..G,RACY200405-200612

main86050-B1020iKGC1#..RACY,X; QNC10;KGC15..G200612-201002

86120LRECEIVER ASSY, NAVIGATION

main86100-52020iKGC15,QNC10..G,RACY200405-200511

main86100-52021iKGC15,QNC10..G,RACY200511-200608

main86100-52022iKGC15,QNC10..G,RACY200609-200612

main86100-B1012iKGC1#..RACY,X200612-200703

main86100-B1013iKGC1#..RACY,X200704-200708

main86100-B1014iKGC1#..RACY,X200709-200803

main86100-B1015iKGC1#..RACY,X200804-200808

main86100-B1016iKGC1#..RACY,X200809-200904

main86100-B1017iKGC1#..RACY,X200905-200908

main86100-B1018iKGC1#..RACY,X200909-201002

main86100-B4022iQNC10;KGC15..G200612-200703

main86100-B4023iQNC10;KGC15..G200704-200708

main86100-B4024iQNC10;KGC15..G200709-200803

main86100-B4025iQNC10;KGC15..G200804-200808

main86100-B4026iQNC10;KGC15..G200809-200904

main86100-B4027iQNC10;KGC15..G200905-200908

main86100-B4028iQNC10;KGC15..G200909-201002

main86120-B1010iKGC15,QNC10..G,RACY200405-200511

86807DISC KIT, CD-ROM

main86807-12030iKGC1#,QNC10200405-200412

main86807-12031iKGC1#,QNC10200412-200511

main86807-12032iKGC1#..X200511-200603

main86807-12033iKGC1#..X200604-200608

main86807-B1030iKGC1#..X200609-200612

86860ANTENNA ASSY, NAVIGATION

main86860-B1020iKGC1#..X200405-200410

9004159354

main90041-59354

9015350010

main90153-50010

9326915008

main93269-15008

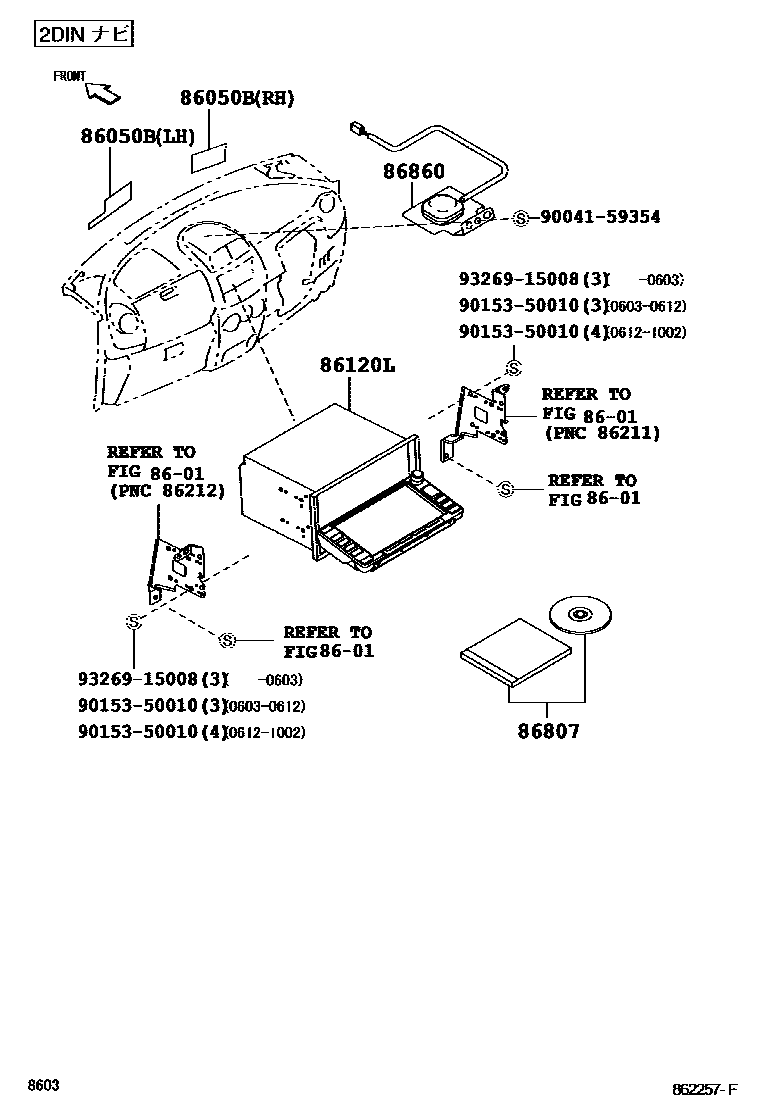

8 parts on this diagram · 2 diagrams in section
