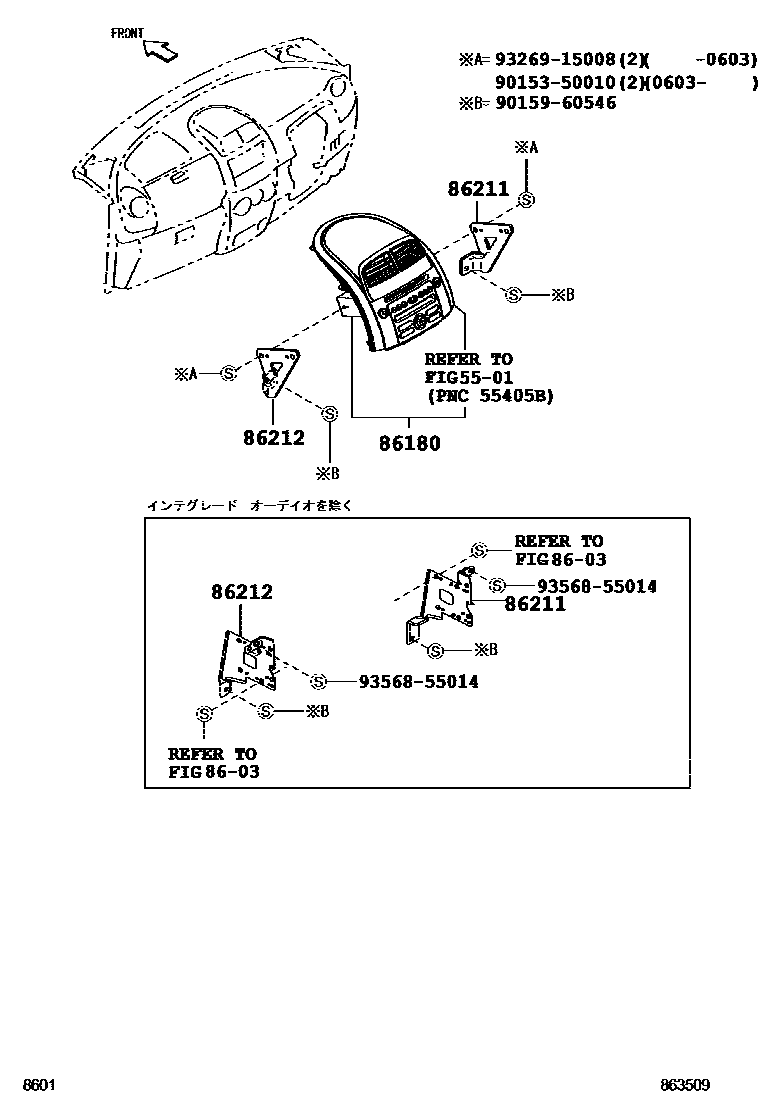

86180TUNER ASSY, STEREO COMPONENT

main86180-B1060-B1iQNC10..RACY200412-200612

main86180-B1100-B0iKGC1#,QNC10..G,X200511-200612

main86180-B1010-S1supersedes 86180-B1101-C0iKGC1#,QNC10..G,X200405-200512

main86180-B1061-B1iKGC1#,QNC10..RACY; KGC1#..RACY; QNC10..RACY200706-201002

main86180-B1061-C0iKGC1#,QNC10..RACY; KGC1#..RACY; QNC10..RACY200612-200706

main86180-B1101-B0supersedes 86180-B1101-C0iKGC1#,QNC10..G,X; KGC1#..X; KGC15,QNC10..G200706-201002

main86180-B1101-C0iKGC1#,QNC10..G,X; KGC1#..X; KGC15,QNC10..G200612-200706

86211BRACKET, RADIO, NO.1

main86211-B1020supersedes 86211-B1010iKGC1#,QNC10; KGC1#..RACY,X; QNC10;KGC15..G200612-201002

main86211-B1030iKGC10..X;KGC15..G200802-201002

86212BRACKET, RADIO, NO.2

main86212-B1020iKGC1#,QNC10; KGC1#..RACY,X; QNC10;KGC15..G200612-201002

main86212-B1030iKGC10..X200612-200706

9015350010

main90153-50010

9015960546

main90159-60546

9326915008

main93269-15008

9356855014

main93568-55014

8 parts on this diagram · 4 diagrams in section
