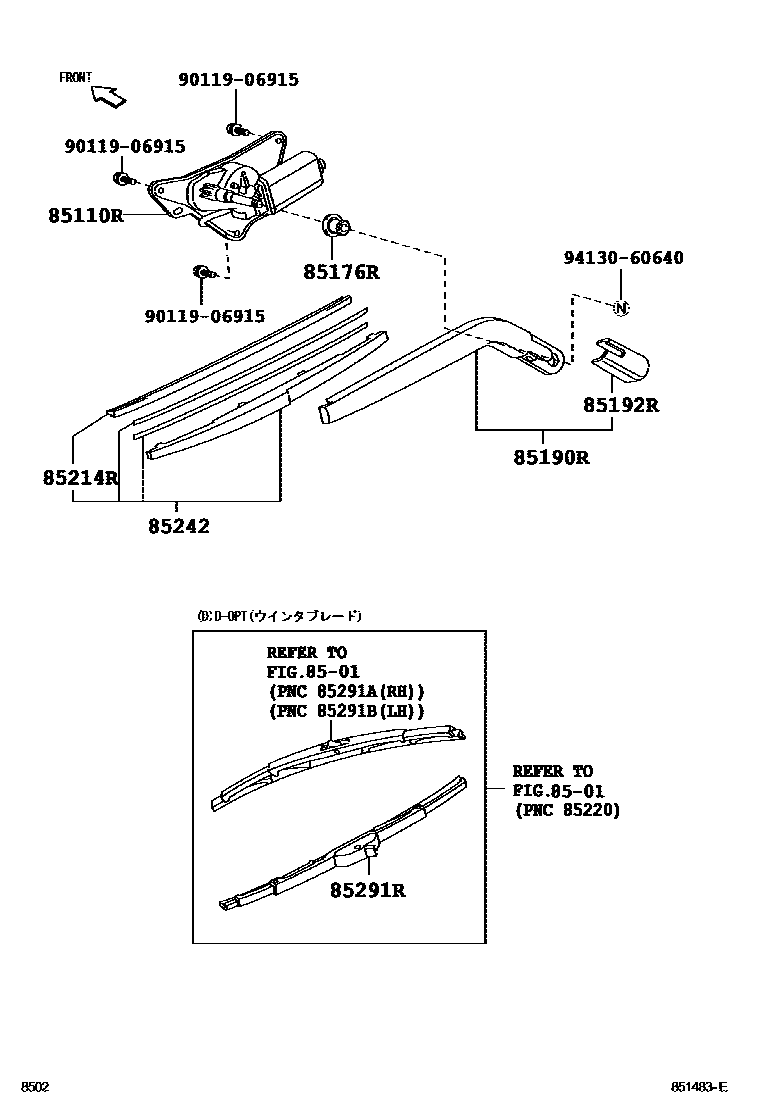

REAR WIPER

8501WINDSHIELD WIPER

→ Go to FIG 85-01

85110RMOTOR ASSY, REAR WIPER

main85130-B1010iKGC1#,QNC10200405-200612

85176RCAP, REAR WIPER LINK

main85176-87603iKGC1#,QNC10; KGC10200405-200612

85190RARM ASSY, REAR WIPER

main85241-B1010iKGC1#,QNC10; KGC10200405-200612

85192RCOVER, REAR WIPER ARM

main85292-28030iKGC1#,QNC10; KGC10200405-200612

85214RRUBBER, REAR WIPER

main85221-87401iKGC1#,QNC10; KGC10200405-200612

85242BLADE, RR WIPER

main85242-B1010iKGC1#,QNC10; KGC10200405-200612

85291RBLADE,REAR WIPER, WINTER

main85291-B1010iKGC1#,QNC10200405-200612

9011906915

main90119-06915

9413060640

main94130-60640

10 parts on this diagram · 1 diagram in section
