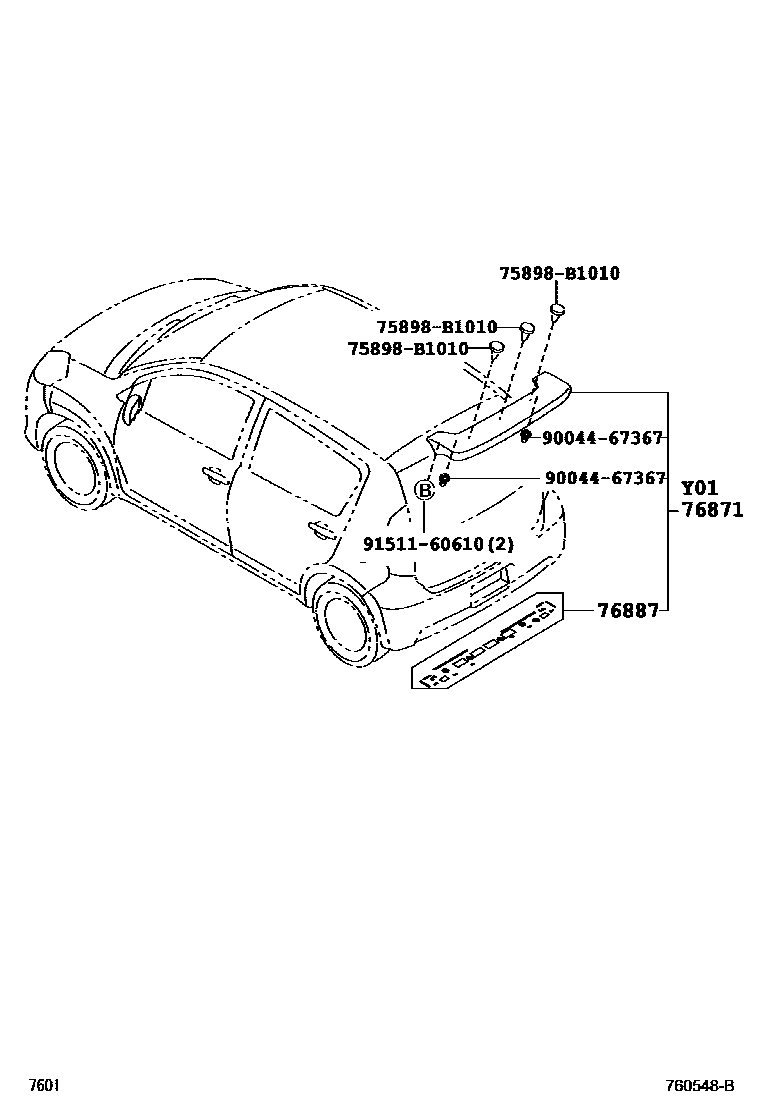

MUDGUARD & SPOILER

76871SPOILER, REAR

main76091-B1010-A0iQNC10..RACY200412-200612

WHITE PEARL MC.,W16

main76091-B1010-B2iQNC10..RACY200412-200612

DK.BLUE M.M.,B42

main76091-B1010-G1iKGC1#,QNC10..RACY200612-201001

YELLOW GREEN M.M.,G43

main76091-B1010-R0iKGC1#,QNC10..RACY200612-201002

RED,R40

main76091-B1010-S8iQNC10..RACY200412-200612

SILVER ME.,S28

main76091-B1010-X7iKGC1#,QNC10..RACY200612-201002

BLACK M.M.,X07

76887SEAL, REAR SPOILER

main76887-B1010iKGC1#,QNC10..RACY200612-201002

75898B1010CLIP, BACK DOOR OUTSIDE MOULDING

main75898-B1010

9004467367

main90044-67367

9151160610

main91511-60610

5 parts on this diagram · 1 diagram in section
