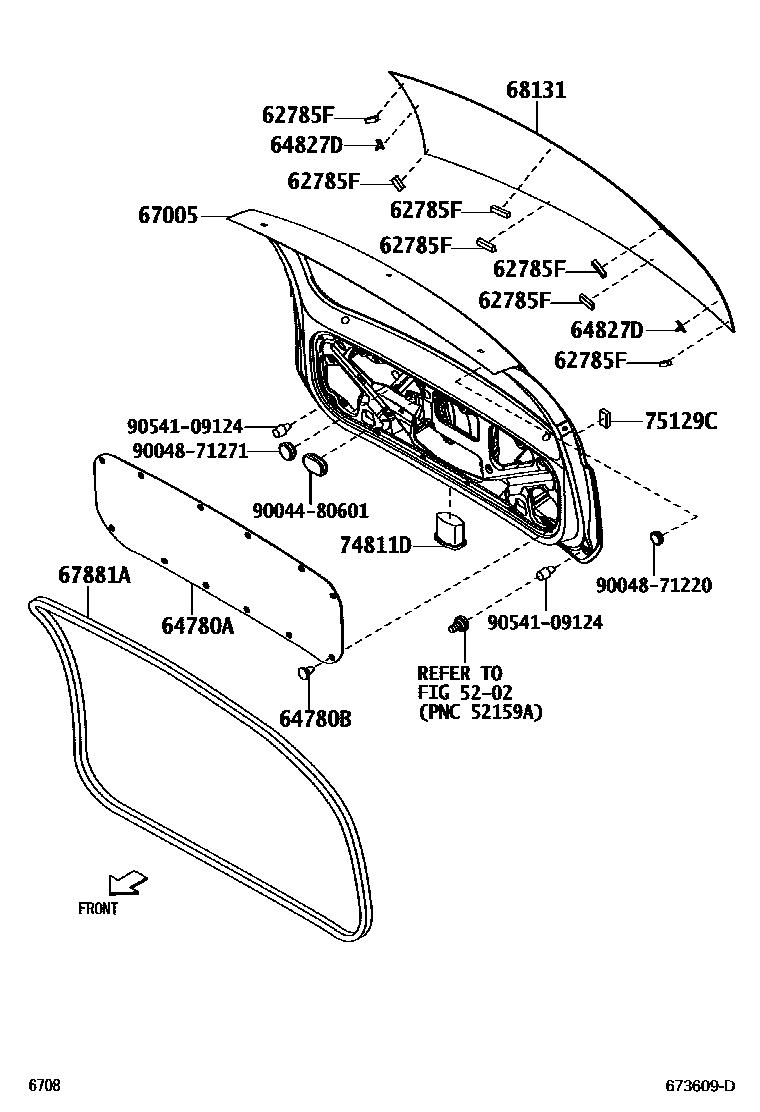

BACK DOOR PANEL & GLASS

0001 1 0002 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

62785FSPACER, BACK DOOR GLASS

main64818-87704×7iKGC1#,QNC10200405-200612

64780APANEL ASSY, BACK DOOR TRIM

main64780-B1010-S1iKGC1#,QNC10200612-201002

BS74,TRIM1#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90044-68061-B1×12iKGC1#,QNC10200612-201001

DK.GRAY,TRIM1#

main90467-07076-B7×12iKGC1#,QNC10200405-200612

DK.GRAY,TRIM1#

64827DCLIP, BACK WINDOW GLASS

main64827-87701×2iKGC1#,QNC10200612-201002

67005PANEL SUB-ASSY, BACK DOOR

main67005-B1010iKGC1#,QNC10..G,X200405-200612

main67005-B1050iKGC1#,QNC10..RACY200612-200711

main67005-B1070iKGC1#,QNC10..G,X200711-201002

main67005-B1080iKGC1#,QNC10..RACY200711-201002

main67005-B1020iKGC10200405-200512

main67005-B1030iKGC10200405-200512

main67005-B1040iKGC10..X200612-200711

main67005-B1320iKGC10..X200711-201002

67881AWEATHERSTRIP, BACK DOOR

main67881-B1010iQNC10;KGC1#..G,X200405-200602

main67881-B1011iKGC1#,QNC10200612-201002

68131GLASS, BACK DOOR

main68131-B1020iKGC1#,QNC10200612-201002

main68131-B1010iKGC10..X200612-201002

74811DHANDLE, DOOR PULL

main74811-13010-C0iKGC1#,QNC10200405-200612

BLACK

75129CCUSHION, REAR LICENCE PLATE

main75129-B1010×2iKGC1#,QNC10200405-200612

9004480601

main90044-80601

9004871220

main90048-71220

9004871271

main90048-71271

9054109124

main90541-09124

14 parts on this diagram · 2 diagrams in section
