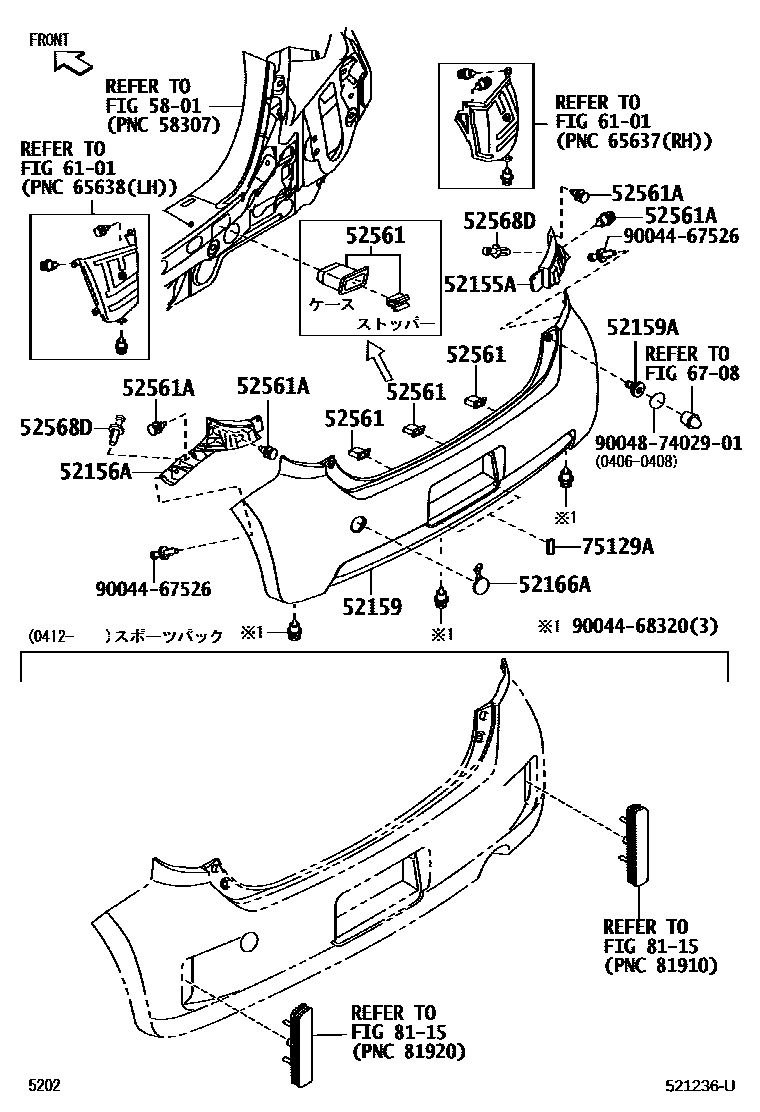

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
MAROON MC.,R56
CHAMPAGNE ME.,T23
YELLOW ME.,Y08
LIME GREEN ME.,G40
YELLOW GREEN M.M.,G43
GRAYISH PURPLE ME.OP.,P12
RED,R40
MD CORAL ME.,R43
SILVER ME.,S28
CHAMPAGNE ME.OP.,T17
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
WHITE PEARL MC.,W16
DK.BLUE M.M.,B42
YELLOW GREEN M.M.,G43
RED,R40
SILVER ME.,S28
WHITE,W09
BLACK M.M.,X07
52159ABOLT(FOR REAR BUMPER COVER)
52166ACOVER, REAR BUMPER, UPR LH
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
MAROON MC.,R56
CHAMPAGNE ME.,T23
YELLOW ME.,Y08
LIME GREEN ME.,G40
YELLOW GREEN M.M.,G43
GRAYISH PURPLE ME.OP.,P12
RED,R40
MD CORAL ME.,R43
SILVER ME.,S28
CHAMPAGNE ME.OP.,T17
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
WHITE PEARL MC.,W16
DK.BLUE M.M.,B42
YELLOW GREEN M.M.,G43
RED,R40
SILVER ME.,S28
WHITE,W09
BLACK M.M.,X07
52561RETAINER, REAR BUMPER, UPPER CENTER
52561ACLIP(FOR REAR BUMPER RETAINER)
52568DRETAINER, REAR BUMPER, UPPER NO.2
5801FLOOR PAN & LOWER BACK PANEL
6101SIDE MEMBER
6708BACK DOOR PANEL & GLASS
75129ACUSHION, REAR LICENCE PLATE
8115REFLEX REFLECTOR
9004467526
main90044-67526
9004468320
main90044-68320
900487402901
main90048-7402901
16 parts on this diagram · 2 diagrams in section
