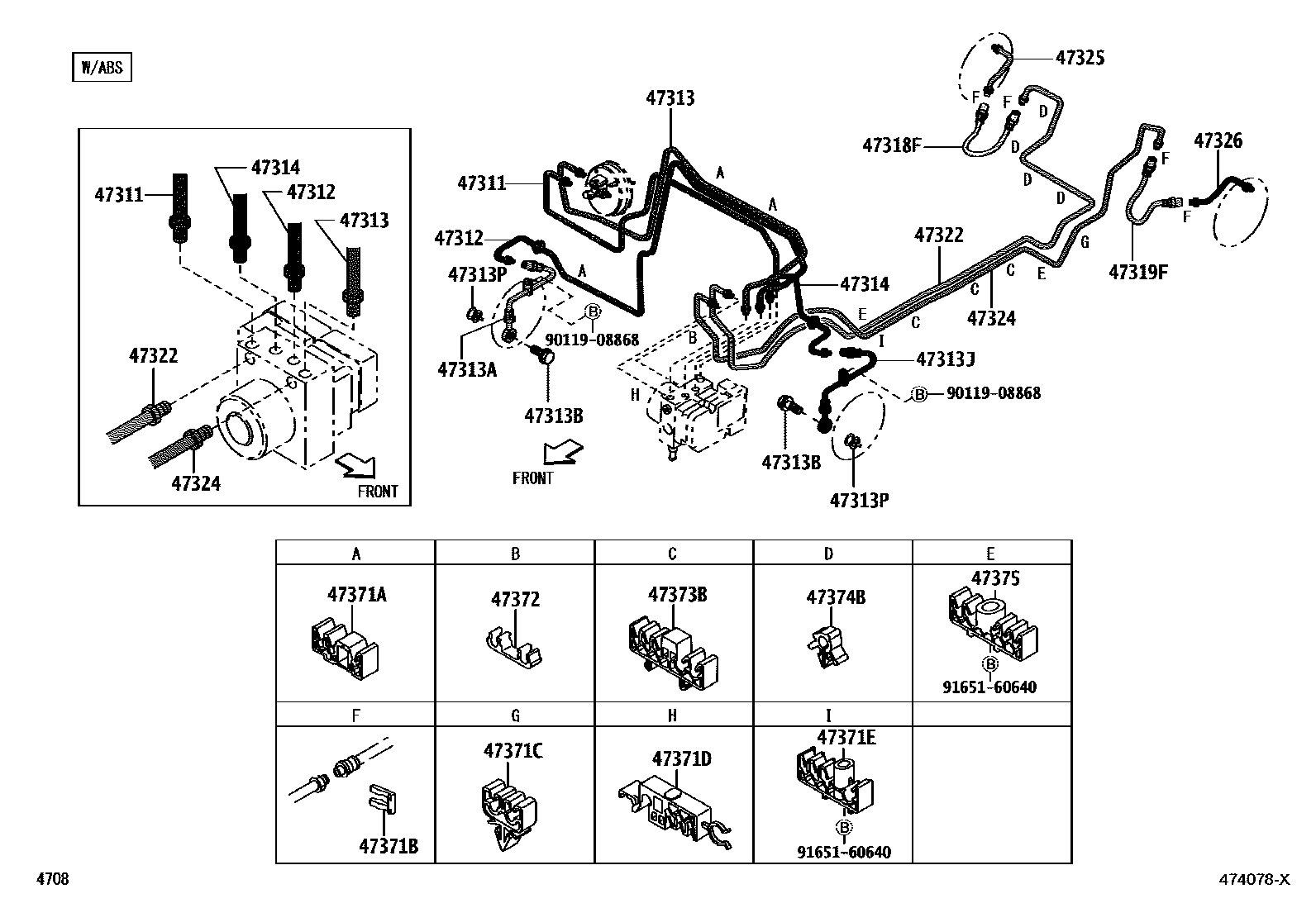

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
9011908868
main90119-08868
9165160640
main91651-60640
25 parts on this diagram · 2 diagrams in section
