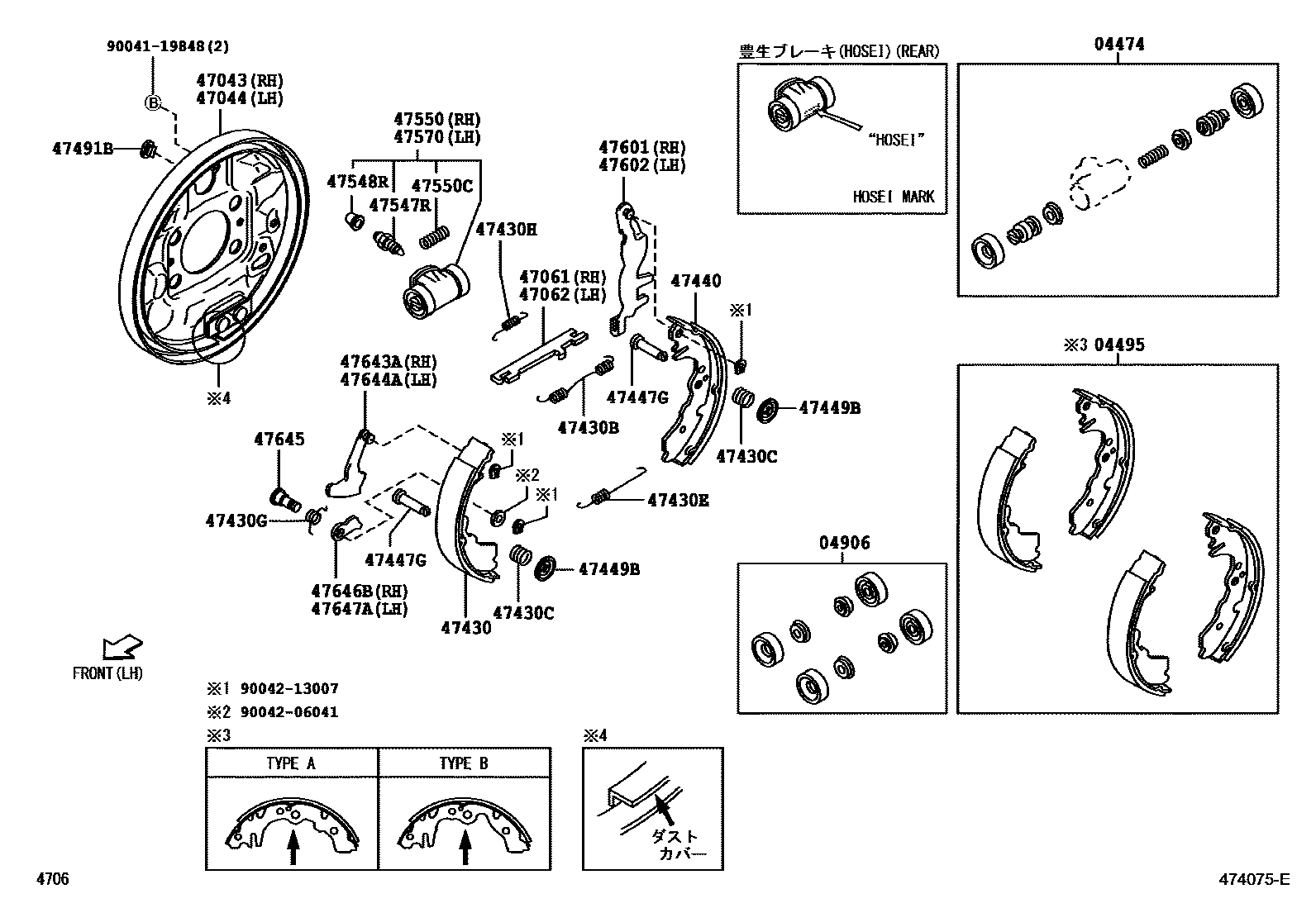

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iKGC10,QNC10200612-201002

main04474-B1020iKGC15200405-200505

main04474-B2030iKGC15200505-200612

04495SHOE KIT, REAR BRAKE

main04495-97217iKGC15200612-201002

main04495-B1010iKGC10,QNC10200405-200509

main04495-B1080iKGC10,QNC10200509-200612

main04495-B2140iKGC15200405-200612

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B1020iKGC15200405-200505

main04906-B2010iKGC10,QNC10200405-200612

main04906-B2020iKGC15200612-201002

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B1030iKGC10,QNC10200612-201002

main47043-B2020iKGC10,QNC10200405-200509

main47043-B2030iKGC15200405-200612

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B1030iKGC10,QNC10200612-201002

main47044-B2020iKGC10,QNC10200405-200509

main47044-B2030iKGC15200405-200612

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B2020iKGC15200405-200612

main47613-B2050iKGC10,QNC10200612-201002

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B2020iKGC15200612-201002

main47613-B2050iKGC10,QNC10200612-201002

47430SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE)

main47430-B2021×2iKGC10,QNC10200405-200509

main47430-B2031×2iKGC15200405-200612

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06141×2iKGC15200405-200612

main90045-06255×2iKGC10,QNC10200612-201002

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-87704×2iKGC15200405-200612

main90045-01816×4iKGC10,QNC10200612-201002

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main44699-B2010×2iKGC10,QNC10200405-200612

main90045-06139iKGC15200612-201002

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90045-08383iKGC10,QNC10200612-201002

main90045-08384iKGC10,QNC10200612-201002

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90045-06151iKGC15200405-200612

main90045-06196iKGC10,QNC10200405-200612

main90045-06199iKGC10,QNC10200405-200612

47440SHOE ASSY, REAR BRAKE(FOR REAR OR LOWER SIDE)

main47430-B2021×2iKGC10,QNC10200405-200509

main47430-B2031×2iKGC15200405-200612

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×4iKGC10,QNC10200405-200612

main47447-87503×4iKGC15200612-201002

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iKGC10,QNC10200405-200612

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-87201×2iKGC10,QNC10200405-200504

main47491-97701×4iKGC15200405-200612

main47491-B1010×2iKGC10,QNC10200505-200612

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iKGC10,QNC10200405-200612

main47547-87506×2iKGC15200405-200612

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87204×2iKGC15200612-201002

main47548-87501×2iKGC10,QNC10200405-200612

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B2020iKGC10,QNC10200405-200612

main47560-97504iKGC15200405-200504

main47560-B2010iKGC15200505-200612

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90045-01293×2iKGC15200405-200505

main90045-01430×2iKGC10,QNC10200405-200612

main90045-01871×2iKGC15200505-200612

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-B2020iKGC10,QNC10200612-201002

main47560-97504iKGC15200405-200504

main47560-B2010iKGC15200612-201002

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-B2030iKGC15200612-201002

main47601-B2040iKGC10,QNC10200405-200612

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-B2030iKGC15200405-200612

main47602-B2040iKGC10,QNC10200612-201002

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87201iKGC10,QNC10200405-200612

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87201iKGC10,QNC10200612-201002

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201×2iKGC10,QNC10200405-200612

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iKGC10,QNC10200405-200612

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47647-97201iKGC10,QNC10200405-200612

9004119848

main90041-19848

9004206041

main90042-06041

9004213007

main90042-13007

32 parts on this diagram · 2 diagrams in section
