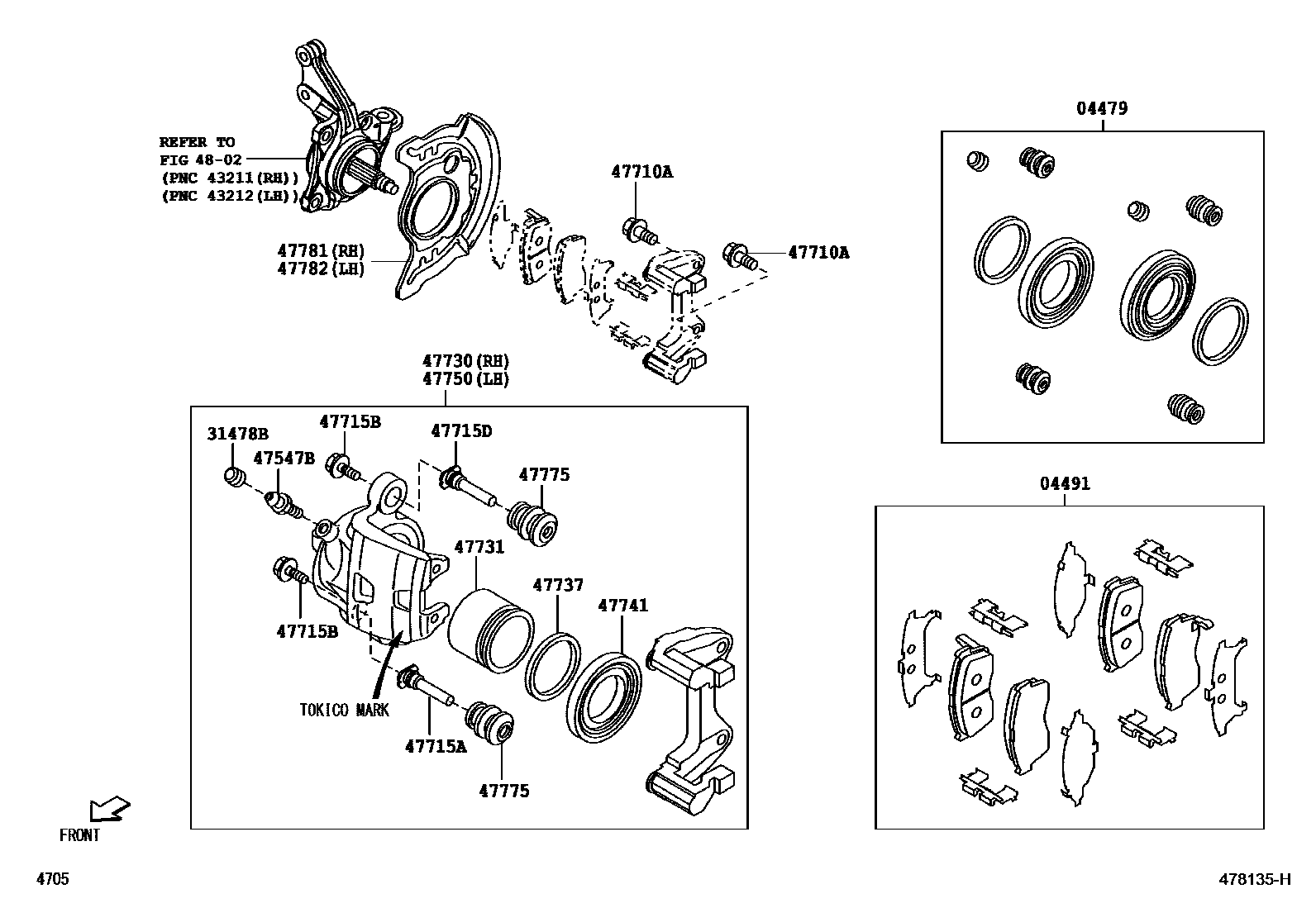

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B1010iKGC1#,QNC10200405-200604

main04478-B2080iKGC1#,QNC10200604-200612

04491PAD KIT, DISC BRAKE, FRONT

main04465-B1010iKGC1#,QNC10200405-200504

main04465-B1050iKGC1#,QNC10200504-200612

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-97401×2iKGC1#,QNC10200405-200612

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-97401×2iKGC1#,QNC10200405-200511

main47547-B1020×2iKGC1#,QNC10200512-200612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iKGC1#,QNC10200405-200612

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-97401×2iKGC1#,QNC10200405-200612

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-97403×4iKGC1#,QNC10200405-200511

main47715-B1020×4iKGC1#,QNC10200512-200612

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-97401×2iKGC1#,QNC10200405-200612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B2032iKGC1#,QNC10200405-200409

47731PISTON, FRONT DISC BRAKE

main47731-97401×2iKGC1#,QNC10200405-200612

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97401×2iKGC1#,QNC10200405-200612

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97401×2iKGC1#,QNC10200405-200612

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B2032iQNC10;KGC1#..G,X200405-200504

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-97401×4iKGC1#,QNC10200405-200612

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-97402iKGC1#,QNC10200405-200612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-97402iKGC1#,QNC10200405-200612

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

17 parts on this diagram · 1 diagram in section
