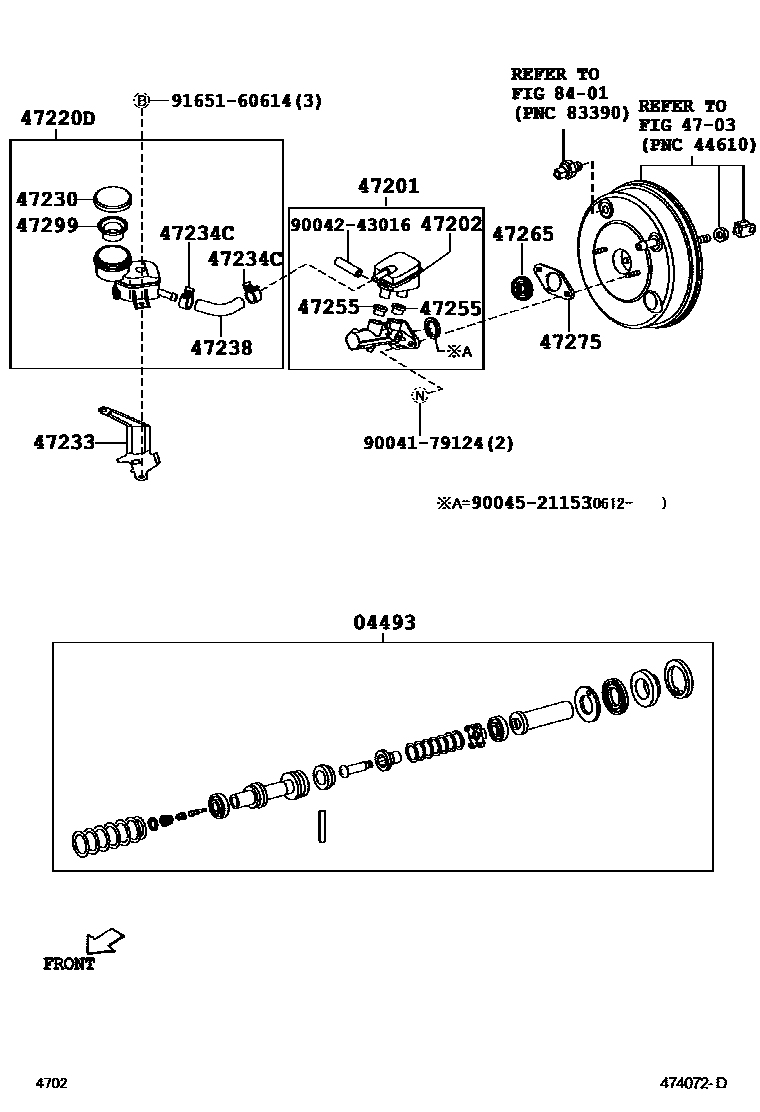

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-B2040iKGC1#,QNC10200405-200612

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B1010iKGC1#,QNC10200405-200612

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47221-B1010iKGC1#,QNC10200405-200612

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B1010iKGC1#,QNC10200405-200612

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B2030iKGC1#,QNC10200405-200612

47233BRACKET, RESERVOIR

main47233-B1010iKGC1#,QNC10200405-200612

main47233-B1040iKGC1#,QNC10201001-201002

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67161×2iKGC1#,QNC10200405-200612

47238HOSE, MASTER CYLINDER BRIDGE

main47234-B1010iKGC1#,QNC10200405-200612

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-87502×2iKGC1#,QNC10200405-200612

47265BOOT, MASTER CYLINDER

main47275-B2020iKGC1#,QNC10200405-200612

47275GASKET, BRAKE MASTER CYLINDER

main47275-87401iKGC1#,QNC10200405-200612

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-87401iKGC1#,QNC10200405-200612

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179124

main90041-79124

9004243016

main90042-43016

9004521153

main90045-21153

9165160614

main91651-60614

18 parts on this diagram · 1 diagram in section
