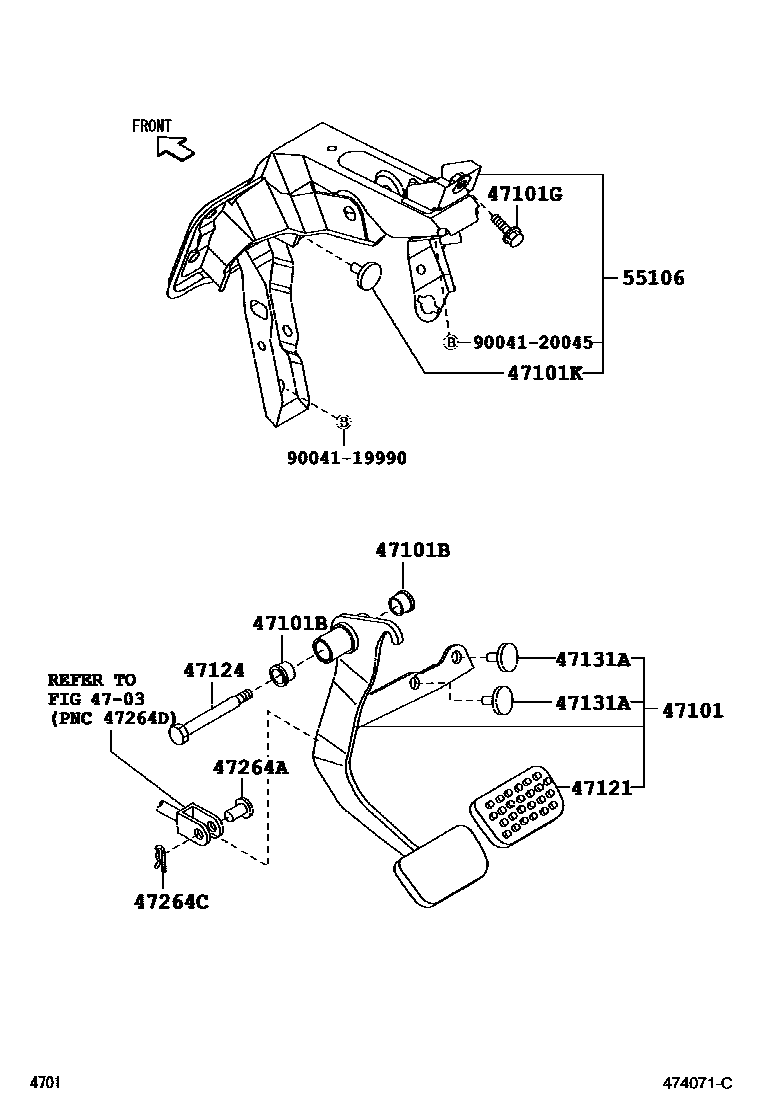

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B1010iKGC1#,QNC10200405-200612

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iKGC1#,QNC10200405-200612

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iKGC1#,QNC10200405-200612

47101KCUSHION(FOR PARKING LOCK CABLE)

main90045-40158iKGC1#,QNC10200405-200612

47121PAD, BRAKE PEDAL

main47121-87202iKGC1#,QNC10200405-200612

47124SHAFT, BRAKE PEDAL

main31324-B2020iKGC1#,QNC10200405-200612

47131ACUSHION(FOR BRAKE PADAL STOPPER)

main90045-40158×2iKGC1#,QNC10200405-200612

47264APIN(FOR PUSH ROD)

main90042-40145iKGC1#,QNC10200405-200512

main90042-40151iKGC1#,QNC10200512-200612

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iKGC1#,QNC10200405-200612

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B1020iKGC1#,QNC10200405-200612

main55106-B1021iKGC1#,QNC10200812-201002

9004119990

main90041-19990

9004120045

main90041-20045

13 parts on this diagram · 2 diagrams in section
