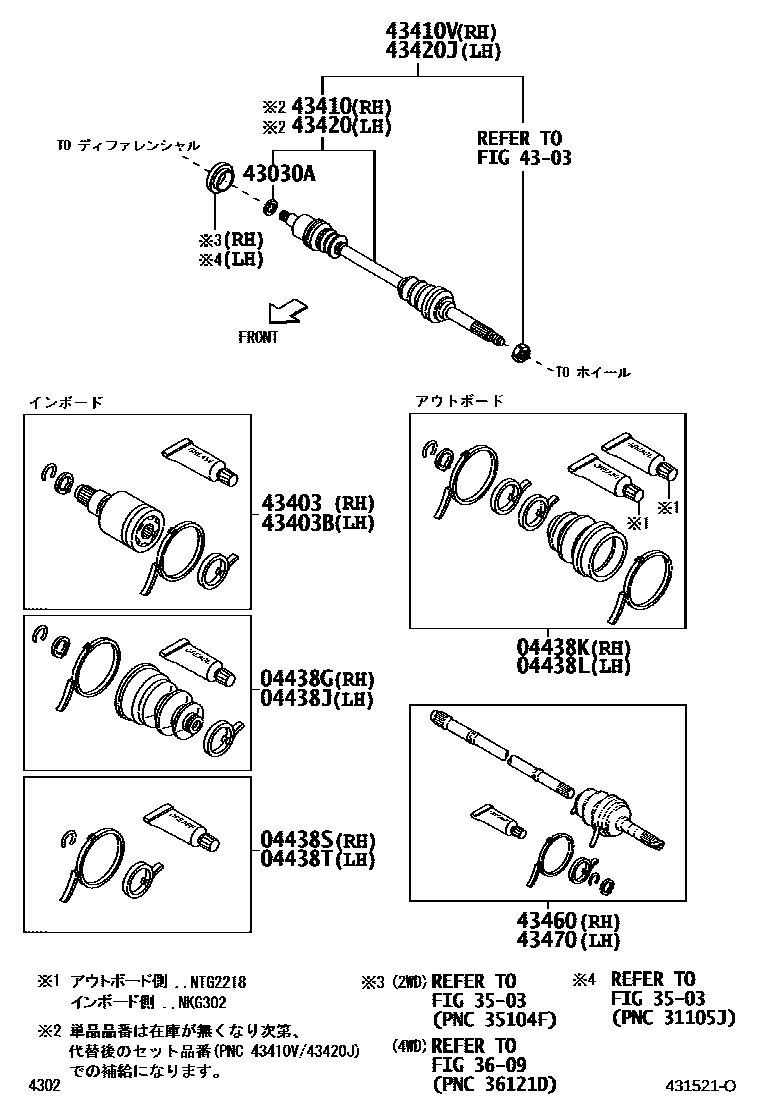

FRONT DRIVE SHAFT

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B1080iQNC10200405-200612

main04437-B1081iQNC10200807-201002

main04437-B2020iKGC10200405-200612

main04437-B2030iKGC15200612-201002

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-B1081iQNC10200405-200612

main04437-B2020iKGC1#200405-200612

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B1080iQNC10200508-200612

main04425-B1081iQNC10200807-201002

main04425-B2010iKGC1#200405-200610

main04425-B2110iKGC1#200610-200612

main04425-BZ010iQNC10200405-200508

04438LBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH

main04425-B1081iQNC10200405-200612

main04425-B2110iKGC1#200405-200612

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B1090iQNC10200807-201002

main04435-B2020iKGC10200801-201002

main04435-BZ010iQNC10200405-200612

04438TCLAMP KIT, FRONT DRIVE SHAFT, LH

main04435-B1090iQNC10200807-201002

main04435-B2020iKGC1#200405-200612

main04435-BZ010iQNC10200405-200612

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

4303FRONT AXLE HUB

→ Go to FIG 43-03

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90045-20298×2iKGC1#,QNC10200405-200612

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9090iKGC10200405-200605

main43408-B9100iKGC15200405-200605

main43408-B9190iQNC10200405-200612

main43408-B9191iQNC10200807-201002

main43408-B9350iKGC10200605-200612

main43408-B9360iKGC15200605-200612

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43408-B9090iKGC1#200405-200605

main43408-B9190iQNC10200612-200807

main43408-B9191iQNC10200807-201002

main43408-B9350iKGC1#200612-201002

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B1010iKGC10200612-201002

main43410-B1020iQNC10200405-200612

main43410-B1030iKGC15200612-201002

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9520iQNC10200612-201002

main43410-B9580iKGC10200612-201002

main43410-B9590iKGC15200405-200612

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-B1010iKGC1#200612-201002

main43420-B1020iQNC10200405-200612

43420JSHAFT SET, FRONT DRIVE, LH

main43420-B9520iKGC1#200405-200612

main43420-B9530iQNC10200612-201002

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9170iKGC10200405-200612

main43411-B9180iQNC10200612-201002

main43411-B9190iKGC15200612-201002

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43412-B9070iKGC1#200405-200612

main43412-B9080iQNC10200405-200612

18 parts on this diagram · 1 diagram in section
