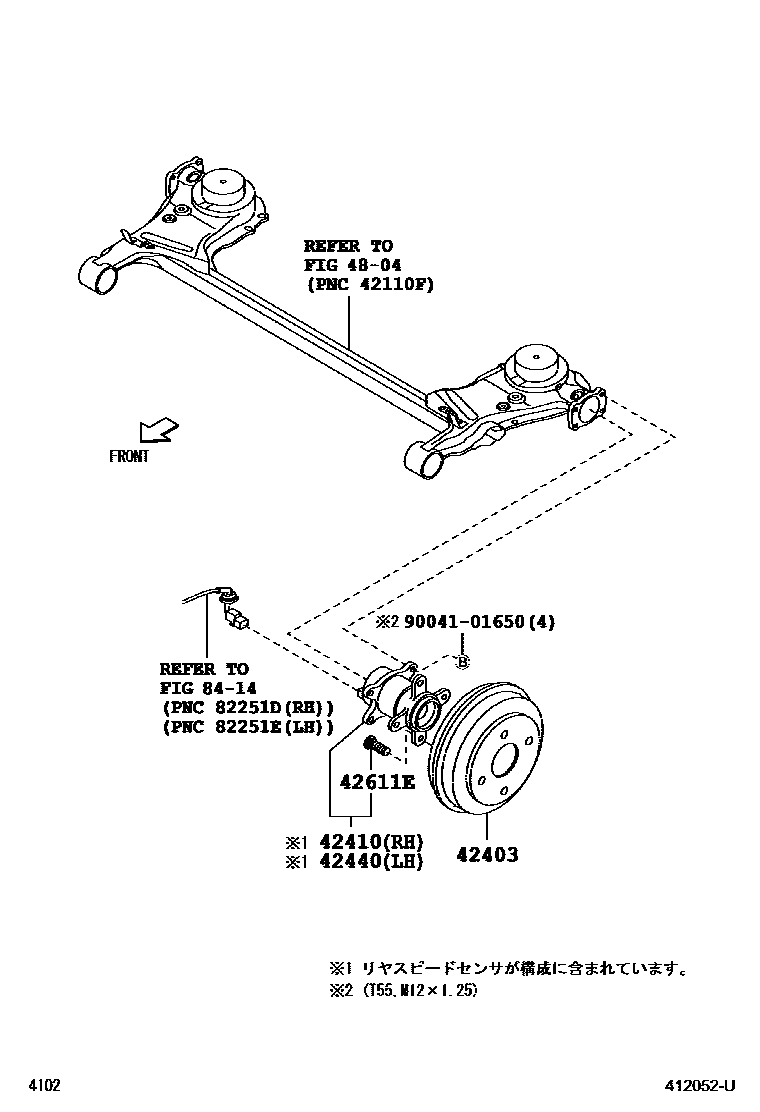

REAR AXLE SHAFT & HUB

0001 1 0002 1

42403DRUM SUB-ASSY, REAR BRAKE

main42403-B2010×2iKGC15200405-200612

main42431-B1010×2iKGC10,QNC10200405-200508

main42431-B1011×2iKGC10,QNC10200612-201002

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B1010iKGC10,QNC10200405-200612

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B1010iKGC10,QNC10200405-200612

42611EBOLT, HUB (FOR REAR AXLE)

main90049-12057×8iKGC15200405-200612

main90049-12062×8iKGC10,QNC10200612-201002

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8414ABS & VSC

→ Go to FIG 84-14

9004101650

main90041-01650

7 parts on this diagram · 2 diagrams in section
