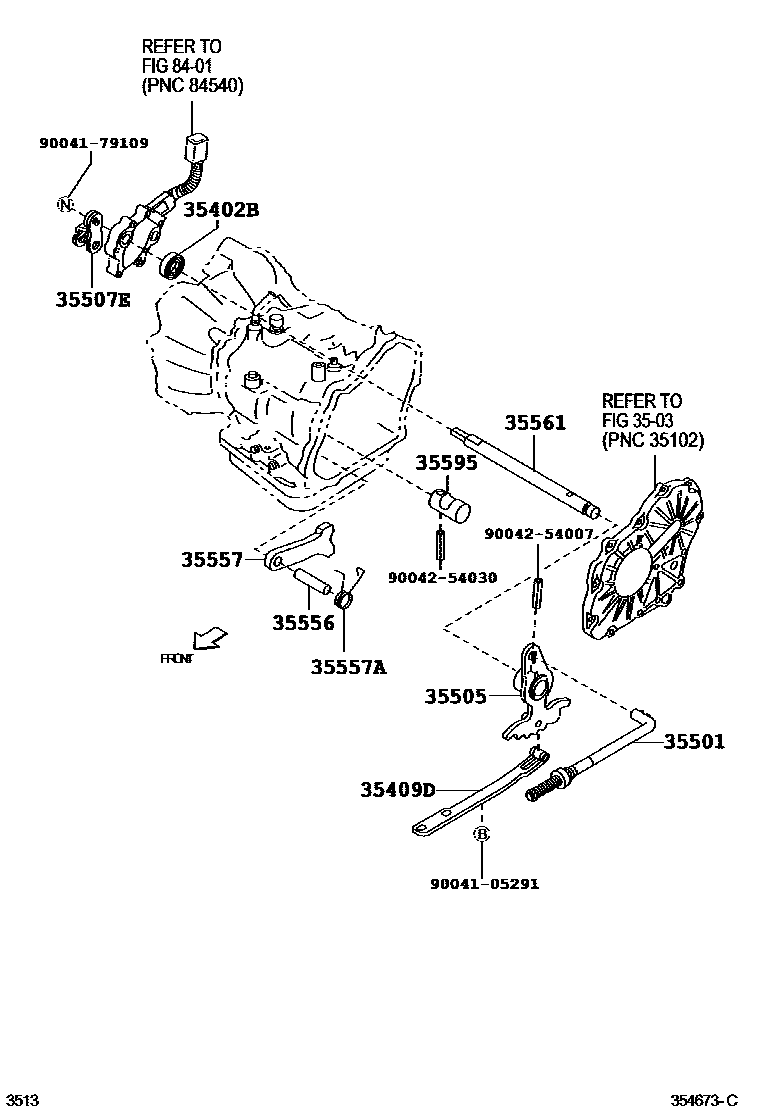

THROTTLE LINK & VALVE LEVER (ATM)

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35402BSEAL,OIL(FOR MANUAL VALVE)

main90043-11256iKGC1#,QNC10200405-200612

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-97206iKGC1#,QNC10200405-200612

35501ROD SUB-ASSY, PARKING LOCK

main35501-97202iKGC1#,QNC10200405-200612

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-97202iKGC1#,QNC10200405-200612

35507ELEVER,TRANSMISSION CONTROL SHAFT

main35507-97201iKGC1#,QNC10200405-200612

35556SHAFT, PARKING LOCK PAWL

main35556-87202iKGC1#,QNC10200405-200612

35557PAWL, PARKING LOCK

main35557-97201iKGC1#,QNC10200405-200612

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90045-08389iKGC1#,QNC10200405-200612

35561SHAFT, MANUAL VALVE LEVER

main35561-97201iKGC1#,QNC10200405-200612

35595BRACKET, PARKING LOCK PAWL

main35595-87203iKGC1#,QNC10200405-200612

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105291

main90041-05291

9004179109

main90041-79109

9004254007

main90042-54007

9004254030

main90042-54030

16 parts on this diagram · 1 diagram in section
