VACUUM PIPING

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

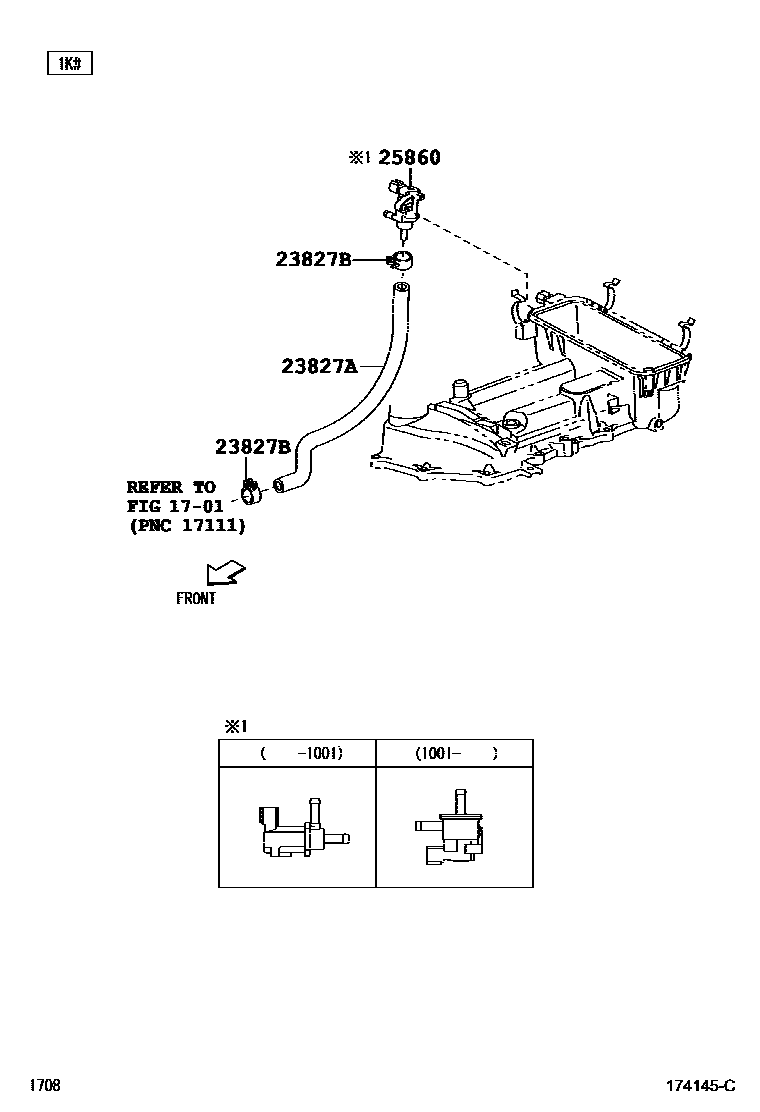

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-40010i1KRFE..KGC1#200405-200412

main23827-B1010i1KRFE..KGC1#200412-200612

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41300×2i1KRFE..KGC1#200405-200612

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main17650-97403iK3VE..QNC10200405-200612

main90910-12275i1KRFE..KGC1#200612-201001

main90910-12280i1KRFE..KGC1#201001-201002

4 parts on this diagram · 2 diagrams in section
