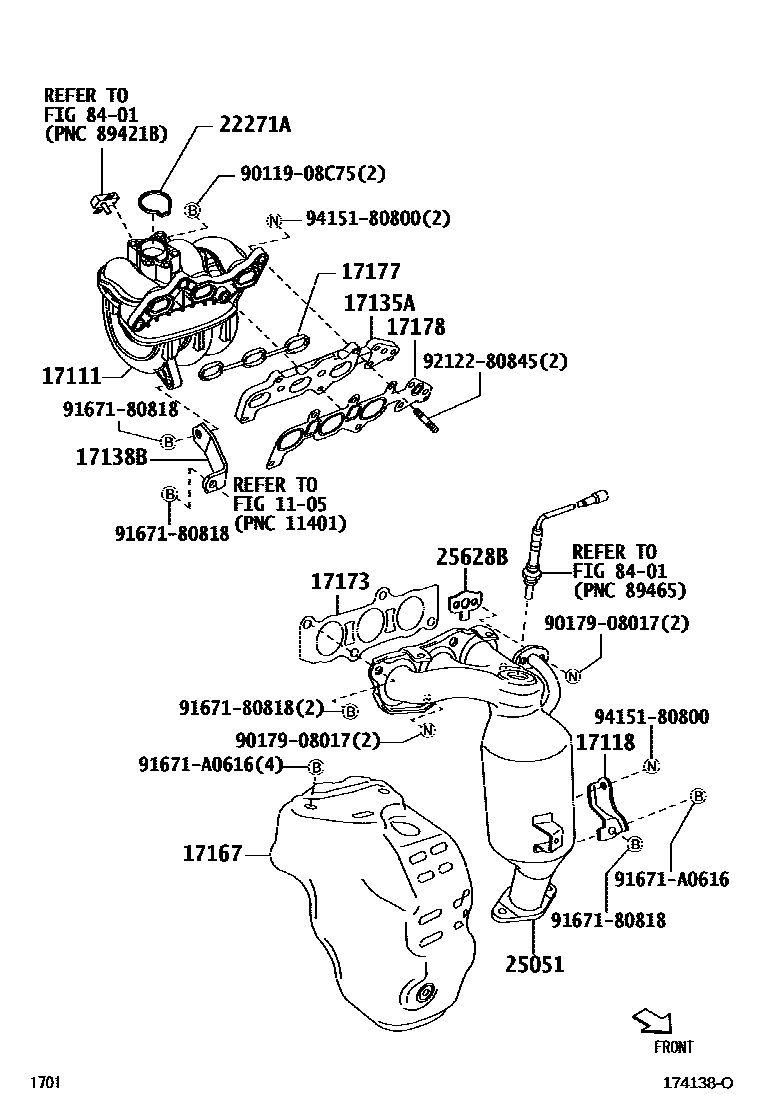

MANIFOLD
1105CYLINDER BLOCK
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25628BGASKET, EGR INLET
8401SWITCH & RELAY & COMPUTER
9011908C75
main90119-08C75
9017908017
main90179-08017
9167180818
main91671-80818
91671A0616
main91671-A0616
9212280845
main92122-80845
9415180800
main94151-80800
19 parts on this diagram · 2 diagrams in section
