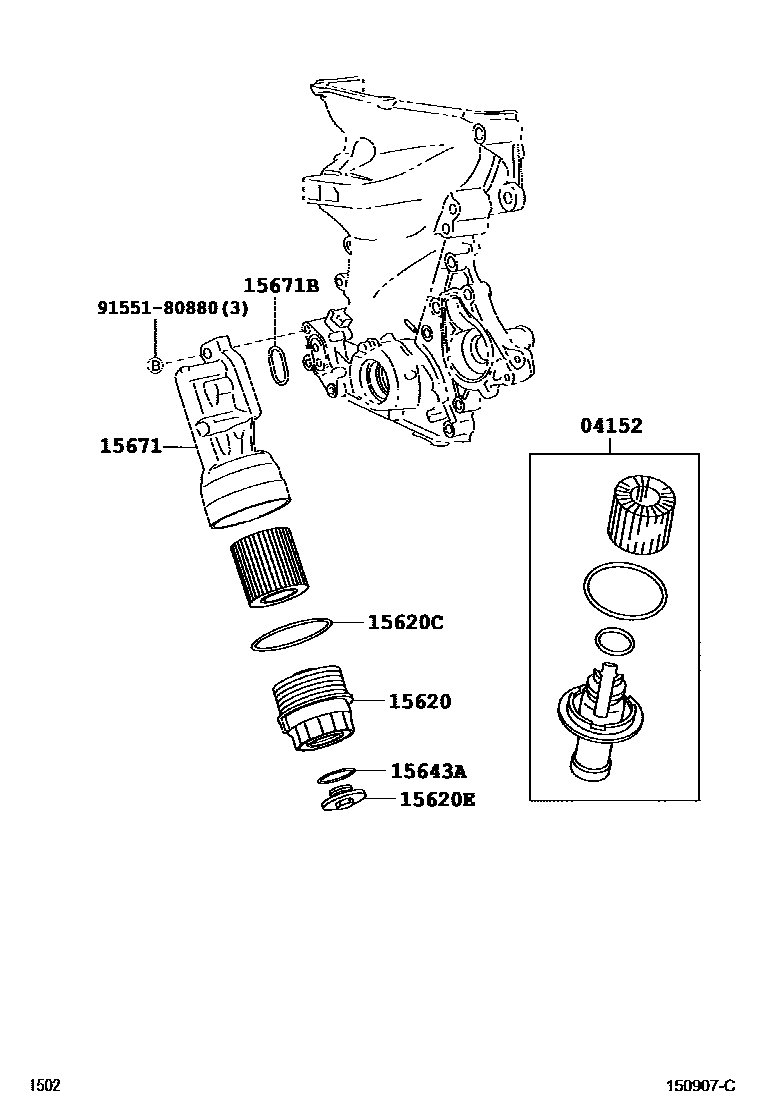

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-40060i1KRFE..KGC1#; K3VE..QNC10200405-200612

15620CAP ASSY, OIL FILTER

main15620-40030i1KRFE..KGC1#; K3VE..QNC10200405-200612

15620CGASKET(FOR OIL FILTER CAP)

main90301-69008i1KRFE..KGC1#; K3VE..QNC10200405-200409

main90301-69010i1KRFE..KGC1#; K3VE..QNC10200409-200612

main90301-69011i1KRFE..KGC1#; K3VE..QNC10200802-201002

15620EPLUG(FOR OIL FILTER CAP)

main15643-31040i1KRFE..KGC1#; K3VE..QNC10200405-200608

main15643-31050i1KRFE..KGC1#; K3VE..QNC10200608-200612

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-27012i1KRFE..KGC1#; K3VE..QNC10200405-200409

main96723-35028i1KRFE..KGC1#; K3VE..QNC10200409-200612

15671BRACKET, OIL FILTER

main15671-40010i1KRFE..KGC1#200405-200612

main15671-B1020iK3VE..QNC10200405-200608

15671BGASKET, OIL FILTER BRACKET

main15691-40020i1KRFE..KGC1#200405-200612

9155180880

main91551-80880

8 parts on this diagram · 2 diagrams in section
