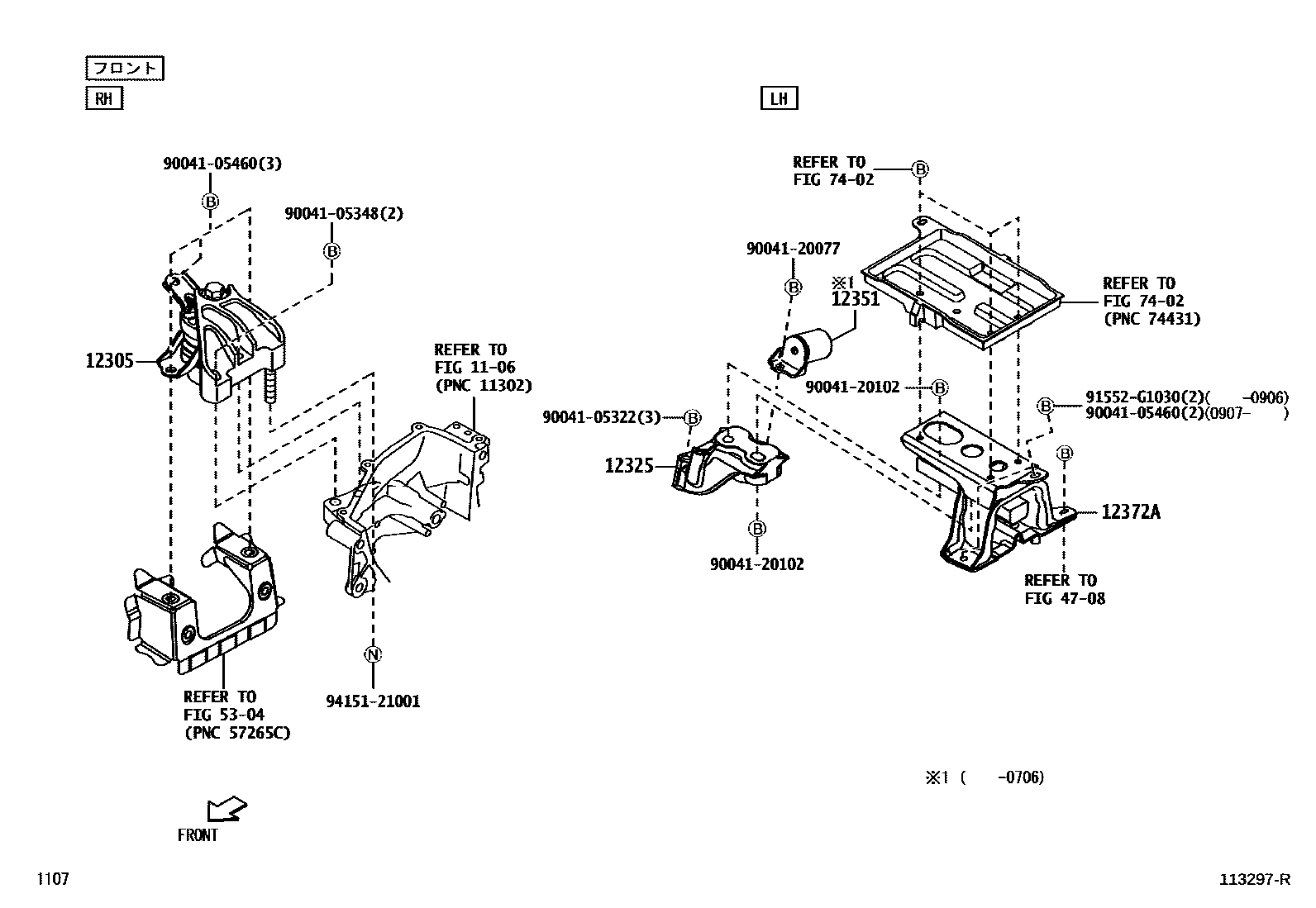

MOUNTING

0001 1���� 0002 1�� 0003 1���� 0004 1��

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1010200405-200410

main12305-B1011200411-200811

main12305-B1012200812-200912

main12305-B1013201001-201002

main12305-B1020200405-200806

main12305-B1021200807-201002

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-B1010200405-200706

main12325-B1040200706-200804

main12325-B1070200805-201002

12351DAMPER, ENGINE MOUNTING

main12351-B1010200405-200706

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-B1020200405-200510

main12306-B1030200511-201002

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

7402BATTERY CARRIER

→ Go to FIG 74-02

9004105322

main90041-05322

9004105348

main90041-05348

9004105460

main90041-05460

9004120077

main90041-20077

9004120102

main90041-20102

91552G1030

main91552-G1030

9415121001

main94151-21001

15 parts on this diagram · 4 diagrams in section
