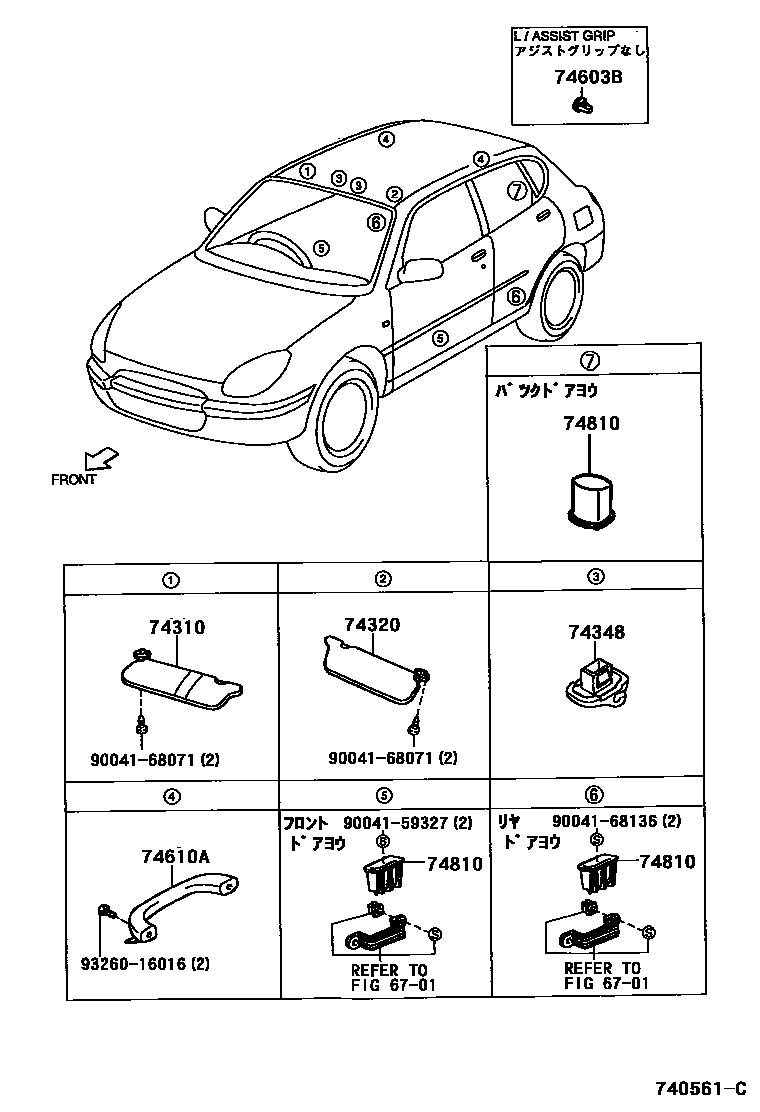

ARMREST & VISOR

6701

74310VISOR ASSY, RH

main74310-97223-08iM100,110..V199809

IVORY,TRIMS6,S8

main74310-97224-08iM100,110..V200012-200112

main74310-97224-08iM101,111;M100,110..X199809

IVORY,TRIMS6,S8

main74310-97224-08iM100,110..V200005

main74310-97224-08iM100,110..V200205

main74310-97224-08iM100,110..V199904-200005

74320VISOR ASSY, LH

main74320-97201-08iM10#,11#199809-200112

IVORY,TRIMS6,S8

sub74320-97405

main74320-97223-08iM100,110199904-200005

sub74320-97406

main74320-97405-08iM10#,11#..V200112

IVORY,TRIMS6,S8

main74320-97405-08iM100,110..V200205

main74320-97406-08iM10#,11#..VS,X200112

IVORY,TRIMS6,S8

74348HOLDER, VISOR

main74348-97201-08iM10#,11#199809-200112

IVORY,TRIMS6,S8

sub74348-97401

main74348-97401-08iM10#,11#200112

IVORY,TRIMS6,S8

sub74348-97401

sub74348-B2040

74603BCLIP (FOR ASSIST GRIP)

main90044-67414-08iM100,110..V199809-199812

IVORY,TRIMS6

sub90044-67467

main90044-67467-08iM10#,11#..V,VS199901-200112

IVORY,TRIMS6,S8

sub90044-67467

74610AGRIP SUB-ASSY, ASSIST

main74611-97201-08iM10#,11#199809

IVORY,TRIMS6,S8

sub74611-97201

74810PULL ASSY, DOOR, INSIDE

main74811-13010-B1iM10#,11#199809-200112

sub74811-13010

main74811-13010-C0iM10#,11#200112

sub74811-13010

main74811-97201-03iM10#,11#200010

sub74811-97201

main74811-97201-03iM10#,11#199809-200010

sub74811-97201

main74811-97201-23iM10#,11#200005

sub74811-97201

9004159327

main90041-59327

9004168071

main90041-68071

9004168136

main90041-68136

9326016016

main93260-16016

11 parts on this diagram · 1 diagram in section
