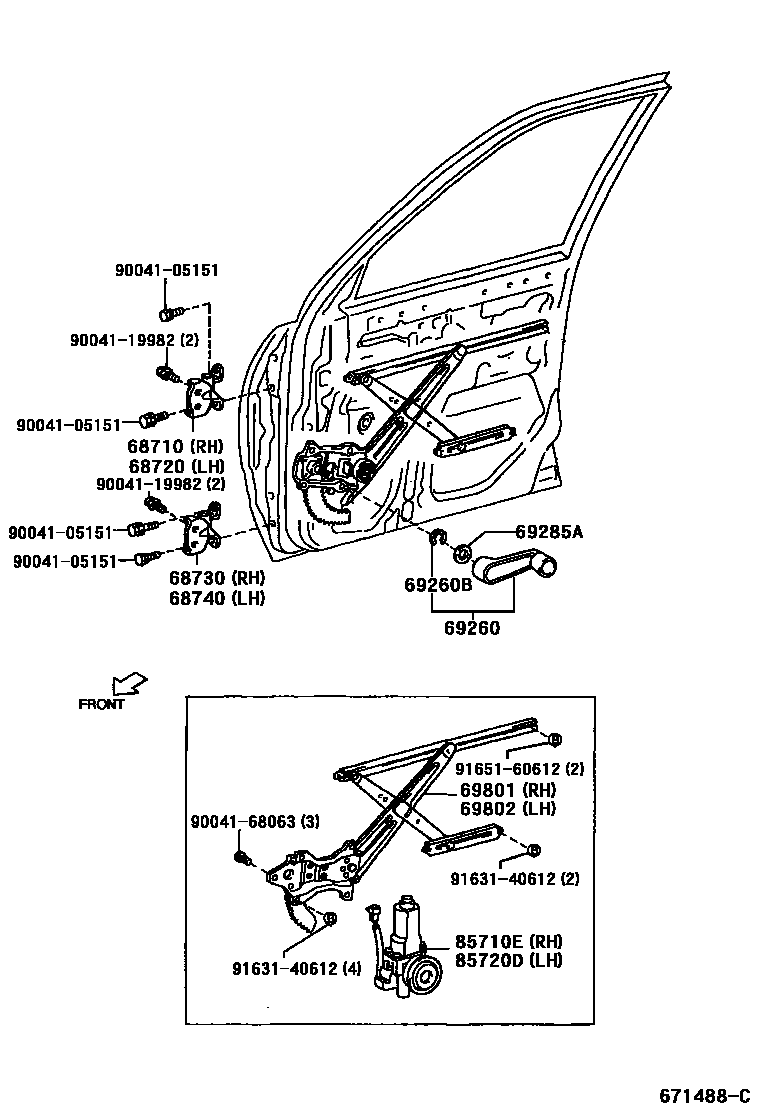

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68770-97203iM10#,11#199809

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68780-97203iM10#,11#199809

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68780-97201iM10#,11#199809

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68770-97201iM10#,11#199809

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87701-83iM100,110..V199904-200112

main69260-87701-83iM100,110..V200112

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90045-20167iM100,110..V199904-200112

main90045-20167iM100,110..V200112

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-87201iM100,110..V200112

main69285-87201iM100,110..V199904-200112

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-97201iM10#,11#199809

main69810-97201iM100,110..V199904-200112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-97201iM10#,11#199809

main69820-97201iM100,110..V199904-200112

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-97201iM100,110..V199809-200005

main85710-97202iM101,111;M100,110..X;M100,110..V..WVVT199809

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-97201iM101,111;M100,110..V;M100,110..X..WVVT199809

main85720-97202iM100,110..X199809-200005

9004105151

main90041-05151

9004119982

main90041-19982

9004168063

main90041-68063

9163140612

main91631-40612

9165160612

main91651-60612

16 parts on this diagram · 1 diagram in section
