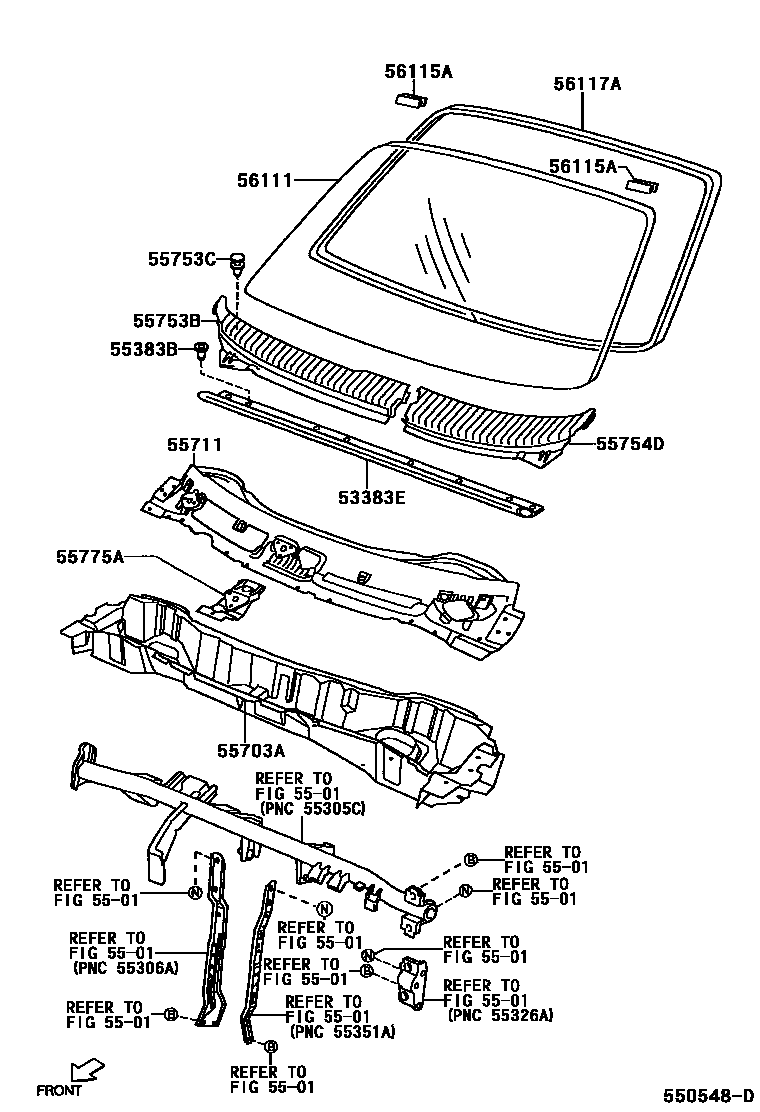

COWL PANEL & WINDSHIELD GLASS

53383EWEATHERSTRIP, HOOD TO COWL TOP

main53383-97201iM10#,11#199809

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55383BCLIP(FOR WEATHERSTRIP)

main90044-67049-21iM10#,11#199809

BLACK,B37 ,B52 ,G36 ,G37 ,R27 ,R29 ,S20 ,S21 ,S25 ,S26 ,T16 ,W09 ,W16 ,Y06

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-97201iM10#,11#199809

55711PANEL, COWL TOP, OUTER

main55711-97201iM10#,11#199809

55753BCOVER, WINDSHIELD, RH

main55753-97201iM10#,11#199809

55753CCLIP(FOR COVER WINDSHIELD, RH)

main90044-68196iM10#,11#199809

55754DCOVER, WINDSHIELD, LH

main55754-97201iM10#,11#199809

55775ARETAINER, WINDSHIELD WIPER SHAFT

main55775-97201iM10#,11#199809

56111GLASS, WINDSHIELD

main56111-97202iM10#,11#199809

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-87401iM10#,11#199809

56117ADAM, WINDOW GLASS ADHESIVE

main56117-97201iM10#,11#199809

12 parts on this diagram · 1 diagram in section
