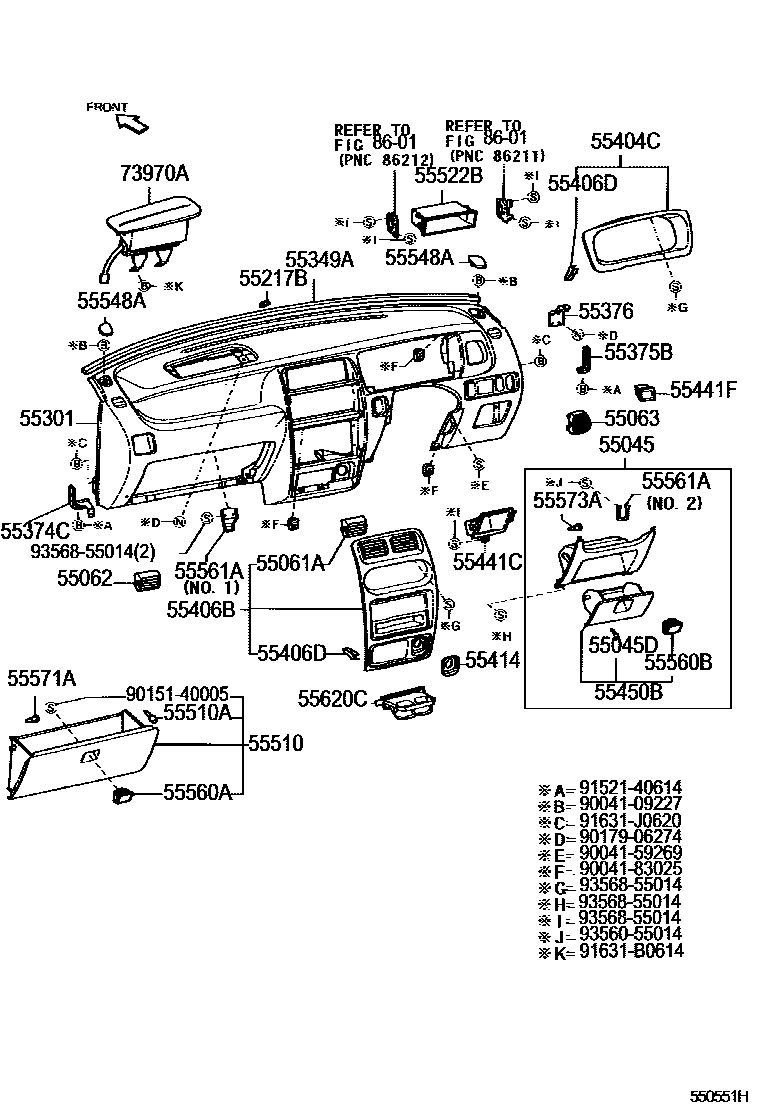

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-97201-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55045-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

main55045-97403-03iM10#,11#200112

GRAY,TRIMS6

main55045-97403-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

55045DCUSHION, GLOVE COMPARTMENT

main90045-40163×2iM10#,11#199809-200112

55061AREGISTER SUB-ASSY, INSTRUMENT PANEL

main55061-97201iM100,110199809-200005

main55061-97201-01iM10#,11#200006-200112

BLACK,TRIMS6,S8

main55061-97401-03iM10#,11#200112

main55061-97401-13iM10#,11#200112

main55063-97402-03iM10#,11#200112

main55063-97402-13iM10#,11#200112

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-87203-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55062-87203-23iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

main55062-97401×2iM10#,11#200112

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-97201iM100,110199809-200005

main55063-97201-03iM10#,11#200005-200112

DARK GRAY,TRIMS6

main55063-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55217BRETAINER, DASH PANEL SILENCER

main55217-97201×3iM10#,11#199809

55301PANEL SUB-ASSY, INSTRUMENT

main55301-97401-03iM10#,11#200112

GRAY,TRIMS6

main55301-97401-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

main55311-97201-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55311-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55349ACUSHION, INSTRUMENT PANEL

main55349-97202iM100,110199903-199906

main55349-97203iM100,110199907-200005

main55349-97401iM10#,11#200005-200112

main55349-97403iM10#,11#200112

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-97203iM10#,11#199809-200112

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-97203iM10#,11#199809

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-97201×2iM10#,11#199809-200112

main55376-97401×2iM10#,11#200112

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-97201iM100,110199809-200005

main55404-97202iM101,111;M100,110..X199809-200012

main55404-97401iM101,111200005-200112

main55404-97407iM10#,11#200005-200112

main55404-97409iM10#,11#..V,VS; M101,111;M100,110..X200012-200112

main55404-97410-03iM10#,11#200112

GRAY,TRIMS6

main55404-97410-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-97201iM100,110199809-200005

main55406-97203iM101,111;M100,110..X199809-200012

main55406-97401iM101,111200005-200112

main55406-97407iM10#,11#200005-200112

main55406-97409iM10#,11#..V,VS; M101,111;M100,110..X200012-200112

main55406-97411iM100,110..V200205

main55406-97412iM101,111..VS200112

main55406-97420iM10#,11#..V200112

55406DCLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

main90044-68091×6iM10#,11#199809-200112

main90044-68306×10iM10#,11#200112

main90044-68324×2iM10#,11#200112

55414BEZEL, CIGAR LIGHTER HOLE

main55414-97201iM10#,11#199809-200112

55441BOX, INSTRUMENT PANEL

main55504-97401-03iM10#,11#200112

GRAY,TRIMS6

main55504-97401-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

55441CBOX, INSTRUMENT PANEL COIN

main55441-97201-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55441-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55441FBOX, INSTRUMENT PANEL COIN

main55441-87401-01iM100,110..V200005-200112

BLACK,TRIMS6,S8

main55441-87401-13iM100,110..V199809-200005

DARK GRAY,TRIMS6

55450BBOX ASSY, COIN

main55450-97201-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55450-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-97201-03iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55501-97201-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

main55501-97403-03iM10#,11#200112

GRAY,TRIMS6

main55501-97403-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90045-40163×2iM10#,11#199809-200112

main90045-40220×2iM10#,11#200112

55522BCOVER, RADIO TUNER OPENING

main55359-97501×2iM10#,11#..X; M100,110..V;M101,111..VS200112

main55522-87209iM100,110..V; M100,110..X199809-200005

55548ACOVER, INSTRUMENT PANEL HOLE

main55545-97201-03iM10#,11#199809-200112

main55545-97201-13iM10#,11#200005-200112

main55545-97402-03iM10#,11#200112

main55545-97402-13iM10#,11#200112

main55546-97201-03iM10#,11#199809-200112

main55546-97201-13iM10#,11#200005-200112

main55546-97401-03iM10#,11#200112

main55546-97401-13iM10#,11#200112

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55506-44010-03iM10#,11#200112

GRAY,TRIMS6

main55506-44010-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

main55560-87702-23iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55560-87702-63iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55560BLOCK ASSY, GLOVE COMPARTMENT DOOR

main55506-97401-03iM10#,11#200112

GRAY,TRIMS6

main55506-97401-13iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

main55560-87702-23iM10#,11#199809-200112

DARK GRAY,TRIMS6

main55560-87702-63iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-97201iM10#,11#199809-200112

main55561-97202iM10#,11#199809-200112

main55561-97402iM10#,11#200112

55571AHINGE, GLOVE COMPARTMENT DOOR

main55571-87101iM10#,11#199809-200112

55573AHINGE, GLOVE COMPARTMENT DOOR

main55571-87101iM10#,11#199809-200112

main55573-97401-03×2iM10#,11#200112

GRAY,TRIMS6

main55573-97401-13×2iM10#,11#200112

LIGHT GREENISH GRAY,TRIMS8

55620CHOLDER, INSTRUMENT PANEL CUP

main55620-97201iM100,110199809-200005

main55620-97201-01iM10#,11#200005

BLACK,TRIMS6

main55620-97201-03iM10#,11#200005

LIGHT GREENISH GRAY,TRIMS8

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-97201-03iM100,110199809-200005

DARK GRAY,TRIMS6

main73970-97403-03iM10#,11#200005-200112

DARK GRAY,TRIMS6

main73970-97403-13iM10#,11#200005-200112

LIGHT GREENISH GRAY,TRIMS8

main73970-97405iM10#,11#200112

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9004109227

main90041-09227

9004159269

main90041-59269

9004183025

main90041-83025

9015140005

main90151-40005

9017906274

main90179-06274

9152140614

main91521-40614

91631B0614

main91631-B0614

91631J0620

main91631-J0620

9356055014

main93560-55014

9356855014

main93568-55014

41 parts on this diagram · 5 diagrams in section
