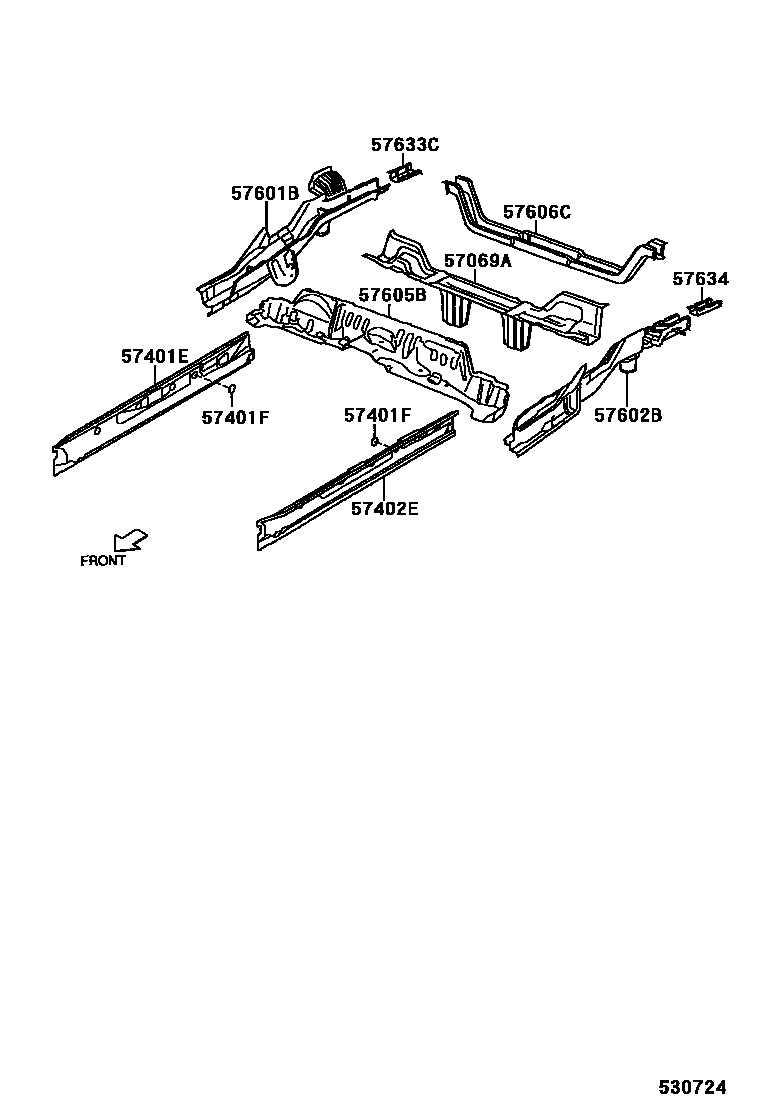

FLOOR SIDE MEMBER

57069AMEMBER, REAR FLOOR, CENTER

main57069-97201iM100199809-200005

main57069-97202iM110199809-200005

main57069-97407iM10#200005

main57069-97408iM11#200005

57401EMEMBER ASSY, FLOOR SIDE, RH

main57401-97201iM100,110199809-200005

main57401-97401iM10#,11#200005

57401FPLUG, HOLE

main90048-71116×8iM10#,11#199809

57402EMEMBER ASSY, FLOOR SIDE, LH

main57402-97201iM100,110199809-200005

main57402-97401iM10#,11#200005

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-97201iM100199809-200005

main57601-97202iM110199809-200005

main57601-97405iM10#200005

main57601-97406iM11#200005

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-97201iM100199809-200005

main57602-97202iM110199809-200005

main57602-97405iM10#200005

main57602-97406iM11#200005

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-97201iM100199809-200005

main57605-97202iM110199809-200005

main57605-97401iM10#200005

main57605-97402iM11#200005

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-97201iM10#199809

main57606-97202iM11#199809

57633CEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-97201iM10#,11#199809

57634EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-97201iM10#,11#199809

10 parts on this diagram · 1 diagram in section
