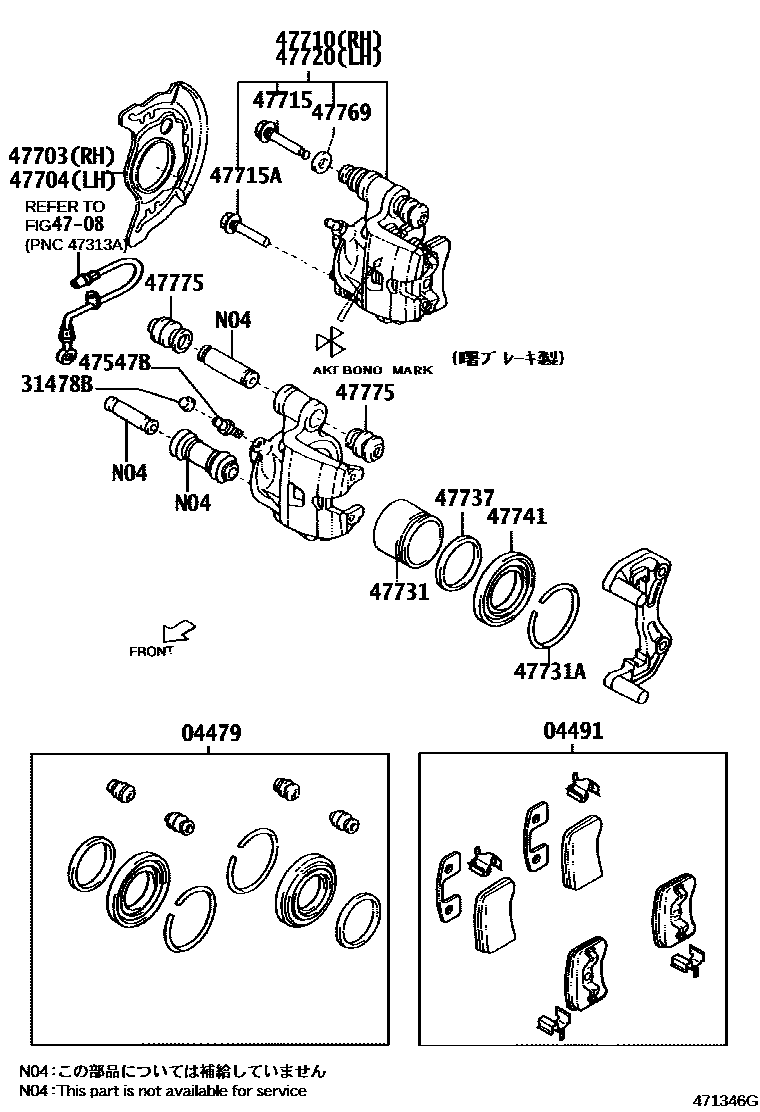

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-97201iM10#,11#199809-200112

main04479-97401iM101,111..VS200112

04491PAD KIT, DISC BRAKE, FRONT

main04491-97201iM100,110199809-200005

main04491-97401iM10#,11#200005-200112

main04491-97402iM101,111..VS200112

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-87303×2iM10#,11#199809-200112

main47548-97401×2iM101,111..VS200112

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87207×2iM10#,11#199809-200112

main47547-97401×2iM101,111..VS200112

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-97201iM10#,11#199809-200112

main47781-97401iM101,111..VS200112

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-97201iM10#,11#199809-200112

main47782-97401iM101,111..VS200112

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-97201iM100,110199809-200005

main47710-97401iM10#,11#200005-200112

main47710-97402iM101,111..VS200112

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-97202×2iM10#,11#199809-200112

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-97201×2iM10#,11#199809-200112

main47715-97401×4iM101,111..VS200112

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-97201iM100,110199809-200005

main47720-97401iM10#,11#200005-200112

main47720-97402iM101,111..VS200112

47731PISTON, FRONT DISC BRAKE

main47731-97201×2iM10#,11#199809-200112

main47731-97401×2iM101,111..VS200112

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90045-22017×2iM10#,11#199809-200112

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97201×2iM10#,11#199809-200112

main47737-97401×2iM101,111..VS200112

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-87202×2iM10#,11#199809-200112

main47741-97401×2iM101,111..VS200112

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-97201×2iM10#,11#199809-200112

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-97201×4iM10#,11#199809-200112

main47775-97401×4iM101,111..VS200112

17 parts on this diagram · 2 diagrams in section
