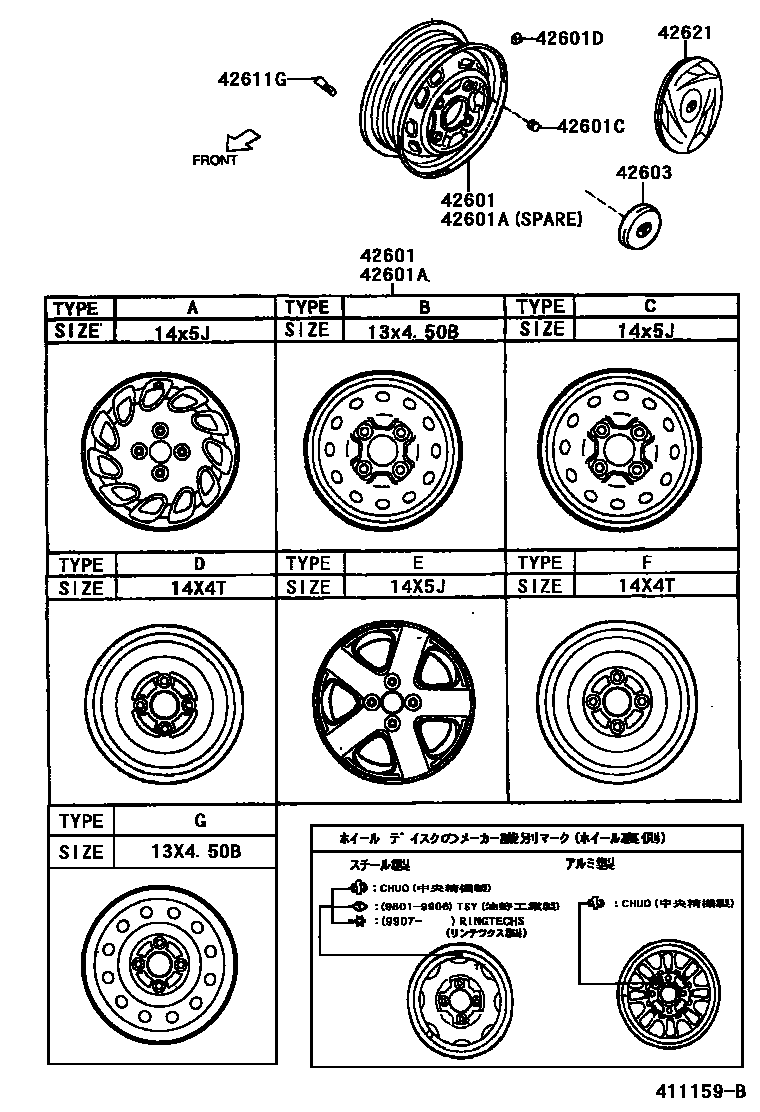

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-97204×4iM10#,11#199809-200112

main42611-97205×4iM100,110..LVVT;M10#,11#..(V,VS)..WVVT199809-200112

main42611-97206×4iM101,111;M100,110..LVVT;M100,110..X..WVVT199809-200102

main42611-97226×4iM100,110..LVVT;M10#,11#..(V,VS)..WVVT199811-200112

main42611-97403×4iM101,111..VS;M101,111..4AT200005

main42611-97407×4iM10#,11#..V,X200206

42601AWHEEL, DISC (FOR SPARE)

main42611-97201iM100,110199809-200001

main42611-97236iM10#,11#200002

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iM10#,11#..V,X200112

main90049-11047×16iM10#,11#199809

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90049-14024iM10#,11#199809-200012

main90049-14034iM10#,11#199809-200010

main90049-14035iM10#,11#199809-200010

main90049-14036iM10#,11#199809-200012

main90049-14037iM10#,11#..V,X200112

main90049-14038iM10#,11#199809-200012

main90049-14039iM10#,11#199809-200010

main90049-14040iM10#,11#199809-200010

main90049-14041iM10#,11#199809-200010

main90049-14042iM10#,11#199809-200010

main90049-14043iM10#,11#..V,X200112

main90049-14044iM10#,11#199809-200012

main90049-14045iM10#,11#199809-200010

main90049-14046iM10#,11#199809-200010

main90049-14047iM10#,11#199809-200010

main90049-14048iM10#,11#199809

main90049-14049iM10#,11#199809

main90049-14050iM10#,11#199809

main90049-14051iM10#,11#199809-200010

main90049-14052iM10#,11#199809-200010

main90049-14053iM10#,11#199809-200010

main90049-14054iM10#,11#199809

main90049-14055iM10#,11#199809

main90049-14084iM10#,11#199809-200112

main90049-14146iM10#,11#200112

main90049-14147iM10#,11#200011

main90049-14148iM10#,11#200011

main90049-14149iM10#,11#200011

main90049-14150iM10#,11#200011

main90049-14151iM10#,11#200011

main90049-14152iM10#,11#200011

main90049-14161iM10#,11#200011-200112

main90049-14163iM10#,11#..V,X200112

main90049-14165iM10#,11#200011-200112

main90049-14167iM10#,11#..V,X200112

main90049-14169iM10#,11#200011-200112

main90049-14171iM10#,11#..V,X200112

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-97205×4iM10#,11#..V,X200112

main42638-97402×4iM10#,11#200112

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iM10#,11#199809

42621CAP, WHEEL

main42602-97213×4iM100,110..LVVT;M10#,11#..(V,VS)..WVVT199809-200112

main42602-97214×4iM100,110..LVVT;M100,110..X..WVVT199809-200112

main42602-97401×4iM10#,11#..V,VS200012-200112

main42602-97404×4iM101,111200005-200112

7 parts on this diagram · 2 diagrams in section
