Toyota DUET — TRANSFER CASE & EXTENSION HOUSING

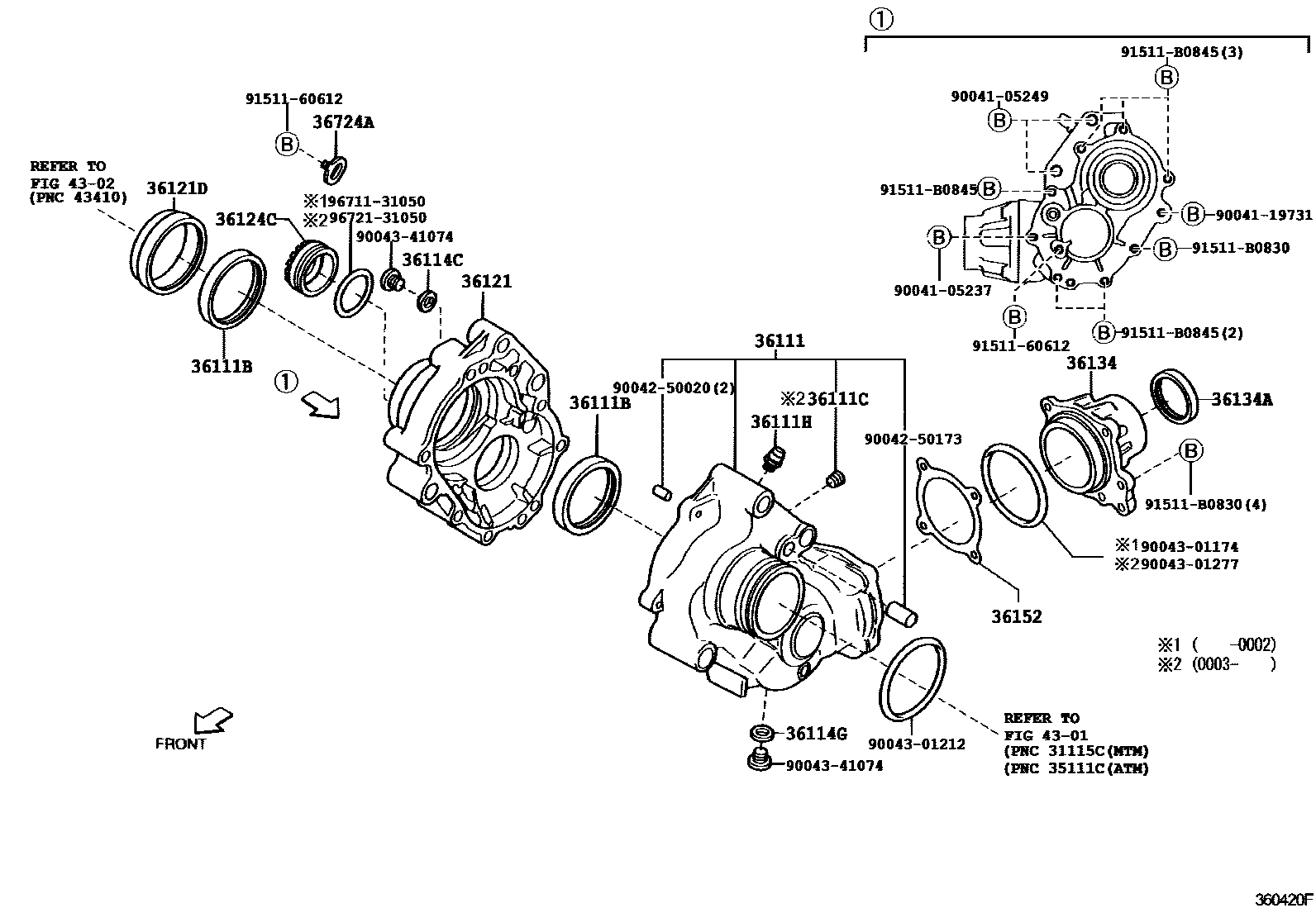

Parts diagram

36111CASE, TRANSFER

36111BSEAL, OIL (FOR TRANSFER CASE)

36111CPLUG (FOR TRANSFER CASE)

36111HPLUG, BREATHER (FOR TRANSFER CASE)

36114CGASKET, NO.1 (FOR TRANSFER CASE)

36114GGASKET (FOR TRANSFER DRAIN PLUG)

36121COVER, TRANSFER CASE, NO.1

36121DSEAL, OIL(FOR TRANSFER CASE COVER)

36124CCOVER, TRANSFER BEARING ADJUSTING

36134RETAINER, OUTPUT SHAFT BEARING, FRONT

36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)

36152GASKET, OUTPUT SHAFT BEARING RETAINER

36724APLATE, TRANSFER BEARING ADJUSTING NUT LOCK

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9004105237

9004105249

9004119731

9004250020

9004250173

9004301174

9004301212

9004301277

9004341074

9151160612

91511B0830

91511B0845

9671131050

9672131050

29 parts on this diagram · 2 diagrams in section

TRANSFER CASE & EXTENSION HOUSING for Toyota DUET

This section contains 32 genuine Toyota parts for the TRANSFER CASE & EXTENSION HOUSING system of the Toyota DUET. Key components include: CASE, TRANSFER, SEAL, OIL (FOR TRANSFER CASE), PLUG (FOR TRANSFER CASE), PLUG, BREATHER (FOR TRANSFER CASE), GASKET, NO.1 (FOR TRANSFER CASE).
