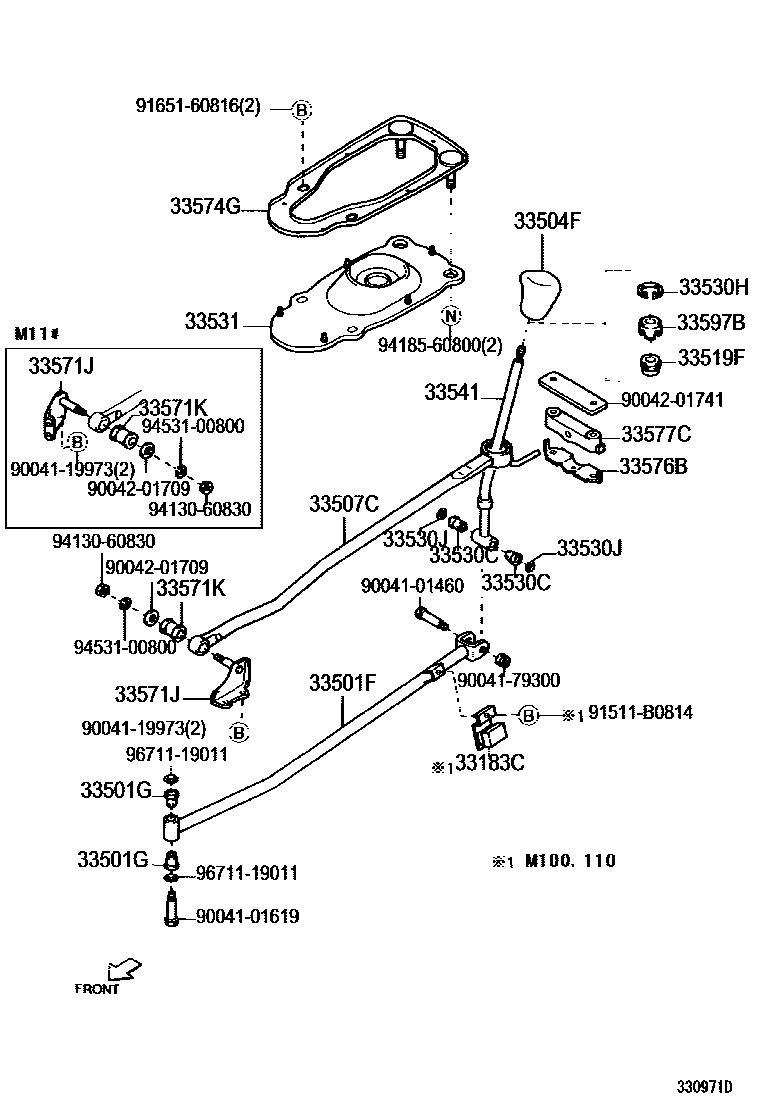

SHIFT LEVER & RETAINER

0001 1 0002 1

33183CDAMPER, DYNAMIC

main33183-97203iM100,110..5F199809

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-97201iM10#..5F199809-200112

main33501-97202iM110..5F199809-200005

main33501-97205iM10#..5F200112

main33501-97401iM11#..5F200005-200112

main33501-97403iM11#..5F200112

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90043-86119×2iM10#,11#..5F199809-200207

main90043-86124×2iM10#,11#..5F200208

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-87218-23iM10#,11#..5F199809

DARK GRAY,TRIMS6,S8

main33504-87218-33iM10#,11#..5F200005

GRAY,TRIMS8

33507CROD SUB-ASSY, EXTENSION

main33507-97201iM100..5F199809

main33507-97202iM11#..5F199809

main33507-97401iM101..5F200005

33519FBOOT, CONTROL SHAFT DUST

main33519-87705iM10#,11#..5F199809

33530CBUSH (FOR SHIFT LEVER)

main90043-86105×2iM10#,11#..5F199809

33530HRING, SNAP (FOR SHIFT LEVER)

main96151-03200iM10#,11#..5F199809

33530JRING, O (FOR SHIFT LEVER)

main96711-19014×2iM10#,11#..5F199809

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-97201iM10#,11#..5F199809

33541LEVER, SHIFT

main33541-97201iM100,110..5F199809

main33541-97401iM101,111..5F200005

33571JSUPPORT BRACKET, CONTROL SHAFT

main33571-97201iM100..5F199809

main33571-97202iM110..5F199809

main33571-97404iM101..5F200005

main33571-97405iM111..5F200005

33571KBUSH(FOR CONTROL SHAFT SUPPORT BRACKET)

main90043-85159iM101,111..5F200005

main90043-85169iM100,110..5F199809

33574GRETAINER, SHIFT LEVER BOOT

main33574-97202iM10#,11#..5F199809

33576BBRACKET, FLOOR SHIFT SUPPORT

main33576-97201iM10#,11#..5F199809

33577CSUPPORT, FLOOR SHIFT NO.1

main33577-97201iM10#,11#..5F199809

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

main33597-87702iM10#,11#..5F199809

9004101460

main90041-01460

9004101619

main90041-01619

9004119973

main90041-19973

9004179300

main90041-79300

9004201709

main90042-01709

9004201741

main90042-01741

91511B0814

main91511-B0814

9165160816

main91651-60816

9413060830

main94130-60830

9418560800

main94185-60800

9453100800

main94531-00800

9671119011

main96711-19011

29 parts on this diagram · 2 diagrams in section
