VACUUM PIPING

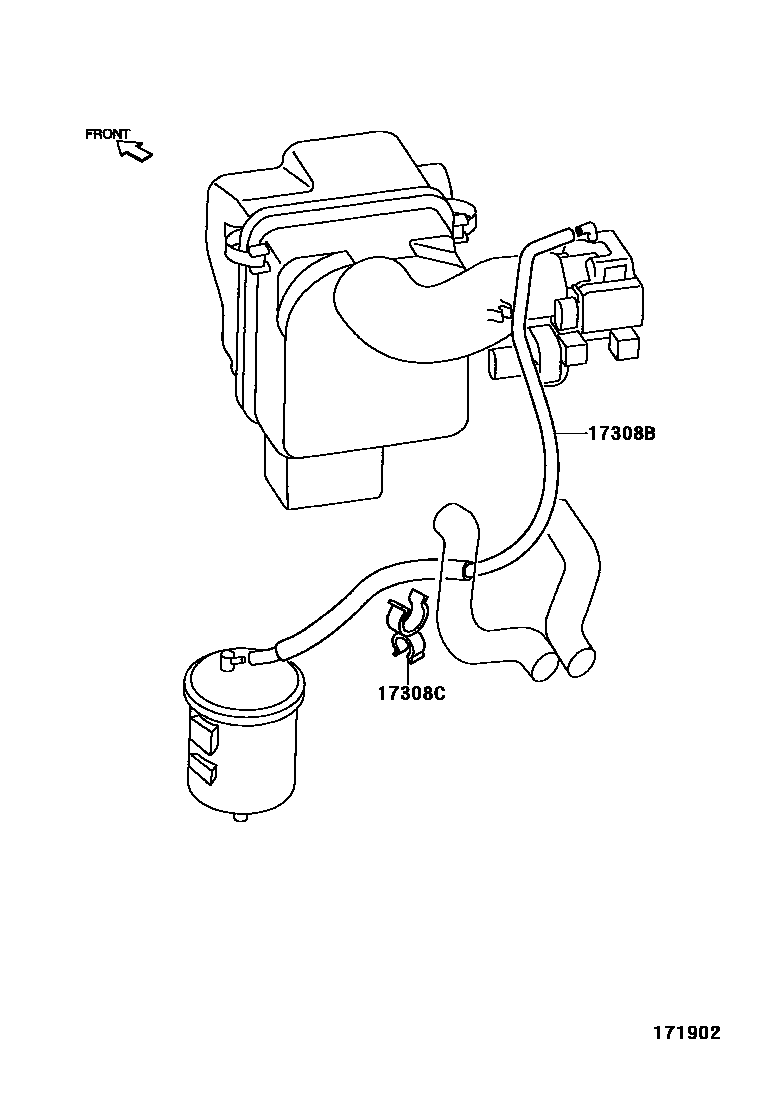

Parts diagram

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-97207i200005-200108

main17308-97212i200108

17308BHOSE SUB-ASSY, VACUUM

main17308-97201i199809-200005

main17308-97206i200005-200108

main17308-97211i200108

17308CCLAMP(FOR VACUUM HOSE)

main90044-64398i200005

main90044-64493i199809-200005

3 parts on this diagram · 2 diagrams in section
