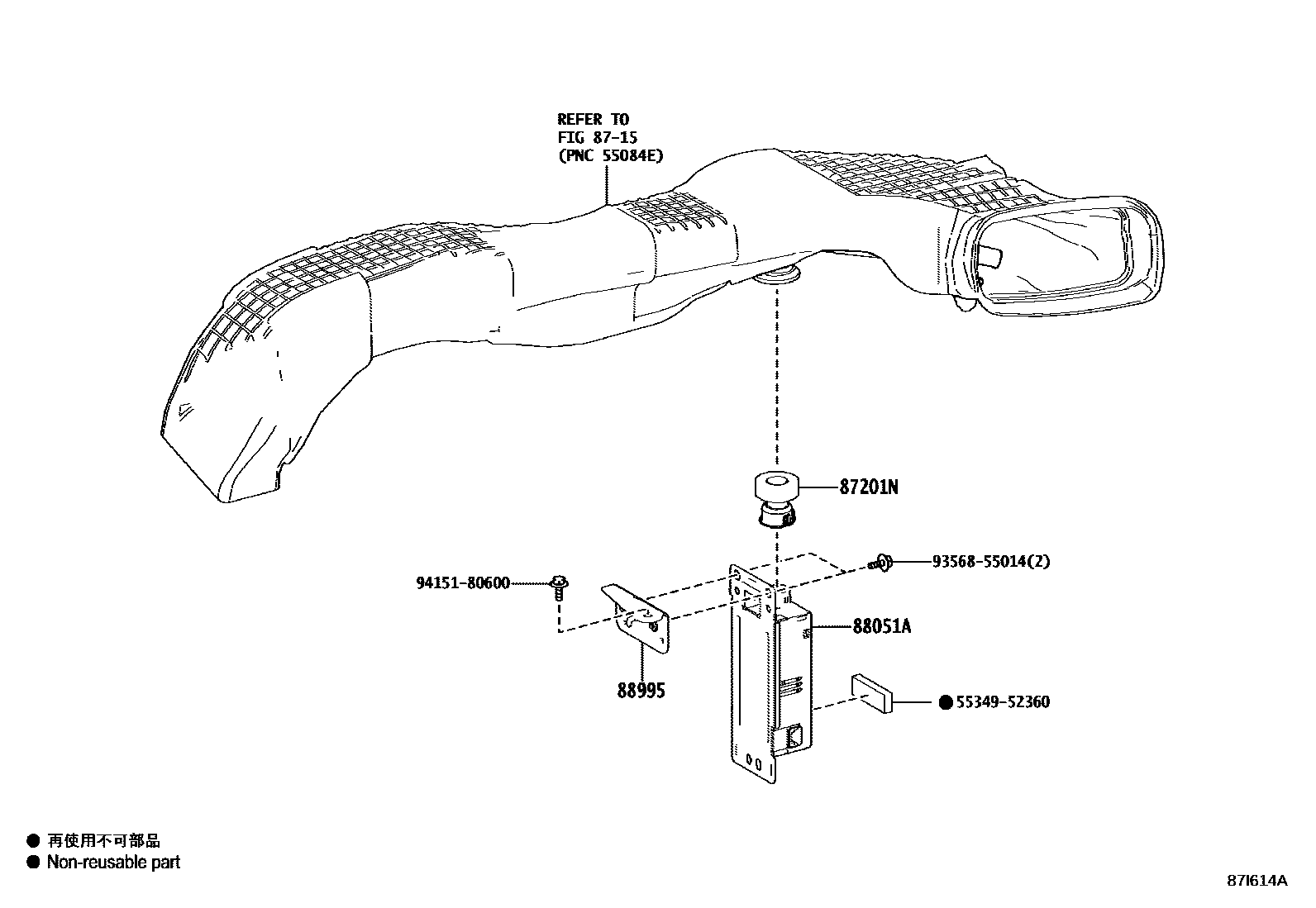

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-K0010iMXPA1#..Z202002-202401

88051AGENERATOR SUB-ASSY,ION

main88051-28060iMXPA1#,MXPH1#..HBDZ,Z202002-202105

main88051-48010iKSP210,MXPA1#..G; MXPA1#..Z202105-202401

88995BRACKET,ION GENERATOR, NO.1

main88995-K0010iMXPA1#..Z202002-202401

5534952360GARNISH, INSTRUMENT PANEL SIDE, LH

main55349-52360

9356855014

main93568-55014

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
