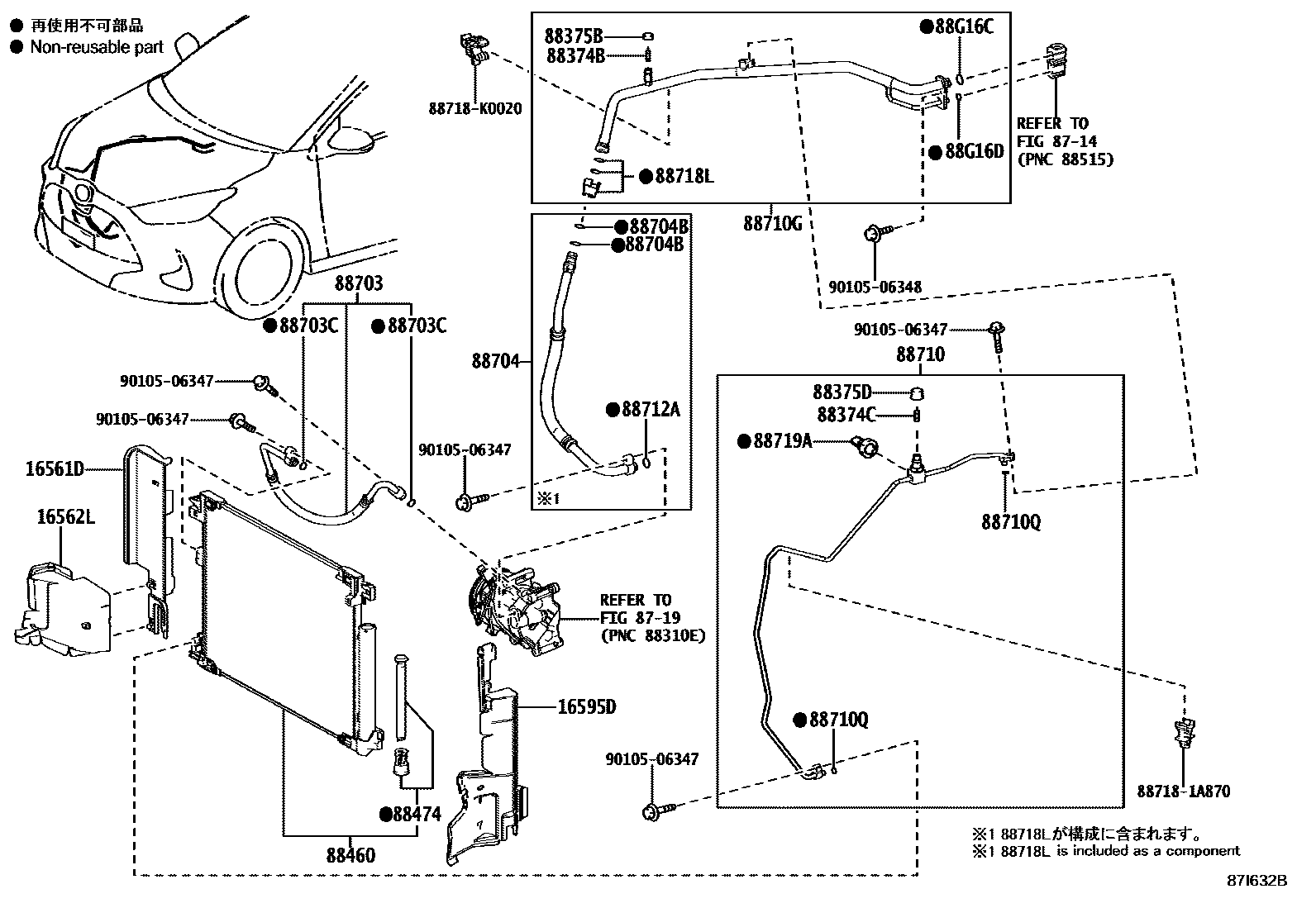

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

16561DSEAL, RADIATOR TO SUPPORT, NO.1

main16561-15010iM15AFKS..MXPA1#202002-202401

main16561-40060i1KRFE..KSP210202002-202401

16562LSEAL, RADIATOR TO SUPPORT, NO.2

main16562-15030iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

main16562-15040iM15AFXE..MXPH10,15202002

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-15020iM15AFXE..MXPH10,15202002-202401

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iKSP210,MXPA1#202002-202401

88374CVALVE, SERVICE, NO.2

main88374-30010iKSP210,MXPA1#202002-202401

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iKSP210,MXPA1#202002-202401

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iKSP210,MXPA1#202002-202401

88460CONDENSER ASSY, COOLER

main884A0-52020iMXPH10,15202002

main884A0-52030iKSP210,MXPA1#202002-202401

88474DRYER, COOLER

main88474-12010iKSP210,MXPA1#202002-202401

main88474-12020iMXPH10,15202002

88703HOSE SUB-ASSY, DISCHARGE

main88711-K0050iKSP210202002-202401

main88711-K0060iMXPA1#202002-202401

main88711-K0070iMXPH10,15202002

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iKSP210,MXPA1#,MXPH14,17202002-202401

88704HOSE SUB-ASSY, SUCTION

main88704-K0040iKSP210202002-202401

main88704-K0050iMXPA1#202002-202401

main88704-K0060iMXPH10,15202002

88704BRING, O(FOR SUCTION HOSE)

main90099-14157iKSP210,MXPA1#202002-202401

88710TUBE ASSY, AIR CONDITIONER

main88710-K0260iKSP210202002-202401

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-K0210iKSP210202002-202401

88710QRING, O(FOR TUBE ASSY, AIR CONDITIONER)

main90099-14119iKSP210202002-202401

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iKSP210,MXPA1#202002-202401

main90099-14121iKSP210,MXPA1#,MXPH14,17202401

88718LCLAMP, PIPING

main88718-52280iKSP210,MXPA1#202002-202401

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iKSP210,MXPA1#202002-202401

88G16CRING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)

main90099-14121iKSP210202002-202401

88G16DRING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)

main90099-14119iKSP210202002-202401

887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A870

88718K0020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-K0020

9010506347

main90105-06347

9010506348

main90105-06348

27 parts on this diagram · 3 diagrams in section
