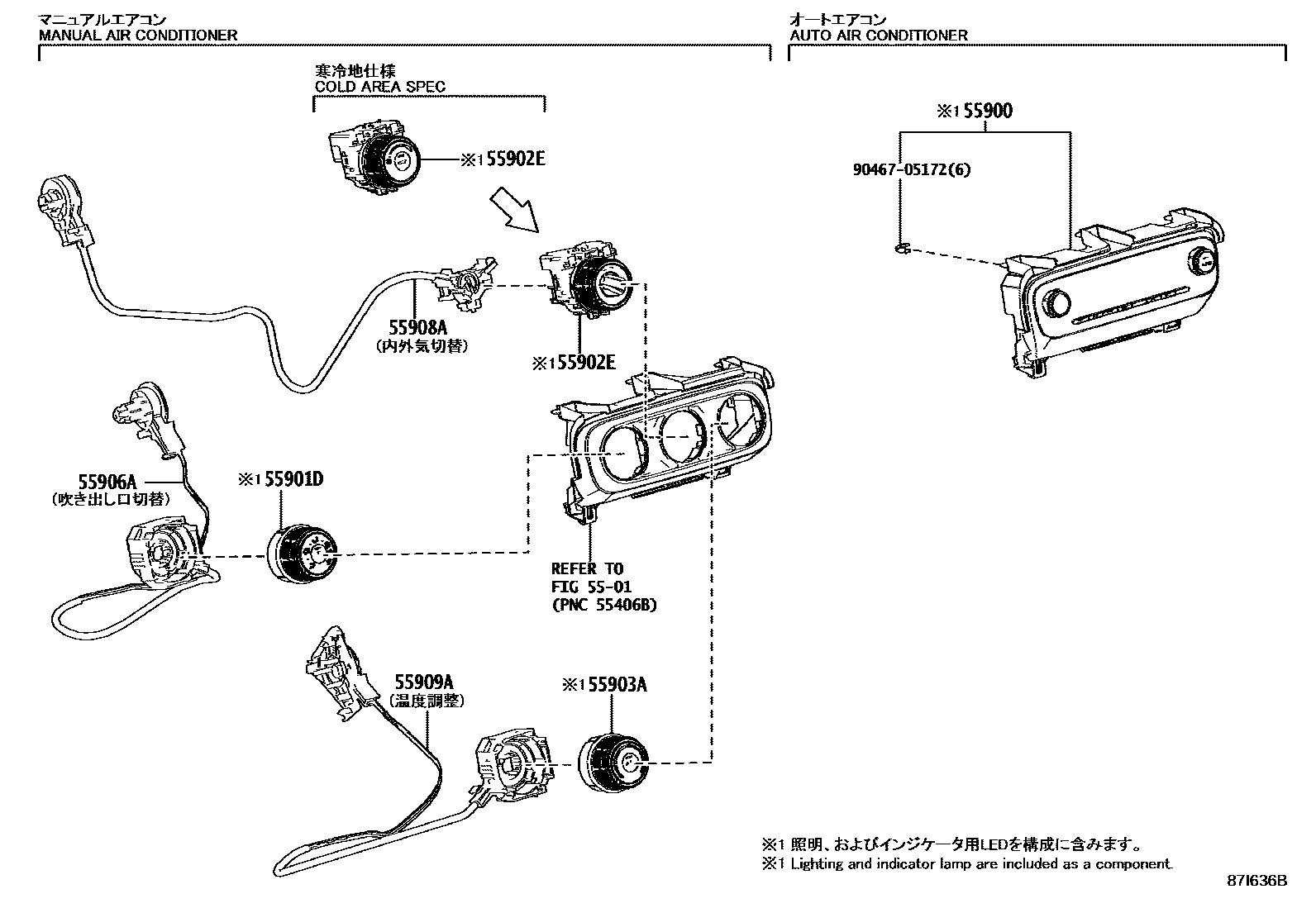

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1HEATER CONTROL PANEL 0004 1AIR DUCT 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-52D90iMXPH14,17..U; MXPH14,17..U,X; MXPH14,17..X202401-202503

main55900-52E10iKSP210,MXPA1#,MXPH14,17..G,Z; KSP210,MXPA1#..G,Z; MXPH14,17..G,Z202401-202503

main55900-K0040supersedes 55900-K0240iMXPH10,15..HBDX202002-202105

main55900-K0041iMXPH10,15..HBDX202212

main55900-K0060iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z; KSP210,MXPA1#..CVT..(G,Z); MXPA10..6F..(G,Z); MXPH10,15..HBDG,HBDZ202002-202105

main55900-K0061iMXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ; MXPH10,15..HBDZ202105

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-12340supersedes 55901-K0030iKSP210..X; MXPA1#..X202002-202105

main55901-52430iKSP210,MXPA1#..X202401

main55901-K0030iMXPA1#..X202002-202401

main55901-12280iKSP210..X202401

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-26150supersedes 55902-K0030iKSP210..X; MXPA1#..X202002-202105

main55902-52360iKSP210,MXPA1#..X202401

main55902-K0030iMXPA1#..X202002-202401

main55902-12410iKSP210..X202401

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12380iMXPA1#..X202401

main55903-12390iMXPA1#..X202002-202401

main55903-26140iKSP210..X202002-202401

main55903-52590iKSP210..X202401

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-K0010iKSP210,MXPA1#..X202002-202004

main55906-K0011iKSP210,MXPA1#..X202005-202401

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-K0010iMXPA1#..X202002-202401

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-K0010iKSP210,MXPA1#..X202002-202004

main55909-K0011iKSP210,MXPA1#..X202005-202401

9046705172

main90467-05172

9 parts on this diagram · 5 diagrams in section
