MIRROR

0001 1 0002 1 0003 1

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

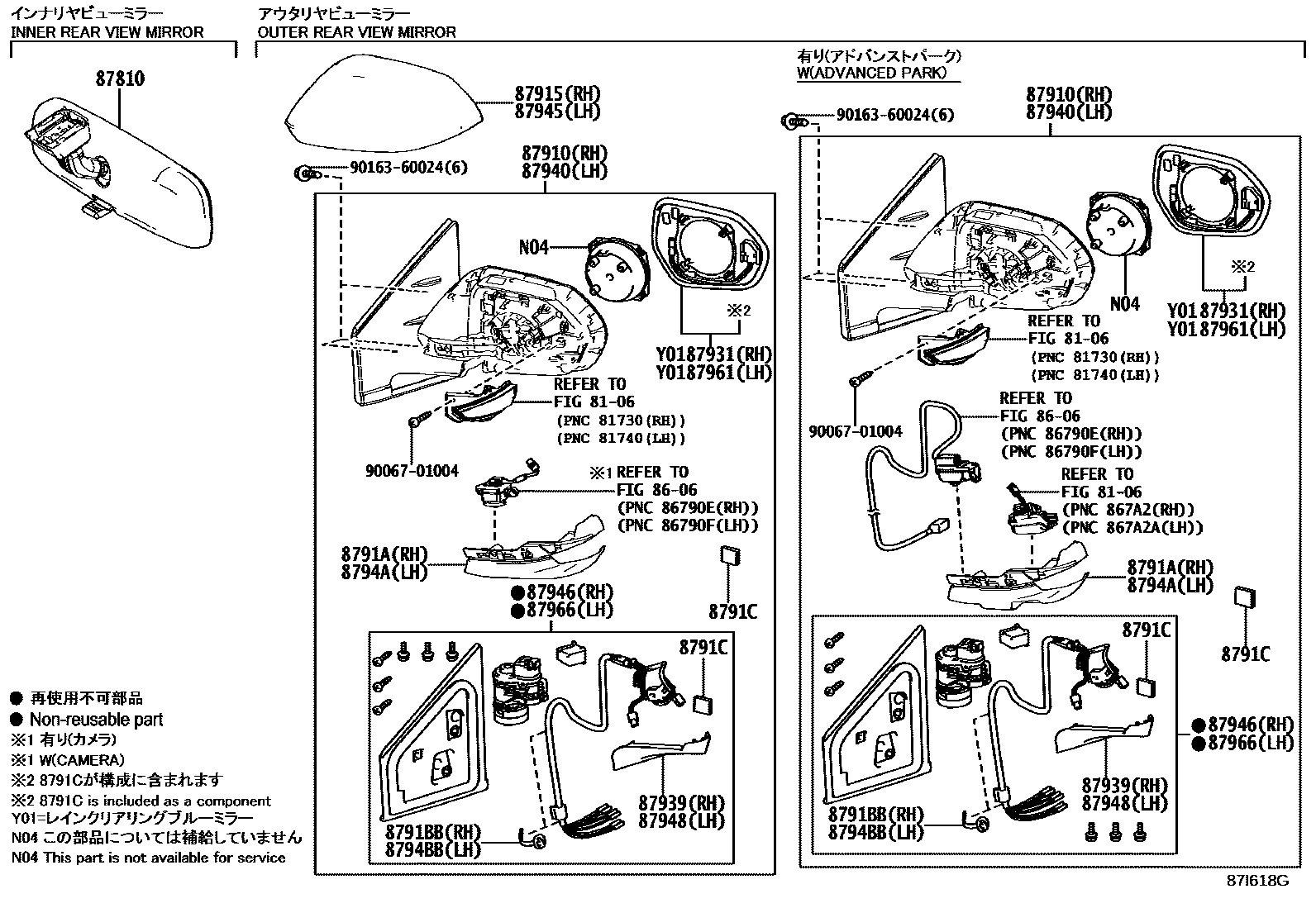

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140iKSP210,MXPA1#,MXPH14,17202401

main87810-52041iMXPH10,15..HBDX202002

main87840-0W370iKSP210,MXPA1#,MXPH1#202208-202311

main87840-0W371supersedes 87810-28140iKSP210,MXPA1#202312-202401

main87840-0W610iKSP210,MXPA1#,MXPH14,17..G,Z202501

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52N40iKSP210,MXPA1#,MXPH14,17..G,Z; MXPA10..6F..(G,Z);KSP210,MXPA1#,MXPH14,17..CVT..(G,X,Z)202401-202502

main87910-52N50iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401-202503

main87910-52N60iMXPH14,17..U; MXPH14,17..U,Z202401

main87910-K0050supersedes 87910-K0310iKSP210,MXPA1#,MXPH14,17202401-202503

main87910-K0070iKSP210,MXPA1#,MXPH14,17..CVT..(G,U,Z); KSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401-202503

main87910-K0320supersedes 87910-K0310iKSP210,MXPA1#,MXPH1#202002-202208

main87910-K0321iKSP210,MXPA1#,MXPH10,15..G,HBDG,HBDZ,Z202208

main87910-K0330iKSP210,MXPA1#,MXPH1#..CVT; MXPA10..6F202002-202208

main87910-K0331iMXPA10..6F..(G,Z)202208-202401

main87910-K0340iMXPH10,15..HBDZ202105

main87910-K0350iMXPH10,15..HBDG,HBDZ202002

87915COVER, OUTER MIRROR, RH

main87915-K0010-A0iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-A3iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-B1iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-B2iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-C0iKSP210,MXPA1#..CVT..X; KSP210,MXPA1#..G,X; MXPA1#..Z; MXPH14,17..G,U,X; MXPH14,17..U; MXPH14,17..Z202401

main87915-K0010-D1iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-D3iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-E0iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87915-K0010-A1iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87915-K0010-A2iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(G,HBDX,X,Z); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDZ202002-202105

main87915-K0010-B0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87915-K0010-D0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(G,HBDX,X,Z); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDZ202002-202105

main87915-K0010-D2iKSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); KSP210,MXPA1#,MXPH1#..HBDX,X; MXPA10..6F..X; MXPH1#..HBDX202002-202208

main87915-K0010-G0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87915-K0010-J0iMXPH10,15; MXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ; MXPH10,15..HBDX202002

main87915-K0010-J1iKSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); KSP210,MXPA1#,MXPH1#..HBDX,X; MXPA10..6F..X; MXPH1#..HBDX202002-202208

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-K0310iKSP210,MXPA1#202002-202401

main8791A-52N40iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401-202503

main8791A-52N60iMXPH14,17..U; MXPH14,17..U,Z202401

main8791A-K0321iKSP210,MXPA1#..CVT..(G,Z); KSP210,MXPA1#..G,Z; MXPA10..6F..(G,Z)202002-202401

main8791A-K0340iMXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ202002

8791BBSTAY, OUTER MIRROR, RH

main8791B-K0310×2iKSP210,MXPA1#,MXPH14,17202401

8791CSEAL, OUTER MIRROR

main8791C-K0310×6iKSP210,MXPA1#,MXPH1#202002-202006

87931OUTER MIRROR, RH

main87931-K0050supersedes 87931-K0310iMXPH10,15; MXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ202002

main87931-K0070iKSP210,MXPA1#..CVT..(G,Z); KSP210,MXPA1#..CVT..X; MXPA10..6F; MXPA10..6F..(G,Z)202002-202401

87939COVER, OUTER MIRROR HOLE, RH

main87939-K0310iKSP210,MXPA1#,MXPH14,17202401

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52N50iKSP210,MXPA1#,MXPH14,17..G,Z; MXPA10..6F..(G,Z);KSP210,MXPA1#,MXPH14,17..CVT..(G,X,Z)202401-202502

main87940-52N60iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401

main87940-52N70iMXPH14,17..U; MXPH14,17..U,Z202401

main87940-K0050supersedes 87940-K0370iKSP210,MXPA1#,MXPH10,15202002

main87940-K0070iKSP210,MXPA1#,MXPH14,17..CVT..(G,U,Z); KSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401-202503

main87940-K0380supersedes 87940-K0370iKSP210,MXPA1#,MXPH1#202002-202208

main87940-K0381iKSP210,MXPA1#,MXPH10,15..G,HBDG,HBDZ,Z202208

main87940-K0390iKSP210,MXPA1#,MXPH1#..CVT; MXPA10..6F202002-202208

main87940-K0391iKSP210,MXPA1#,MXPH10,15..CVT..(G,HBDG,HBDZ,Z)202208

main87940-K0400iMXPH10,15..HBDZ202105

main87940-K0410iMXPH1#..HBDX202002-202208

87945COVER, OUTER MIRROR, LH

main87945-K0010-A0iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-A3iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-B1iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-B2iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-C0iKSP210,MXPA1#..CVT..X; KSP210,MXPA1#..G,X; MXPA1#..Z; MXPH14,17..G,U,X; MXPH14,17..U; MXPH14,17..Z202401

main87945-K0010-D1iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-D3iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-E0iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main87945-K0010-A1iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87945-K0010-A2iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(G,HBDX,X,Z); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDZ202002-202105

main87945-K0010-B0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87945-K0010-D0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(G,HBDX,X,Z); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDZ202002-202105

main87945-K0010-D2iMXPH10,15; MXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ; MXPH10,15..HBDX202002

main87945-K0010-G0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH1#..CVT; KSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F; MXPH1#; MXPH1#..HBDG,HBDX; MXPH1#..HBDG,HBDZ202002-202208

main87945-K0010-J0iKSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); KSP210,MXPA1#,MXPH1#..HBDX,X; MXPA10..6F..X; MXPH1#..HBDX202002-202208

main87945-K0010-J1iMXPH10,15; MXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ; MXPH10,15..HBDX202002

87946RETRACTOR, OUTER MIRROR, RH

main87946-52N40iKSP210,MXPA1#,MXPH14,17..G,Z; MXPA10..6F..(G,Z);KSP210,MXPA1#,MXPH14,17..CVT..(G,X,Z)202401-202502

main87946-52N50iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401

main87946-52N60iMXPH14,17..U; MXPH14,17..U,Z202401

main87946-K0050supersedes 87946-K0310iKSP210,MXPA1#202002-202401

main87946-K0070iKSP210,MXPA1#..CVT..X; MXPA10..6F202002-202401

main87946-K0320iKSP210,MXPA1#,MXPH1#..HBDX,X202002-202208

main87946-K0330iKSP210,MXPA1#..CVT..(G,Z); MXPA10..6F..(G,Z)202002-202401

main87946-K0340iMXPH10,15..HBDG202002

main87946-K0350iMXPH10,15..HBDG,HBDZ202002

87948COVER, OUTER MIRROR HOLE, LH

main87948-K0370iKSP210,MXPA1#,MXPH14,17202401

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-K0370iKSP210,MXPA1#,MXPH14,17; MXPH14,17..U202401

main8794A-52N50iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); KSP210,MXPA1#,MXPH14,17..CVT..X; MXPA10..6F..(G,Z)202401

main8794A-52N70iMXPH14,17..U; MXPH14,17..U,Z202401

main8794A-K0381iMXPH10,15..HBDG,HBDZ202002

main8794A-K0400iMXPH1#..HBDX202002-202208

8794BBSTAY, OUTER MIRROR, LH

main8791B-K0310×2iKSP210,MXPA1#,MXPH14,17202401

87961MIRROR OUTER, LH

main87961-K0050iMXPH10,15; MXPH10,15..HBDG; MXPH10,15..HBDG,HBDZ202002

main87961-K0070iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z); MXPH14,17..U; MXPH14,17..U,Z202401

87966RETRACTOR, OUTER MIRROR, LH

main87966-52N50iKSP210,MXPA1#,MXPH14,17..G,Z; MXPA10..6F..(G,Z);KSP210,MXPA1#,MXPH14,17..CVT..(G,X,Z)202401-202502

main87966-52N60iKSP210,MXPA1#,MXPH14,17..CVT..(G,Z); MXPA10..6F..(G,Z)202401-202503

main87966-52N70iMXPH14,17..U; MXPH14,17..U,Z202401

main87966-K0050supersedes 87966-K0370iKSP210,MXPA1#,MXPH14,17202401-202503

main87966-K0070iMXPH10,15..HBDG,HBDZ; MXPH10,15..HBDX202002

main87966-K0380iKSP210,MXPA1#..CVT..X202212-202401

main87966-K0390iKSP210,MXPA1#,MXPH1#..CVT..(HBDX,X); MXPA10..6F..X202002-202208

main87966-K0400iMXPH10,15..HBDZ202105

main87966-K0410iMXPH10,15..HBDX202002-202208

9006701004

main90067-01004

9016360024

main90163-60024

20 parts on this diagram · 3 diagrams in section
