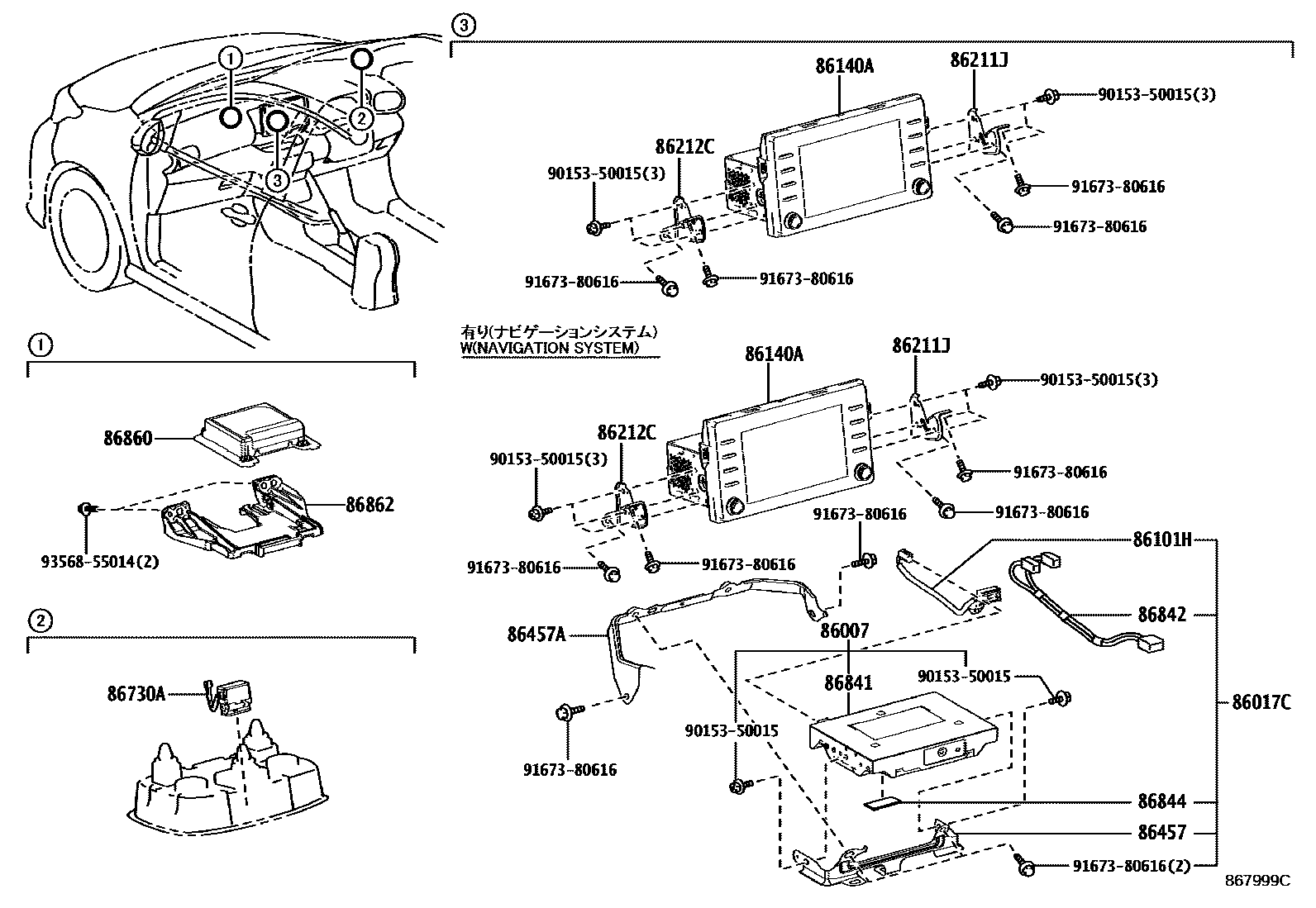

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86007COMPUTER SET, NAVIGATION

main86007-52010

main86007-52020

86017CFITTING SET, NAVIGATION SETTING

86101HCORD SUB-ASSY, ANTENNA

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-52610iKSP210,MXPA1#,MXPH10,15..HBDX,X202002

main86140-52620iKSP210,MXPA1#,MXPH10,15..G,HBDG,HBDZ,Z202002

main86140-52B50iKSP210,MXPA1#,MXPH14,17..X202401-202409

main86140-52B50iKSP210,MXPA1#,MXPH14,17..X202401-202409

main86140-52B51iMXPA1#,MXPH14,17..Z202410-202503

main86140-52B51iMXPA1#,MXPH14,17..Z202410-202503

main86140-K0010iKSP210,MXPA1#,MXPH10,15..HBDX,X202002

main86140-K0020iKSP210,MXPA1#,MXPH10,15..G,HBDG,HBDZ,Z202002

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-52440iKSP210,MXPA1#,MXPH14,17..G,U,Z202401

main86211-K0010iKSP210,MXPA1#,MXPH10,15202002

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-52440iKSP210,MXPA1#,MXPH14,17..G,U,Z202401

main86212-K0010iKSP210,MXPA1#,MXPH10,15202002

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-K0010

main86457-K0110

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-K0110iKSP210,MXPA1#,MXPH10,15202002

86730AMICROPHONE ASSY, TELEPHONE

main86730-16010iKSP210,MXPA1#,MXPH14,17..X202401-202503

main86730-16010iKSP210,MXPA1#,MXPH14,17..X202401-202503

main86730-16010iKSP210,MXPA1#,MXPH14,17..G,U,Z202401

main86730-75010iMXPH10,15202002-202401

86841COMPUTER, NAVIGATION

main86840-K0035

main86840-K0036

main86840-K0037

main86840-K0038

main86840-K0039

main86840-K0045

main86840-K0046

main86840-K0047

main86840-K0048

main86840-K0049

main86007-52050

main86007-52051

main86007-52052

main86007-52053

main86007-52060

main86007-52061

main86007-52062

main86007-52063

86842WIRE, NAVIGATION, NO.1

main86842-K0010

main86842-52100

86844RETAINER, NAVIGATION COMPUTER COVER

main86844-52010

86860ANTENNA ASSY, NAVIGATION

main86880-52010iKSP210,MXPA1#,MXPH10,15202002

main86880-52040iKSP210,MXPA1#,MXPH14,17202401

86862BRACKET, NAVIGATION ANTENNA

main86862-K0010iKSP210,MXPA1#,MXPH10,15202002

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

17 parts on this diagram · 3 diagrams in section
