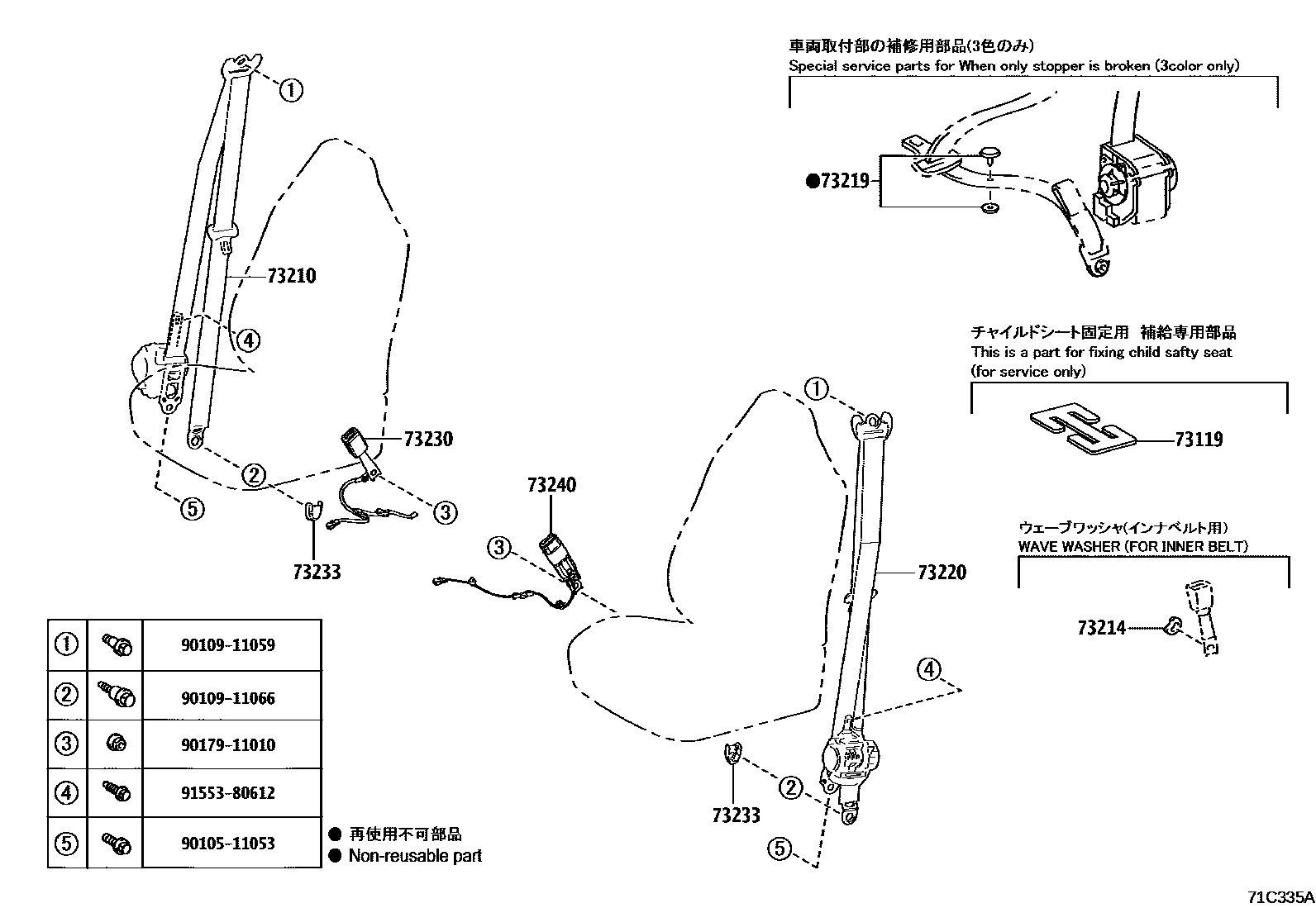

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iKSP210,MXPA1#202002-202401

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-K0020-C0iKSP210,MXPA1#,MXPH14,17..G; KSP210,MXPA1#,MXPH14,17..U,X,Z202401

BLACK,TRIM2#; BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iKSP210,MXPA1#,MXPH10,15; KSP210,MXPA1#,MXPH10,15..G,HBDG,HBDX,X202002

73219STOPPER, TONGUE PLATE

main73219-33010iKSP210,MXPA1#202002-202401

main73219-33020iMXPH10,15202002

main73219-33030iKSP210,MXPA1#202002-202401

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-K0020-C0iKSP210;MXPA1#..X; MXPA1#..G; MXPA1#..Z202002-202401

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-K0050-C0iMXPA1#,MXPH10,15..CVT..(G,HBDG); MXPA1#..X;MXPA10..6F..G;KSP210,MXPH10,15..G,HBDX,X202002

main73230-K0100-C0iMXPA1#,MXPH10,15..G,HBDG; MXPA1#,MXPH10,15..HBDZ,Z202002

main73230-52A90-C0supersedes 73230-K0050-C0iKSP210,MXPA1#,MXPH14,17..G; KSP210,MXPA1#,MXPH14,17..X; MXPA10..G,X202401

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iMXPH10,15..HBDG; MXPH10,15..HBDX; MXPH10,15..HBDZ202002

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-K0080-C0iKSP210,MXPA1#,MXPH14,17..G; KSP210,MXPA1#,MXPH14,17..U,X,Z; MXPA10..G; MXPA10..X; MXPH14,17..U202401

main73230-52C30-C0iKSP210,MXPA1#,MXPH1#; KSP210,MXPA1#,MXPH10,15..G,HBDG,HBDX,X202002

9010511053

main90105-11053

9010911059

main90109-11059

9010911066

main90109-11066

9017911010

main90179-11010

9155380612

main91553-80612

13 parts on this diagram · 2 diagrams in section
