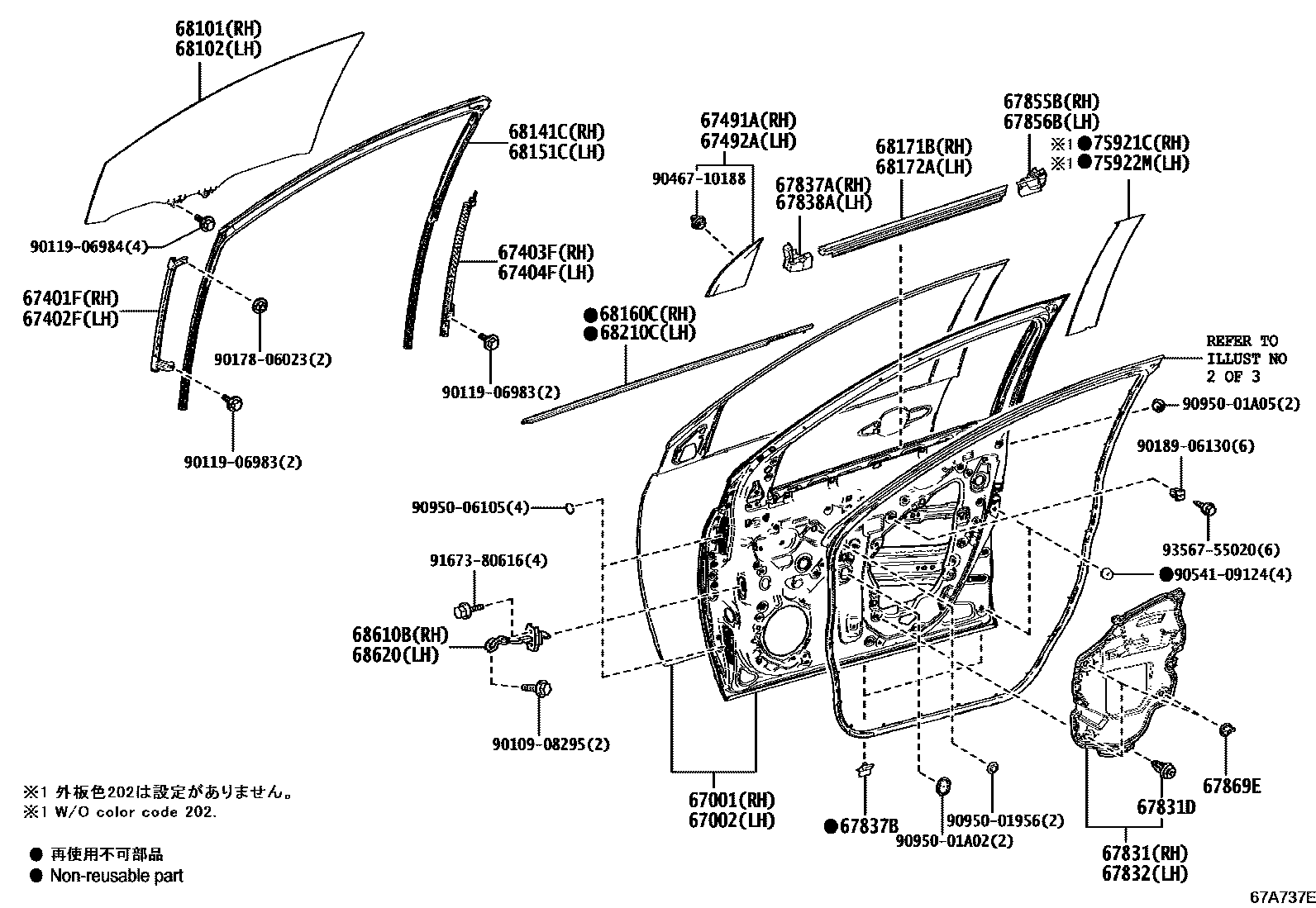

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������������� 0003 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-K0010iKSP210,MXPA1#,MXPH14,17202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-K0010iKSP210,MXPA1#202002-202401

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-K0010iKSP210,MXPA1#202002-202401

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-K0010iKSP210,MXPA1#,MXPH14,17202401

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-K0010iKSP210,MXPA1#202002-202401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-K0010iKSP210,MXPA1#,MXPH14,17202401

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-K0020iMXPH10,15202002

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-K0020iKSP210,MXPA1#,MXPH14,17202401

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-K0010iKSP210,MXPA1#202002-202401

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iMXPH10,15202002

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-K0010iKSP210,MXPA1#202002-202401

67837ASEAL, FRONT DOOR VENT, RH

main67837-K0010iKSP210,MXPA1#202002-202401

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060iKSP210,MXPA1#,MXPH10,15202007

main67837-48050×6iKSP210,MXPA1#,MXPH1#202002-202006

67838ASEAL, FRONT DOOR VENT, LH

main67838-K0010iKSP210,MXPA1#202002-202401

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-K0010iKSP210,MXPA1#202002-202401

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-K0010iKSP210,MXPA1#202002-202401

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iMXPH10,15202002

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52350iKSP210,MXPA1#,MXPH14,17..U,X202401

main68101-K0040iMXPH10,15..HBDX202002

main68101-52320supersedes 68101-52310iMXPH10,15..HBDG,HBDZ202208

main68101-52370supersedes 68101-52360iKSP210,MXPA1#,MXPH14,17..G,Z202401

main68101-K0060supersedes 68101-K0050iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z202002-202207

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-52280iKSP210,MXPA1#,MXPH14,17..U,X202401

main68102-K0040iMXPH10,15..HBDX202002

main68102-52250supersedes 68102-52240iMXPH10,15..HBDG,HBDZ202208

main68102-52300supersedes 68102-52290iKSP210,MXPA1#,MXPH14,17..G,Z202401

main68102-K0060supersedes 68102-K0050iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z202002-202207

68141CRUN, FRONT DOOR GLASS, RH

main68141-K0010iKSP210,MXPA1#202002-202401

68151CRUN, FRONT DOOR GLASS, LH

main68151-K0010iMXPH10,15202002

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52260iKSP210,MXPA1#..G,X202002-202401

main68160-K0020iMXPA1#,MXPH1#..HBDZ,Z202002-202302

main68160-K0021iMXPA1#..Z202303-202401

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-K0010iMXPH10,15202002

main68171-K0011iKSP210,MXPA1#,MXPH14,17202401

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-K0010iKSP210,MXPA1#202002-202401

main68172-K0011iKSP210,MXPA1#,MXPH14,17202401

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52260iKSP210,MXPA1#..G,X202002-202401

main68210-K0020iMXPA1#,MXPH1#..HBDZ,Z202002-202302

main68210-K0021iMXPA1#,MXPH14,17..Z202401

68610BCHECK ASSY, FRONT DOOR, RH

main68610-K0010iKSP210,MXPA1#202002-202401

68620CHECK ASSY, FRONT DOOR, LH

main68610-K0010iKSP210,MXPA1#202002-202401

75921CTAPE, BLACK OUT, NO.1 RH

main75921-K0010iKSP210,MXPA1#202002-202401

75922MTAPE, BLACK OUT, NO.1 LH

main75922-K0010iKSP210,MXPA1#202002-202401

9010908295

main90109-08295

9011906983

main90119-06983

9011906984

main90119-06984

9017806023

main90178-06023

9018906130

main90189-06130

9046710188

main90467-10188

9054109124

main90541-09124

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095006105

main90950-06105

9167380616

main91673-80616

9356755020

main93567-55020

42 parts on this diagram · 3 diagrams in section
