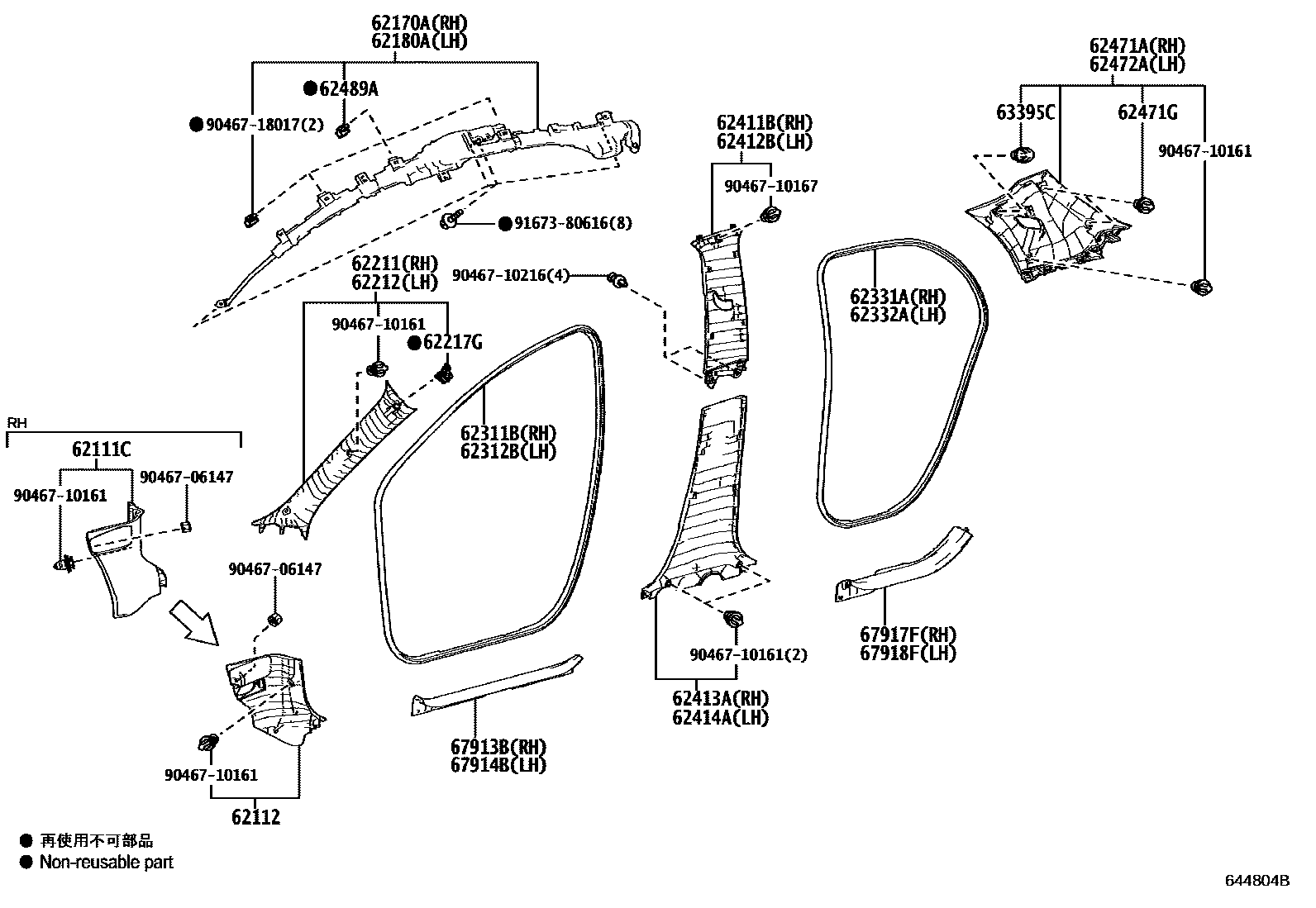

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-K0010-C0iMXPA1#..G202002-202401

BLACK,TRIM2#,4#

main62111-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#

main62111-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main62111-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

main62112-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62112-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main62112-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-K0010iKSP210,MXPA1#,MXPH14,17202002-202401

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-K0010iKSP210,MXPA1#,MXPH14,17202002-202401

62211GARNISH, FRONT PILLAR, RH

main62211-K0010-C0iMXPH10,15..HBDX202002-202401

BLACK,TRIM2#,4#

main62211-K0010-C0iKSP210,MXPA1#,MXPH14,17..U,X202401

BLACK,TRIM2#

main62211-K0020-C0iMXPA1#..G202002-202401

BLACK,TRIM1#,2#,4#

main62211-K0020-C0iKSP210..G202002-202401

BLACK,TRIM2#,4#

main62211-K0020-C0iKSP210..G202002-202401

BLACK,TRIM1#,2#

main62211-K0020-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

main62211-K0020-C0iKSP210,MXPA1#,MXPH14,17..G202401

62212GARNISH, FRONT PILLAR, LH

main62212-K0010-C0iKSP210,MXPA1#..X202002-202401

BLACK,TRIM2#,4#

main62212-K0010-C0iKSP210,MXPA1#,MXPH14,17..U,X202401

BLACK,TRIM2#

main62212-K0020-C0iMXPH10,15..HBDG202002-202401

BLACK,TRIM1#,2#,4#

main62212-K0020-C0iKSP210..G202002-202401

BLACK,TRIM2#,4#

main62212-K0020-C0iKSP210..G202002-202401

BLACK,TRIM1#,2#

main62212-K0020-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

main62212-K0020-C0iKSP210,MXPA1#,MXPH14,17..G202401

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iKSP210,MXPA1#,MXPH14,17202002-202401

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-K0010iMXPH10,15202002-202401

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-K0010iMXPH10,15202002-202401

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52170iKSP210,MXPA1#202205-202401

main62331-K0010iKSP210,MXPA1#,MXPH1#202002-202204

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52190iKSP210,MXPA1#202205-202401

main62332-K0010iKSP210,MXPA1#,MXPH1#202002-202204

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main62411-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM2#,4#

main62411-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62411-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-K0010-C0iMXPH10,15..HBDX202002-202401

BLACK,TRIM1#,2#,4#

main62412-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62412-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main62412-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62413-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main62413-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main62413-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main62414-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62414-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main62414-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main62471-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main62471-K0010-C0iMXPA1#..G202002-202401

BLACK,TRIM1#,2#

main62471-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main67771-28150iKSP210,MXPA1#202002-202401

62472AGARNISH, ROOF SIDE, INNER LH

main62472-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main62472-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main62472-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main62472-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-52010iKSP210,MXPA1#202002-202401

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150iKSP210,MXPA1#202002-202401

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main67913-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main67913-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main67913-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-K0010-C0iMXPH10,15..HBDG202002-202401

BLACK,TRIM1#,2#

main67914-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main67914-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main67914-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main67917-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main67917-K0010-C0iMXPA1#..G202002-202401

BLACK,TRIM1#,2#

main67917-K0010-C0iKSP210,MXPA1#..G202401

BLACK,TRIM2#

main67917-K0020-C0iMXPH14,17..U,X,Z202401

BLACK,TRIM2#

main67917-K0020-C0iMXPH10,15..HBDX202002

BLACK,TRIM2#,4#

main67917-K0020-C0iMXPH10,15..HBDX202002

BLACK,TRIM1#,2#

main67917-K0020-C0iMXPH10,15..HBDX202002

BLACK,TRIM1#,2#,4#

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM2#,4#

main67918-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main67918-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main67918-K0010-C0iKSP210,MXPA1#..G202401

BLACK,TRIM2#

main67918-K0020-C0iMXPH10,15..HBDG202002

BLACK,TRIM1#,2#,4#

main67918-K0020-C0iMXPH10,15..HBDX202002

BLACK,TRIM2#,4#

main67918-K0020-C0iMXPH10,15..HBDX202002

BLACK,TRIM1#,2#

main67918-K0020-C0iMXPH14,17..G202401

BLACK,TRIM2#

9046706147

main90467-06147

9046710161

main90467-10161

9046710167

main90467-10167

9046710216

main90467-10216

9046718017

main90467-18017

9167380616

main91673-80616

30 parts on this diagram · 1 diagram in section
