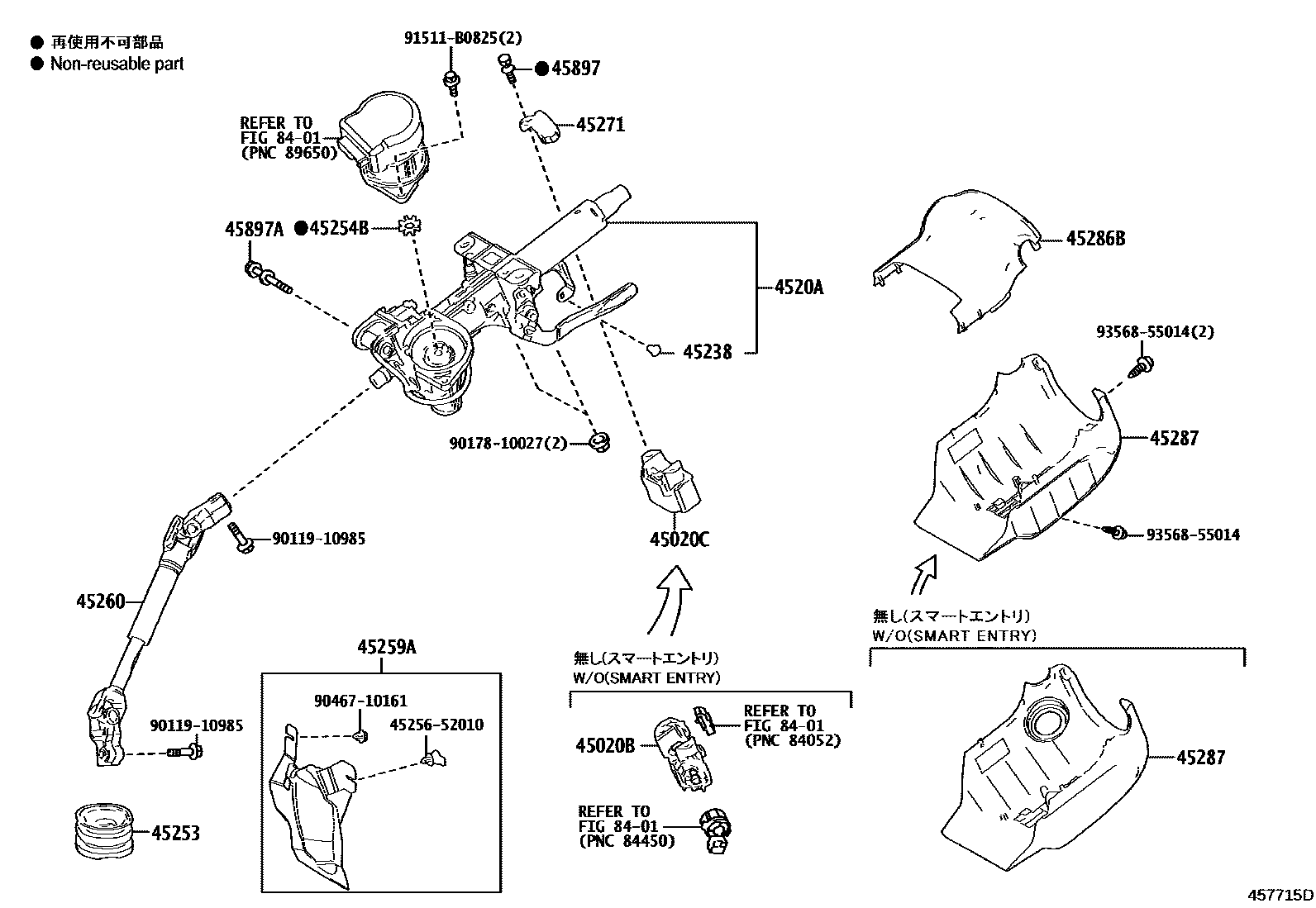

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-26270iMXPA10..6F..X202401

main45280-33180iKSP210,MXPA10,MXPH10..CVT..(HBDX,X)202002-202401

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010iKSP210,MXPA10..CVT..X; MXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z); MXPH10..HBDX202002-202208

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52340supersedes 4520A-52540iMXPA10..6F..X; MXPA15;KSP210,MXPA10..G,Z202002-202401

main4520A-52350iKSP210,MXPA10..X202002-202401

main4520A-52530iMXPA10..6F..(G,Z); MXPA10..6F..X202401

main4520A-52550supersedes 4520A-52540iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..CVT..(G,U,Z)202401

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMXPH10,15202002

45253COVER, STEERING COLUMN HOLE

main45253-K0010iMXPH10,15202002

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXPH10,15202002

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-K0010iKSP210,MXPA1#202002-202401

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-K0010iMXPH10,15202002

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXPA10..6F202401

45286BCOVER, STEERING COLUMN, UPR

main45286-52210-C1supersedes 45286-52220-C0iMXPH10,15..HBDG; MXPH10,15..HBDZ; MXPH10..HBDX; MXPH15..HBDX202208

main45286-52220-C0iKSP210,MXPA10..X202208-202401

BLACK,TRIM2#,4#

main45286-K0010-C0iKSP210,MXPA10..X; MXPA1#,MXPH1#..G,HBDG; MXPA1#,MXPH1#..HBDZ,Z; MXPA15..X;KSP210,MXPH15..G,HBDX; MXPH10..HBDX202002-202208

main45286-K0020-C0iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-52040-C1supersedes 45024-52130-C0iMXPH10,15..HBDG; MXPH10,15..HBDZ; MXPH10..HBDX; MXPH15..HBDX202208

main45024-52130-C0iKSP210,MXPA10..X202208-202401

BLACK,TRIM2#,4#

main45024-K0010-C0iKSP210,MXPA10..X; MXPA1#,MXPH1#..G,HBDG; MXPA1#,MXPH1#..HBDZ,Z; MXPA15..X;KSP210,MXPH15..G,HBDX; MXPH10..HBDX202002-202208

main45024-K0020-C0iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..CVT..(G,HBDG,HBDZ,Z)202002-202208

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMXPH10,15202002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4525652010PROTECTOR, COLUMN TUBE EDGE, NO.1

main45256-52010

9011910985

main90119-10985

9017810027

main90178-10027

9046710161

main90467-10161

91511B0825

main91511-B0825

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
