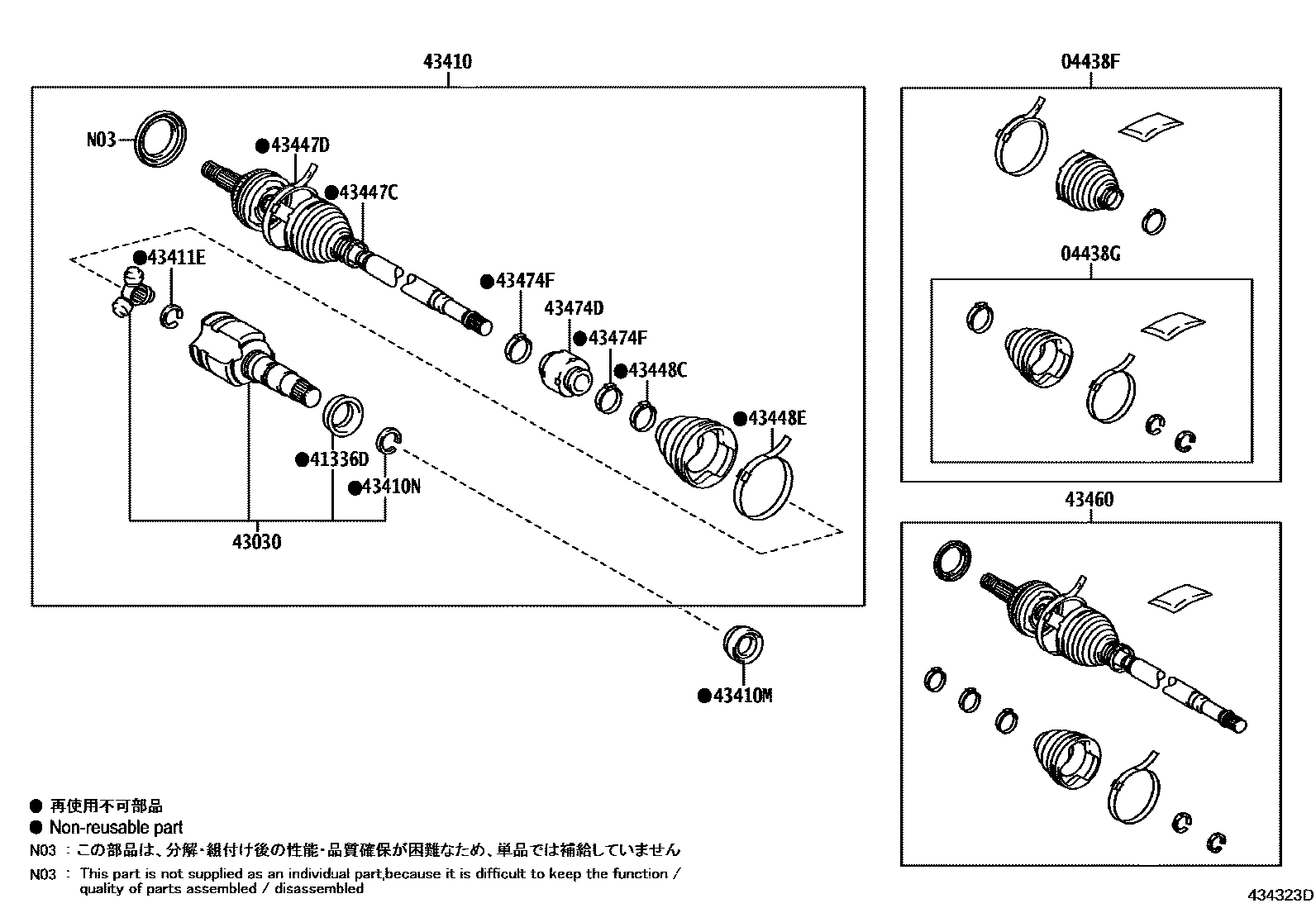

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-10020iMXPA10..6F202002-202401

main04427-K0050iMXPA10..CVT202107-202401

main04427-K0060iMXPA10..CVT202002-202107

main04427-K0072iKSP210202002-202401

main04427-K0081iMXPA15202003-202401

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10020iMXPA10..6F202002-202401

main04437-10030iMXPA15202003-202401

main04437-K0010iKSP210202002-202401

main04437-K0020iMXPH10,15202002-202107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iKSP210202002-202401

main41336-52020iMXPA15202003-202401

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-K0010iMXPA15202003-202401

main43040-K0010iMXPA10..6F202002-202401

main43040-K0020iMXPA10,MXPH14,17..CVT202002-202401

main43040-K0030iKSP210202002-202401

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52480iMXPA10..CVT202107-202401

main43410-K0080iMXPA10..6F202002-202401

main43410-K0090iMXPA10..CVT202002-202107

main43410-K0100iMXPA15202003-202401

main43410-K0110iKSP210202002-202401

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34047iKSP210202002-202401

main90311-35081iMXPA10..6F202002-202401

main90311-35083iMXPA10..CVT202002-202401

main90316-28003iMXPA15202003-202401

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iMXPA15202003-202401

main90521-26004iKSP210202002-202401

main90521-27005iMXPH10,15202002-202401

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iMXPA15;MXPA10..6F202002-202401

main43425-74010iKSP210202002-202401

main90520-22029iMXPH10,15202002-202401

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iMXPA10..6F202002-202401

main42345-52260iMXPA1#,MXPH14,17..CVT202002-202401

main42345-74040iKSP210202002-202401

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iMXPA10..6F202002-202401

main42345-52250iMXPA1#..CVT202002-202401

main42345-58120iKSP210202002-202401

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iMXPA15;MXPA10..6F202002-202401

main42345-48210iKSP210202002-202401

main42345-52340iMXPA10,MXPH14,17..CVT202310-202401

main42345-K0080iMXPA10,MXPH1#..CVT202002-202309

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iMXPA15;MXPA10..6F202002-202401

main42345-48200iKSP210202002-202401

main42345-K0091iMXPH10,15202002-202401

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-K9005iKSP210202002-202401

main43460-K9015iMXPA10..6F202002-202401

main43460-K9025iMXPH10,15202008-202107

main43460-K9035iMXPA10,MXPH1#..CVT202002-202007

main43460-K9045iMXPA10..CVT202107-202401

main43470-K9005iMXPA15202003-202401

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12160iMXPA15202003-202401

main43474-42030iMXPA10..6F202002-202401

main43474-52070iKSP210202002-202401

main43474-52110iMXPH14,17202002-202107

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iMXPA10..CVT202002-202401

main42345-52280iKSP210202002-202401

15 parts on this diagram · 7 diagrams in section
