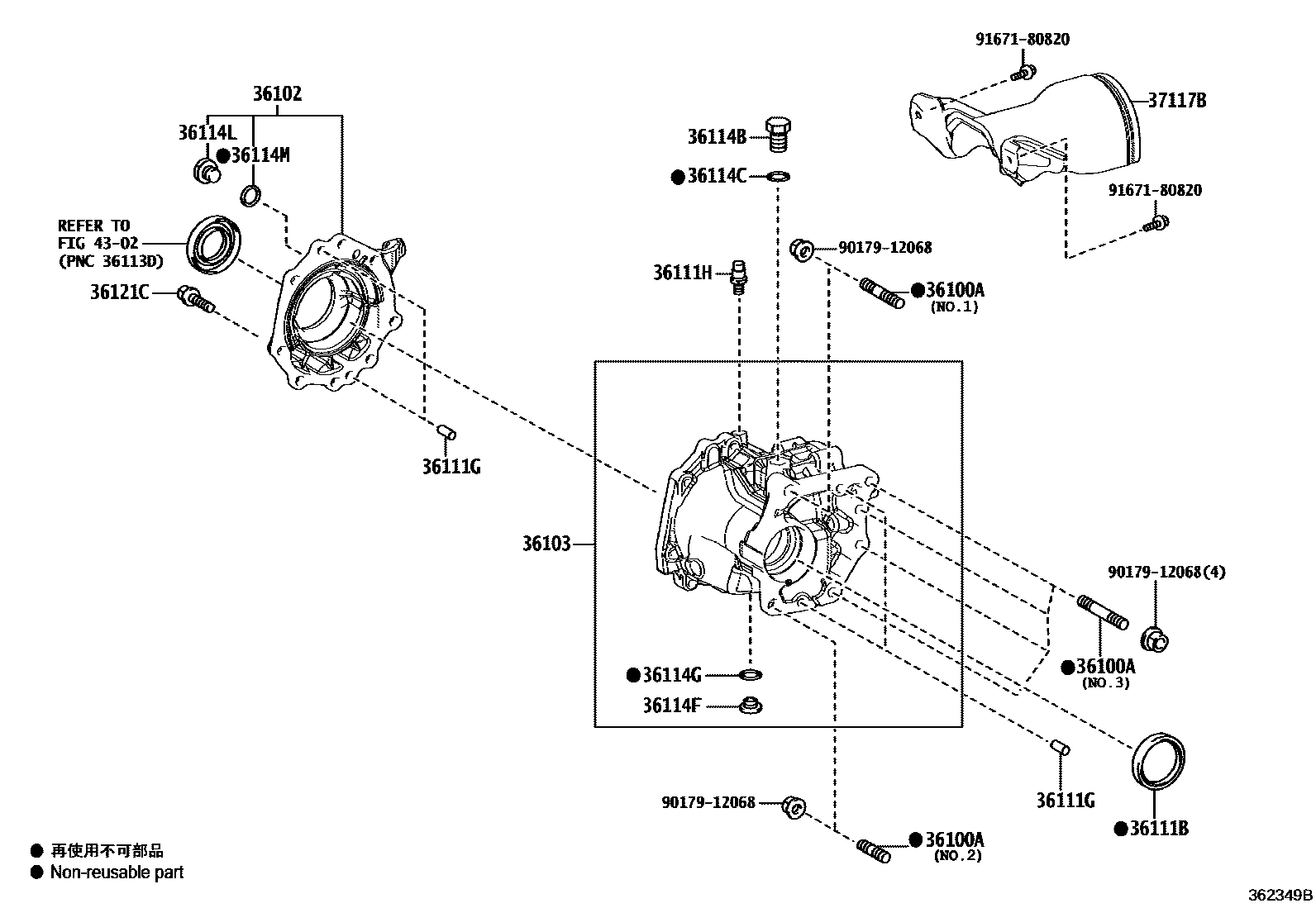

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iMXPA15202003-202401

main90116-12034iMXPA15202401

main90116-12041×4iMXPA15202003-202401

36102COVER SUB-ASSY, TRANSFER CASE

main36102-52010iMXPA15202003-202401

36103CASE SUB-ASSY, TRANSFER

main36103-52020iMXPA15202003-202401

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iMXPA15202003-202401

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iMXPA15202003-202401

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iMXPA15202003-202401

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iMXPA15202003-202401

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iMXPA15202003-202401

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iMXPA15202003-202401

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iMXPA15202003-202401

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iMXPA15202003-202401

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iMXPA15202003-202401

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iMXPA15202003-202401

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-K0010iMXPA15202003-202011

main37117-K0011iMXPA15202012-202401

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912068

main90179-12068

9167180820

main91671-80820

17 parts on this diagram · 1 diagram in section
