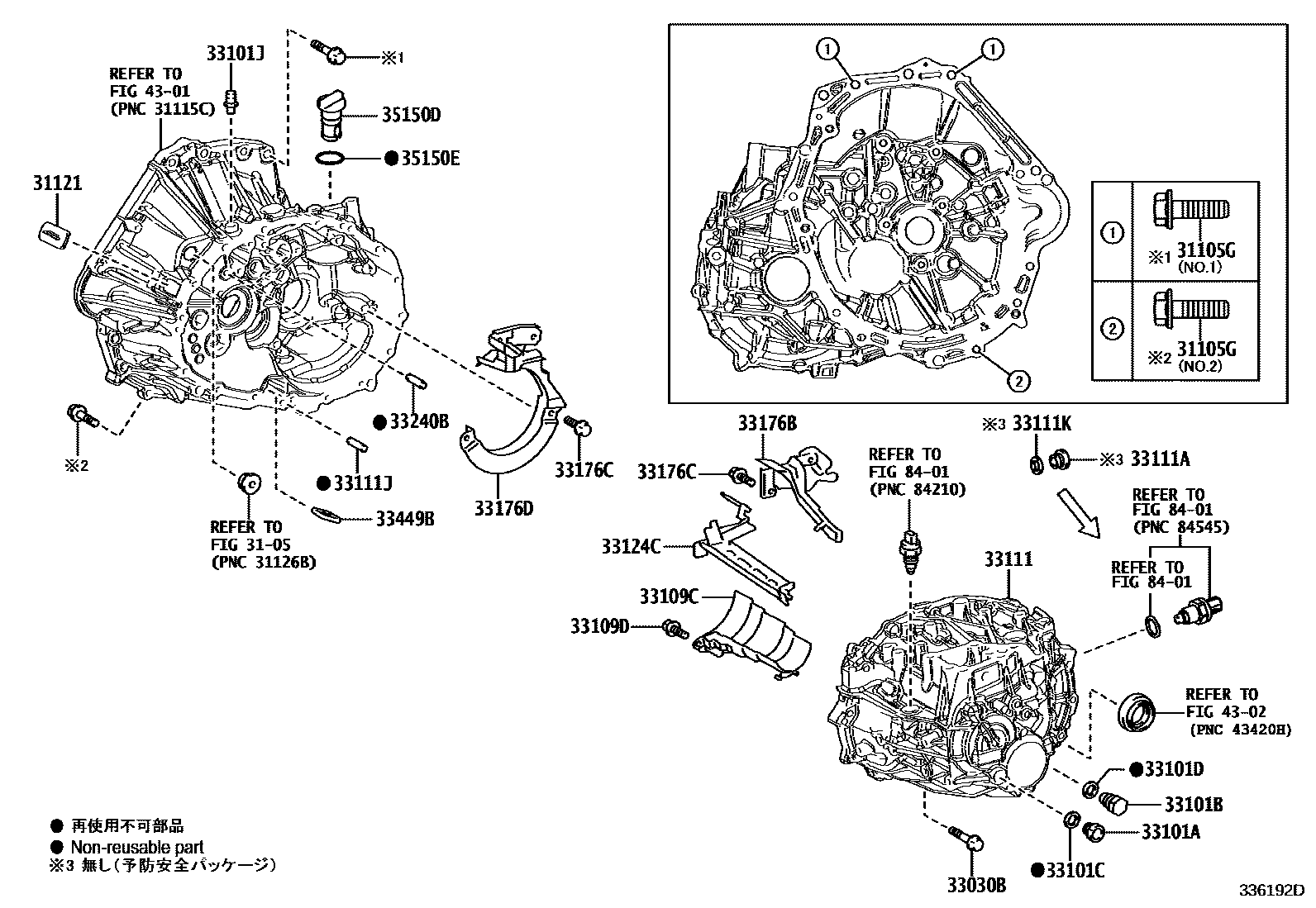

Toyota 231140 — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105CLUTCH RELEASE CYLINDER
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111KGASKET(FOR TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33449BMAGNET, TRANSMISSION
35150DPLUG ASSY, TRANSMISSION CASE
35150ERING, O (FOR TRANSMISSION CASE PLUG)
4301FRONT AXLE HOUSING & DIFFERENTIAL
4302FRONT DRIVE SHAFT
8401SWITCH & RELAY & COMPUTER
26 parts on this diagram · 1 diagram in section
CLUTCH HOUSING & TRANSMISSION CASE (MTM) for Toyota 231140
This section contains 26 genuine Toyota parts for the CLUTCH HOUSING & TRANSMISSION CASE (MTM) system of the Toyota 231140. Key components include: CLUTCH RELEASE CYLINDER, BOLT(FOR TRANSAXLE CASE & ENGINE SETTING), COVER, CLUTCH HOUSING, NO.1, BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING), PLUG(FOR MANUAL TRANSMISSION FILLER).
