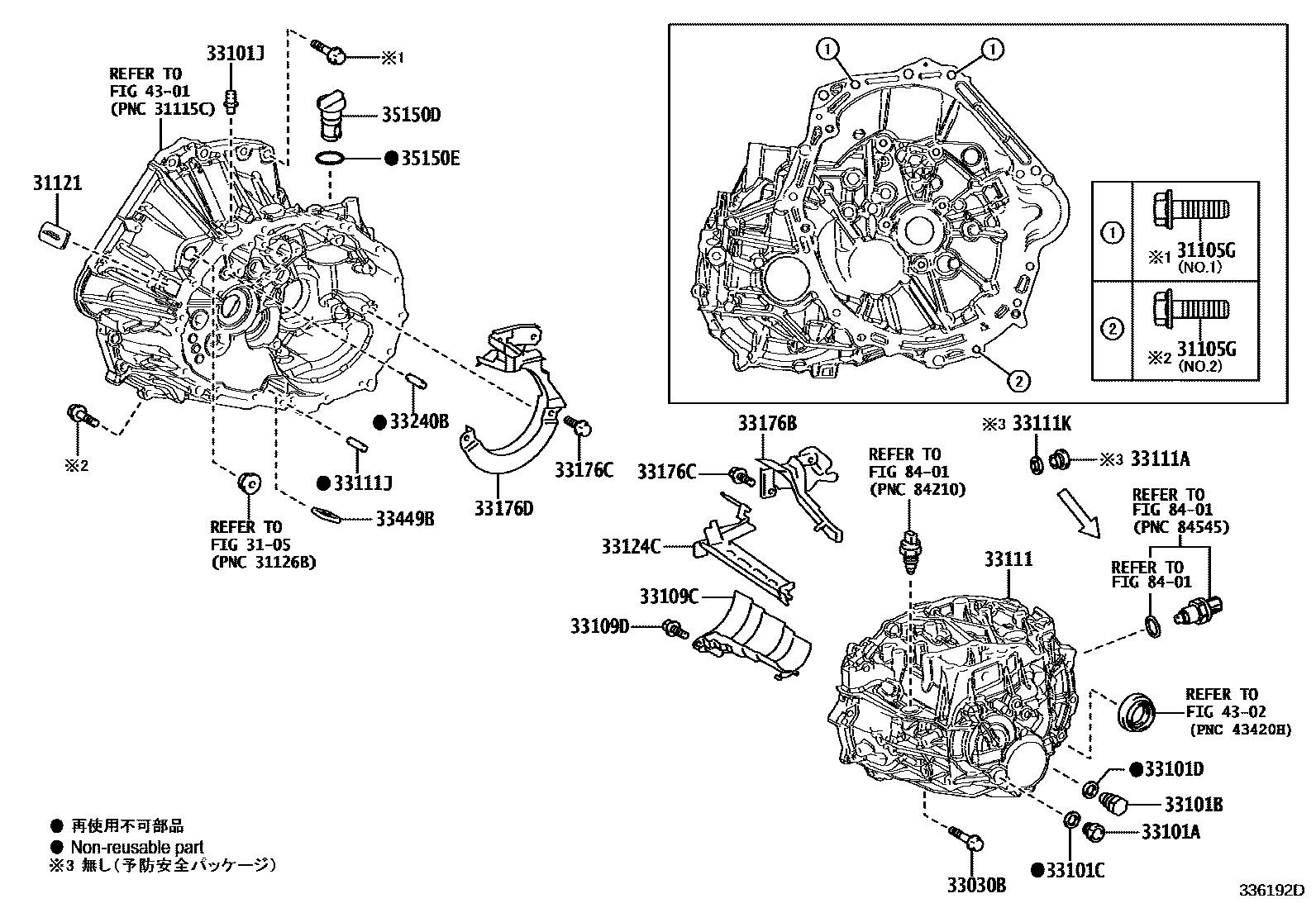

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10591×2iMXPA10..6F202002-202401

main91553-80830iMXPA10..6F202002-202401

31121COVER, CLUTCH HOUSING, NO.1

main31121-52080iMXPA10..6F202401

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840×16iMXPA10..6F202002-202401

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iMXPA10..6F202002-202401

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18085iMXPA10..6F202401

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iMXPA10..6F202002-202401

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main90430-18008iMXPA10..6F202002-202401

33101JPLUG, BREATHER

main90930-03133iMXPA10..6F202002-202401

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-K0020iMXPA10..6F202002-202401

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816×3iMXPA10..6F202002-202401

33111CASE, MANUAL TRANSMISSION

main33111-K0030iMXPA10..6F202002-202401

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iMXPA10..6F..X202002-202401

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×3iMXPA10..6F202002-202401

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iMXPA10..6F..X202002-202401

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-K0020iMXPA10..6F202002-202401

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-20080iMXPA10..6F202002-202401

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816×6iMXPA10..6F202002-202401

33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)

main33176-20090iMXPA10..6F202002-202401

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054×2iMXPA10..6F202002-202401

33449BMAGNET, TRANSMISSION

main33449-20010iMXPA10..6F202002-202401

35150DPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXPA10..6F202002-202401

35150ERING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXPA10..6F202002-202401

4301

4302

8401

26 parts on this diagram · 1 diagram in section
