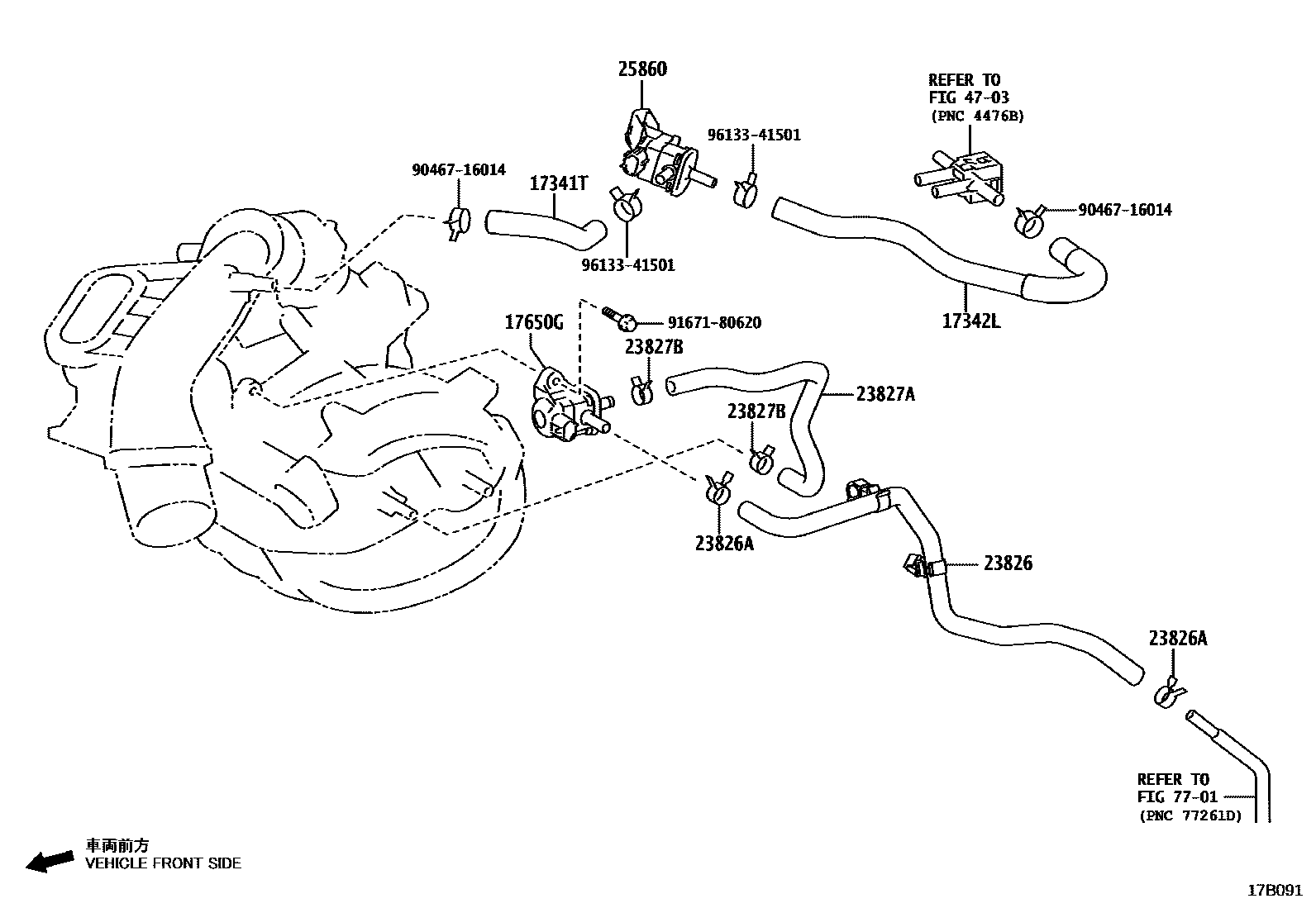

VACUUM PIPING

0001 1 0002 1 0003 1

17341THOSE, AIR, NO.1

main17341-40040i1KRFE..KSP210202401

17342LHOSE, AIR, NO.2

main17342-40030i1KRFE..KSP210202401

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12282i1KRFE..KSP210202002-202401

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-15010iM15AFKS..MXPA1#202002-202401

main23826-15020iM15AFXE..MXPH14,17202401

main23826-40060i1KRFE..KSP210202401

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-13005×2i1KRFE..KSP210202002-202401

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-40070i1KRFE..KSP210202002-202401

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96138-41501×2i1KRFE..KSP210202401

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-15040iM15AFKS..MXPA1#202002-202401

main25860-15050iM15AFXE..MXPH10,15202002

main25860-40020i1KRFE..KSP210202002-202401

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046716014

main90467-16014

9167180620

main91671-80620

9613341501

main96133-41501

13 parts on this diagram · 3 diagrams in section
