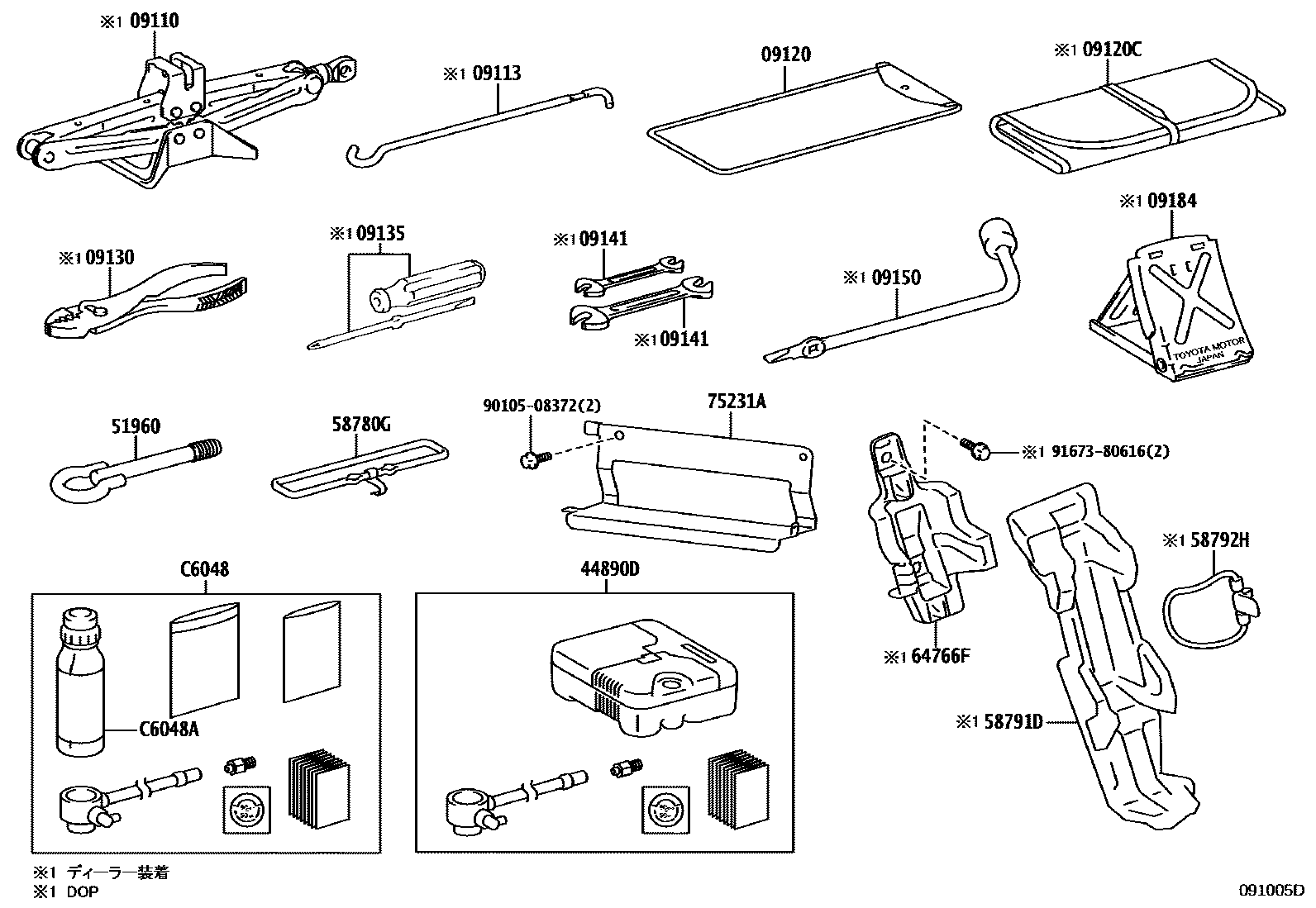

STANDARD TOOL

0001 1 0003 1

09110JACK ASSY

main09111-K0040

09113HANDLE, JACK

main09113-42030

09120BAG, TOOL

main09120-16030

main09120-37030

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-42010

09184STOPPER, WHEEL

main09184-00010

44890DCOMPRESSOR ASSY, AIR

main44890-K0010iKSP210,MXPA1#,MXPH1#202002-202108

sub44890-K0011

main44890-K0011iKSP210,MXPA1#202109-202401

51960HOOK ASSY, FRONT

main51960-10010iKSP210,MXPA1#202002-202401

58780GBAND ASSY, TOOL BOX

58791DCARRIER, JACK

58792HSUPPORT, JACK CARRIER

64766FBEZEL, JACK COVER, LOWER

75231ABOX, TOOL BAG

C6048REPAIR SET, TIRE

main42683-K0010iKSP210,MXPA1#202002-202401

C6048ASEALANT, REPAIR TIRE

mainC6048K0010iKSP210,MXPA1#202002-202401

9010508372

main90105-08372

9167380616

main91673-80616

20 parts on this diagram · 2 diagrams in section
