HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1GRMN 0009 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

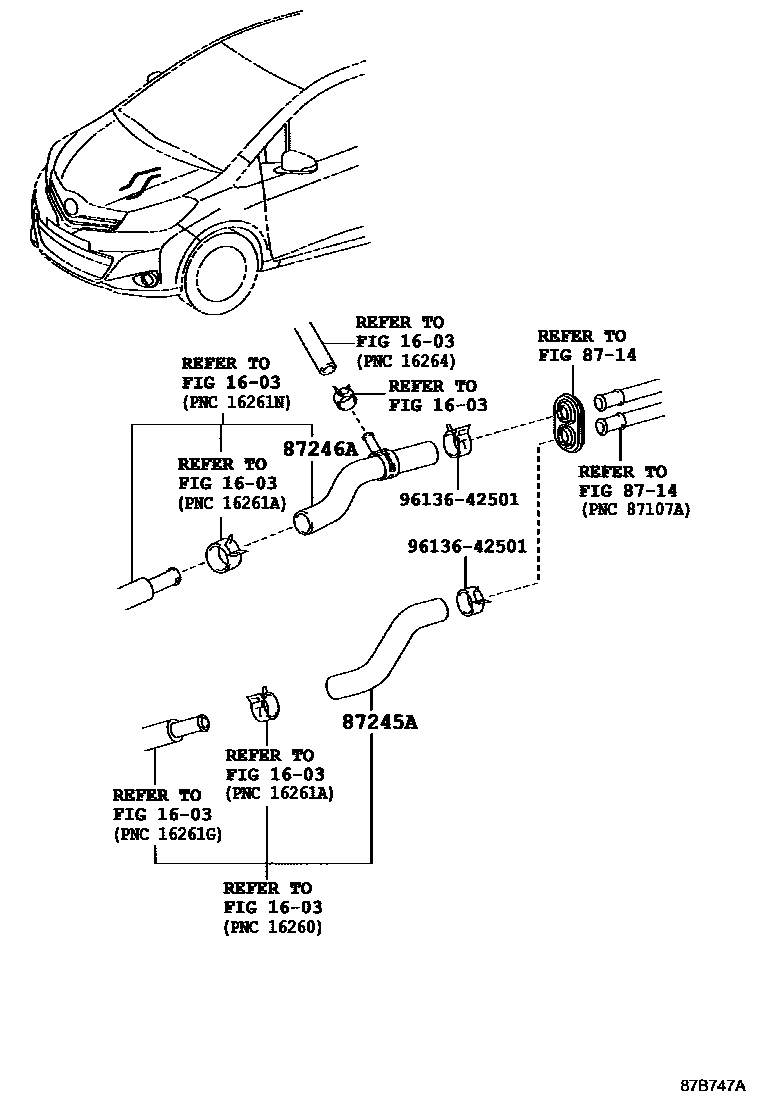

87245AHOSE, HEATER WATER, INLET A

main87209-52140iKSP130..CBU201012-201401

main87209-52141iKSP130..CBU201402-201404

main87209-52191iNCP131..CVT201012-201207

main87209-52192iNCP131..CVT201404-201701

main87245-52120iNCP131..5F201709

main87245-52220iNSP130..CBU201701

main87245-52200supersedes 87245-52120iNCP131..5F201309-201402

87246AHOSE, HEATER WATER, OUTLET A

main87209-52130iKSP130..CBU201012-201207

main87209-52131iKSP130..CBU201208-201404

main87245-52110iNCP131201709

main87245-52270iNHP130..CBU201701

main87245-52330iNSP130..CBU201701

9613642501

main96136-42501

5 parts on this diagram · 9 diagrams in section
