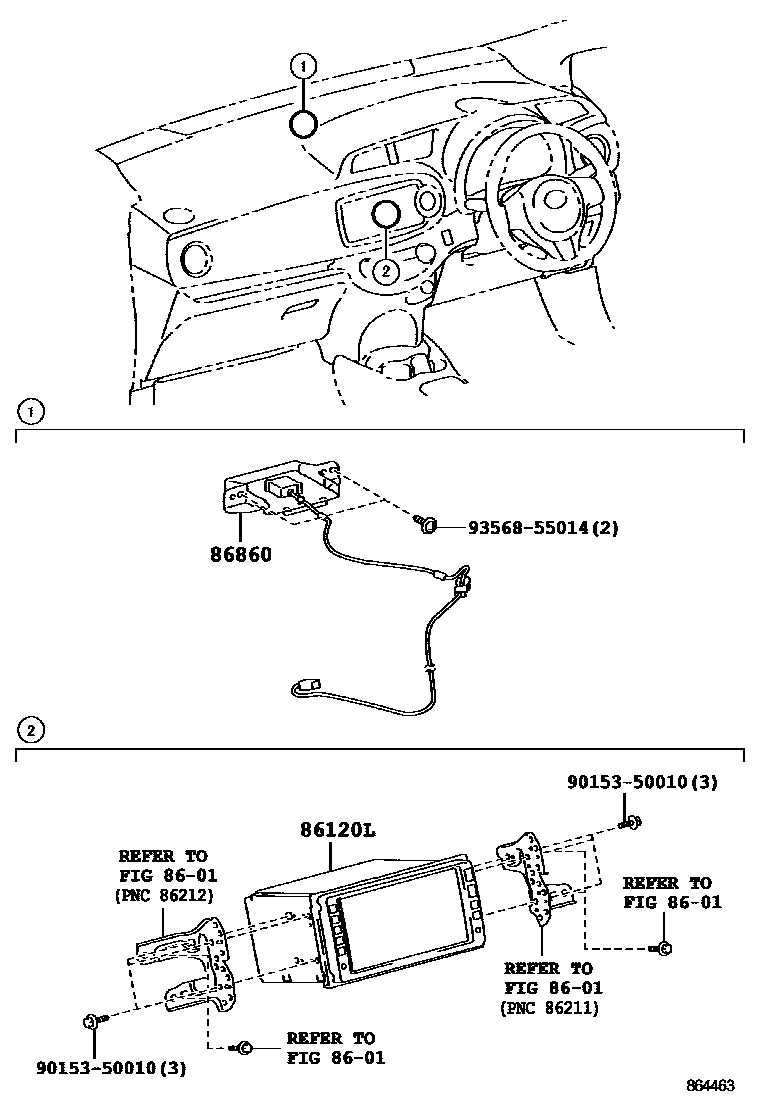

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-52190iKSP130,NCP131,NSP13#..CBU201012-201108

main86100-52191iKSP130,NCP131,NSP13#..CBU201109-201208

main86100-52192iKSP130,NCP131,NSP13#..CBU201209-201308

main86100-52193iKSP130,NCP131,NSP13#..CBU201309-201404

main86100-52270iKSP130,NCP131,NSP13#..CBU201108-201109

86860ANTENNA ASSY, NAVIGATION

main86860-52190iKSP130,NCP131,NSP13#..CBU201012-201404

9015350010

main90153-50010

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
