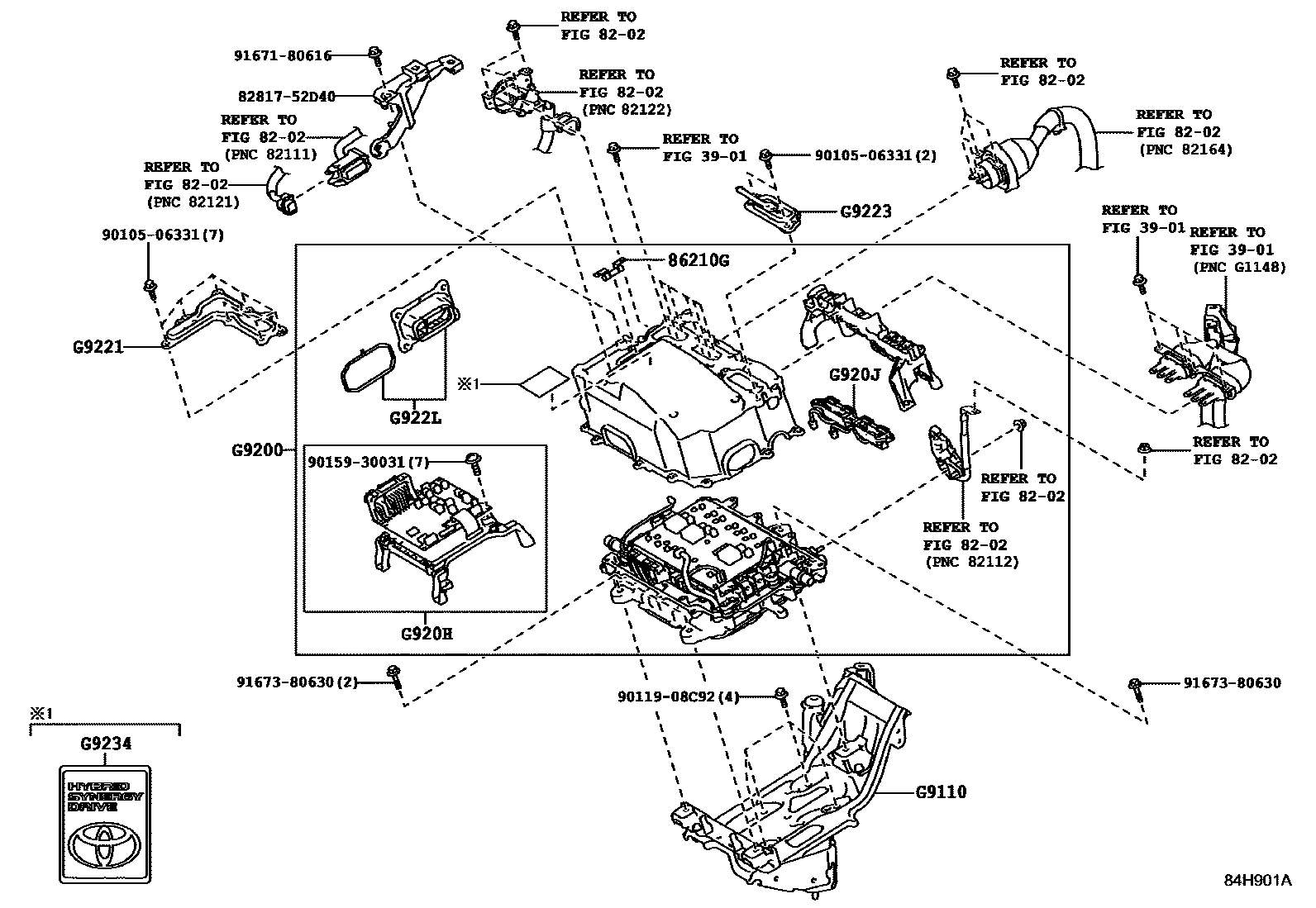

HEV INVERTER

0001 1������ASSY 0002 1KIT���� 0003 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iNHP130..CBU201701-202001

G9110BRACKET ASSY, INVERTER

mainG911052010iNHP130..CBU201701

G9200INVERTER ASSY, W/CONVERTER

mainG920059046iNHP130..CBU201701-201705

mainG920059047iNHP130..CBU201706

subG9200-59086

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H52031iNHP130..CBU201701-201705

mainG920H52032iNHP130..CBU201706

subG920H-52H01

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iNHP130..CBU201701-202001

G9221COVER, INVERTER

mainG922152010iNHP130..CBU201701

G9223COVER, INVERTER TERMINAL

mainG922352010iNHP130..CBU201701

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iNHP130..CBU201701

G9234PLATE, INVERTER NAME

mainG923F52010iNHP130..CBU201701

8281752D40PROTECTOR, WIRING HARNESS, NO.1

main82817-52D40

9010506331

main90105-06331

9011908C92

main90119-08C92

9015930031

main90159-30031

9167180616

main91671-80616

9167380630

main91673-80630

17 parts on this diagram · 3 diagrams in section
