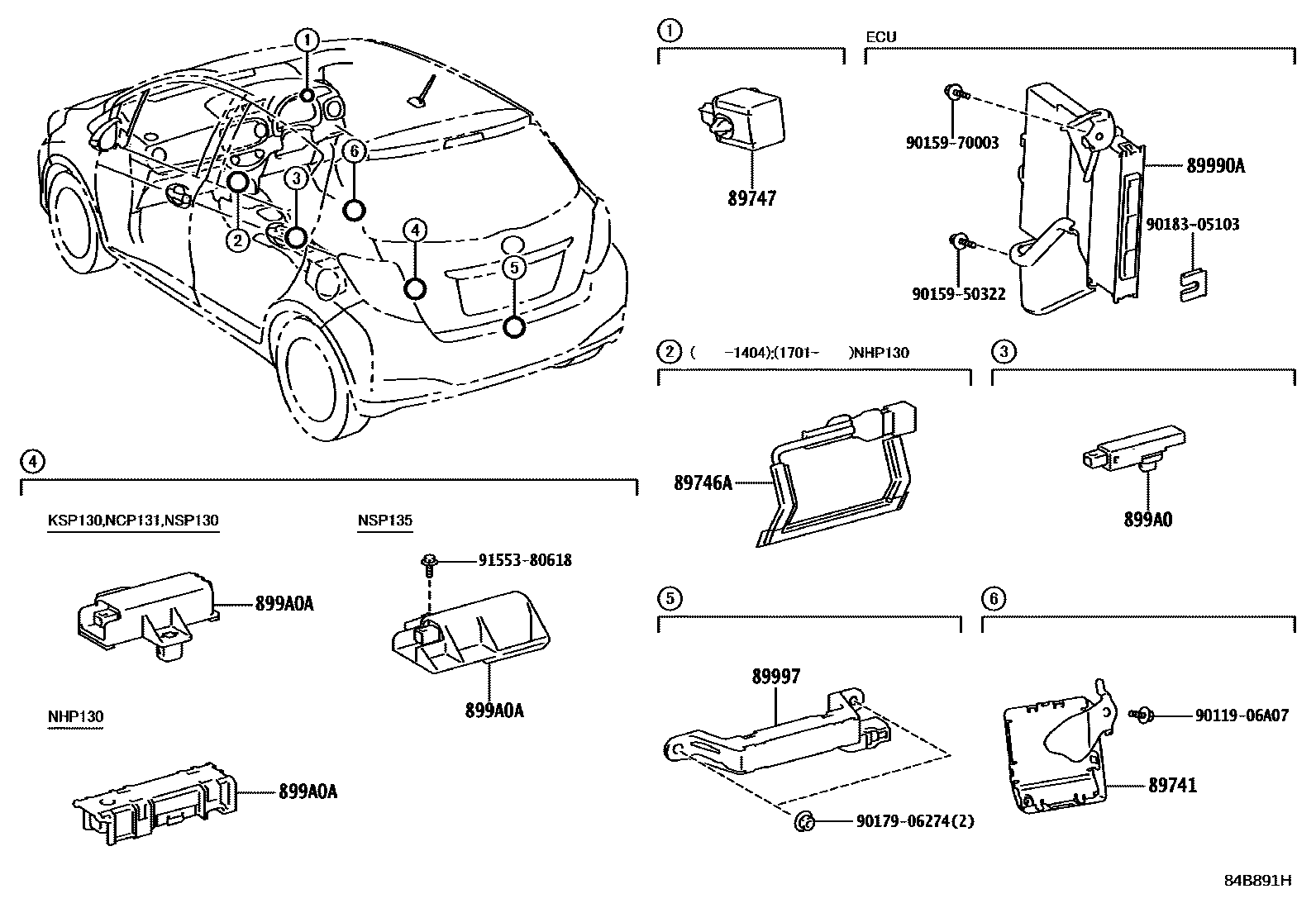

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-52210supersedes 89741-52490iKSP130,NHP130,NSP13#..(F,JEWL)..CBU; NCP131,NHP130,NSP13#..(GRS,U)..CBU201701-202001

main89741-52490iNCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU; NCP131..CVT..RS201012-201404

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-52100iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201012-201404

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201404-201701

89990ACOMPUTER ASSY, SMART KEY

main89990-52260iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201012-201107

main89990-52261iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201108-201404

main89990-52262iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU201404-201701

main89990-52263iKSP130,NSP13#..(F,JEWL)..CBU; NCP131,NSP13#..(GRS,U)..CBU; NSP13#..U..CBU201701-202001

main89990-52600iNHP130..GRS201709-202001

89997ANTENNA, ELECTRICAL KEY

main89997-30070iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU; NSP130..F..CBU201012-201404

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iNCP131,NSP13#..CVT..(RS,U)..CBU; NCP131..5F; NCP131..5F;KSP130,NSP13#..(F,JEWL)..CBU; NSP130..F..CBU201012-201404

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-52020iNCP131,NSP130..CVT..(RS,U)..CBU; NCP131..5F; NCP131..5F;KSP130,NSP130..(F,JEWL)..CBU; NSP130..F..CBU201012-201404

main899A0-52040iNSP135..(F,JEWL)..CBU; NSP135..U..CBU201404-201701

main899A0-52070iNHP130..(F,JEWL)..CBU; NHP130..GRS,U201701

9011906A07

main90119-06A07

9015950322

main90159-50322

9015970003

main90159-70003

9017906274

main90179-06274

9018305103

main90183-05103

9155380618

main91553-80618

13 parts on this diagram · 1 diagram in section
